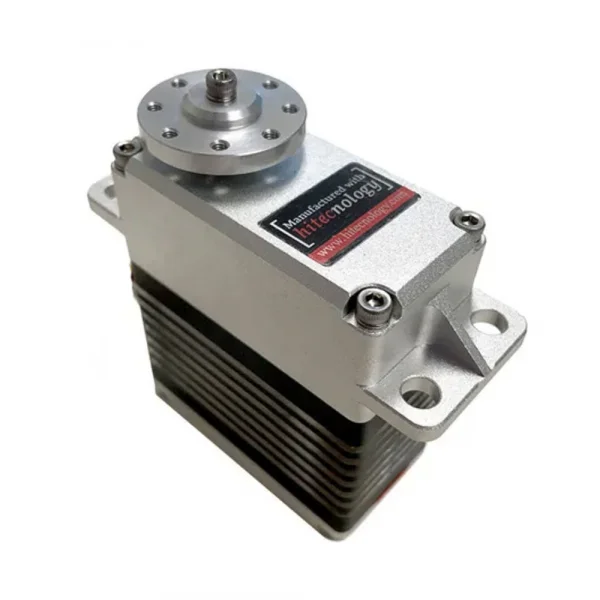

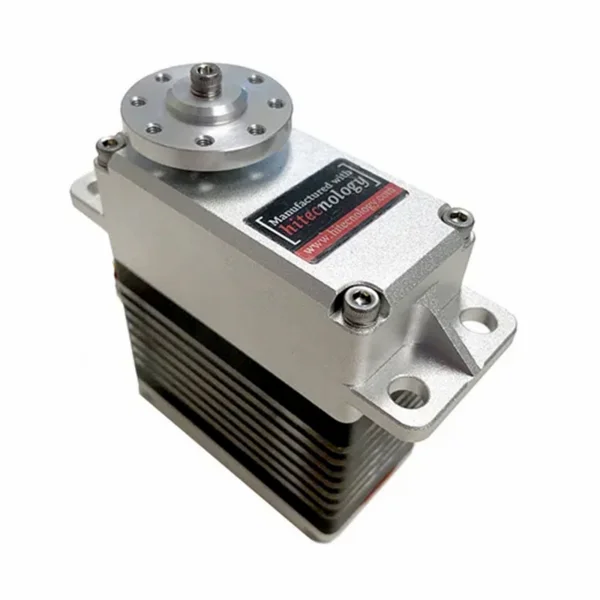

Hitec D1005SGT High Voltage Ultra Giant

The Hitec D1005SGT High Voltage Ultra Giant servo (part number 2222358) is engineered for durability and consistent control. A chromate plated aluminium case and steel geartrain with quad ball bearings provide a robust foundation, while the long-life (1M cycles) semi indirect potentiometer and industrial digital circuitry deliver reliable positioning. With 14.8V 2‑cell LiPo capability and a 5‑pole carbon brushed motor, this ultra giant unit is built to handle demanding motion control tasks. Splash and dust resistance add resilience in challenging environments.

The D1005SGT combines a non-programmable high response digital amplifier with MOSFET drive for smooth, authoritative actuation. Its construction and component selection focus on strength, precision feedback, and extended service life.

Key Features

• Long life (1M cycles) semi indirect potentiometer
• Non-programmable high response digital amplifier with MOSFET drive and industrial digital circuitry
• Durable chromate plated aluminium case
• Durable steel gears with quad ball bearing
• 14.8V 2-Cell LiPo capability
• 5-pole carbon brushed motor
• Splash and dust resistant

Tech Specs

• Weight: 310g / 10.935oz
• Shipping Weight: 0.50kg / 1.10lbs
• Product Height: 73mm / 2.87in
• Product Width: 33mm / 1.30in
• Product Length: 88mm / 3.46in
• Servo Size: Ultra Giant
• Colour: Silver
• Material: Aluminium
