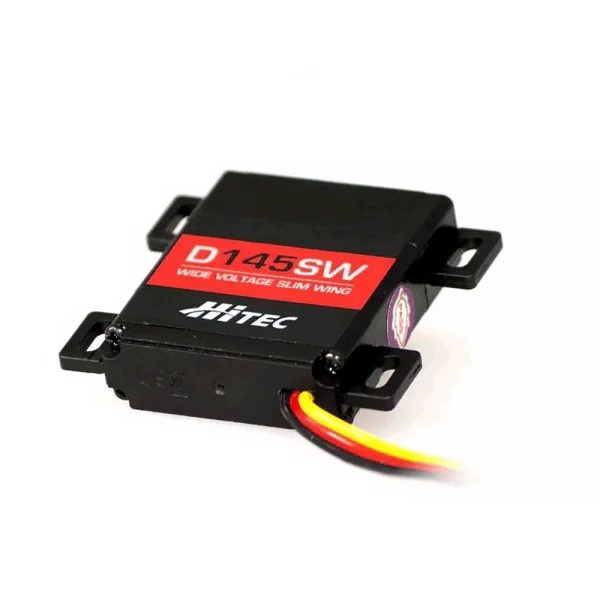

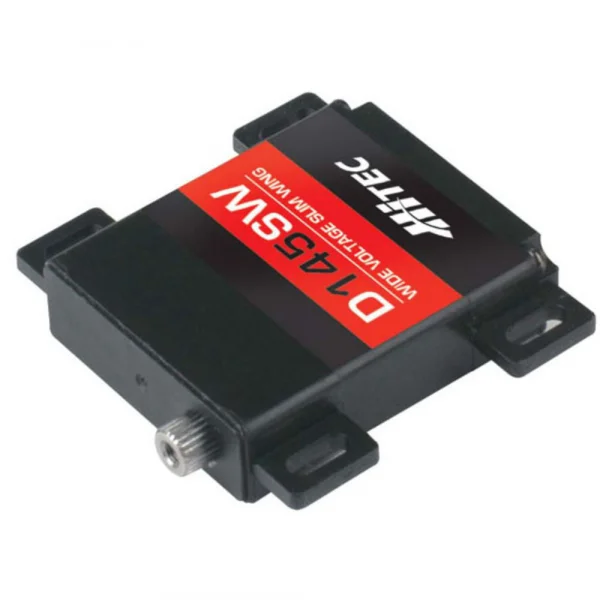

Hitec D145SW Wide Voltage Slim Wing Servo
Brand: Hitec
Part No: 2221260
Shadow Stock: Usually ships next day
The Hitec D145SW Wide Voltage Slim Wing Servo (part 2221260) is a premium, low‑profile digital servo designed for precise control and long service life. Its 10mm slim case suits tight wing installations and suggested applications such as low‑profile glider wings, while a steel gear train and twin ball‑raced output shaft deliver smooth, durable performance. With a wide 4.8–7.4V operating range, it can be powered directly from a 2S LiPo.
Key Features
- Programmable digital servo with MOS‑FET amplifier
- 32‑bit MCU and 12‑bit ADC for ultra‑fine resolution and response
- Steel gears and twin ball‑raced output shaft
- Wide voltage range (4.8–7.4V); 2S LiPo capable
- Slim 10mm profile for space‑restricted wing installs
- High‑resolution Hitec D‑Series performance
Specifications
- Weight: 24g
- Speed: 0.21s/60° @ 4.8V; 0.17s/60° @ 6.0V; 0.14s/60° @ 7.4V
- Torque: 4.0kg·cm @ 4.8V; 5.0kg·cm @ 6.0V; 6.0kg·cm @ 7.4V

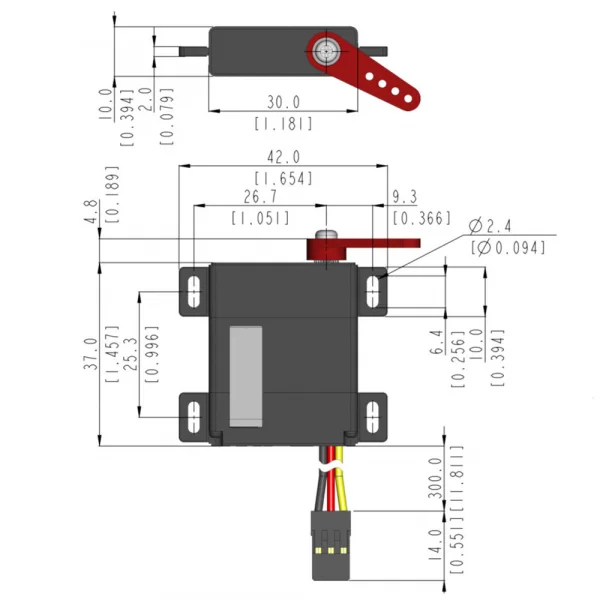

- Size: 37 × 30 × 10mm
- Operating voltage: 4.8–7.4V
- Servo size: Slim Wing
Secured by Stripe
A premium digital servo that puts an emphasis on precision and longevity. Boasting a capable 6.0kg of torque at 7.2V this svelte high resolution D-Series marvel is perfect for low profile glider wings, not least because of its ultra-fine response and programming advantages, the latter made possible by 32-bit MCU and 12-bit ADC technology. Offering a wide voltage range (4.8 - 7.4V) the D145SW can be powered direct from a 2S LiPo and adds to a tough steel transmission and twin ball-raced output shaft to an already impressive armoury of features.
Specification:
| Weight (g): | 24 |
| Speed at 4.8V (secs / 60deg): | 0.21 |
| Speed at 6.0V (secs / 60deg): | 0.17 |
| Speed at 7.4V (secs / 60deg): | 0.14 |
| Torque at 4.8V (kg.cm): | 4.0 |
| Torque at 6.0V (secs / 60deg): | 5.0 |
| Torque at 7.4V (kg.cm): | 6.0 |
| Size (mm): | 37 x 30 x 10 |
| Voltage (V): | 4.8 / 6.0 / 7.2 |
Hitec D145SW Wide Voltage Slim Wing Servo Tech Specs:
Hitec D145SW Wide Voltage Slim Wing Servo Key Features:
- A premium digital servo that puts an emphasis on precision and longevity. Boasting a capable 6.0kg of torque at 7.2V this svelte high resolution D-Series marvel is perfect for low profile glider wings, not least because of its ultra-fine response and programming advantages, the latter made possible by 32-bit MCU and 12-bit ADC technology. Offering a wide voltage range (4.8 - 7.4V) the D145SW can be powered direct from a 2S LiPo and adds to a tough steel transmission and twin ball-raced output shaft to an already impressive armoury of features.
Specification:
Weight (g): 24 Speed at 4.8V (secs / 60deg): 0.21 Speed at 6.0V (secs / 60deg): 0.17 Speed at 7.4V (secs / 60deg): 0.14 Torque at 4.8V (kg.cm): 4.0 Torque at 6.0V (secs / 60deg): 5.0 Torque at 7.4V (kg.cm): 6.0 Size (mm): 37 x 30 x 10 Voltage (V): 4.8 / 6.0 / 7.2 - Programmable.
- 10mm deep.
- Wide voltage range (4.8 - 7.4V).
- Twin ball raced output shaft.
- Steel gears.
- Digital MOS-FET-Amplifier.
- 32-bit MCU.
- 12-bit ADC.
Hitec D145SW Wide Voltage Slim Wing Servo Tech Specs:
- Weight: 24g / 0.84oz
- Shipping Weight: 0.07kg / 0.15lbs
- Product Height: 10mm / .39in
- Product Width: 30mm / 1.18in
- Product Length: 37mm / 1.45in
- Application: Array
- Servo Size: Slim Wing
Key Info:
- Brand: Hitec
- Part No: 2221260
- Barcode: 0669962361453
