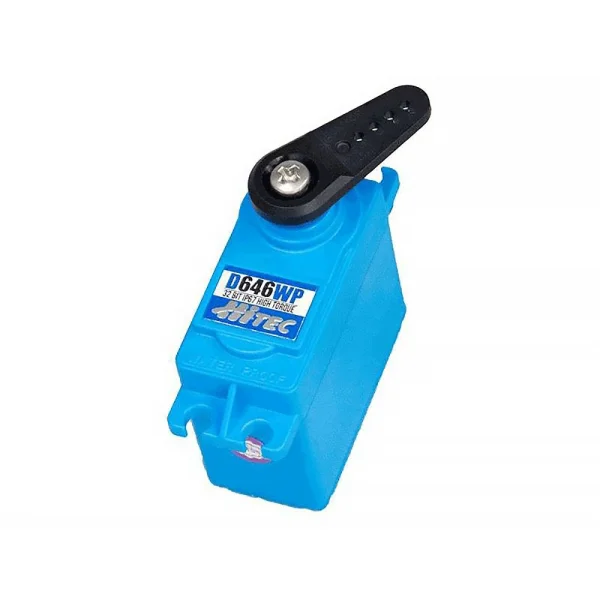

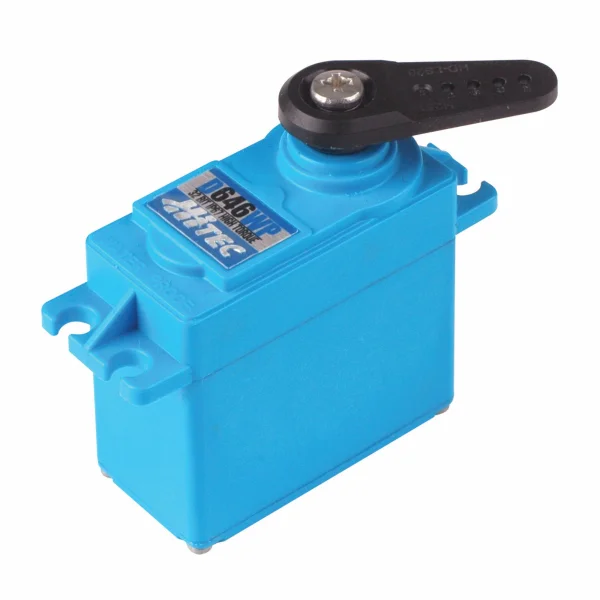

Hitec D646WP Wide Voltage Waterproof Servo
Brand: Hitec
Part No: 2221280
Shadow Stock: Usually ships next day
The Hitec D646WP Wide Voltage Waterproof Servo (part 2221280) brings D-Series precision and reliability to wet and demanding environments. This standard-size, programmable servo delivers smooth response across a wide 4.8–7.4V range, making it a strong choice for control surfaces and steering where consistent performance matters.
Powered by a 32-bit MCU and 12-bit ADC with Smart Sense technology, the D646WP offers accurate positioning and dependable feel, while its 25-tooth spline provides secure horn fitment.
Key Features
- Waterproof D-Series servo
- Programmable, wide voltage operation (4.8–7.4V)
- 32-bit MCU and 12-bit ADC
- Smart Sense technology
- 25-tooth output spline
- Standard-size form factor
Specifications
- Speed: 0.24s/60° @ 4.8V; 0.19s/60° @ 6.0V; 0.16s/60° @ 7.4V
- Torque: 7.5kg.cm @ 4.8V; 9.6kg.cm @ 6.0V; 11.6kg.cm @ 7.4V

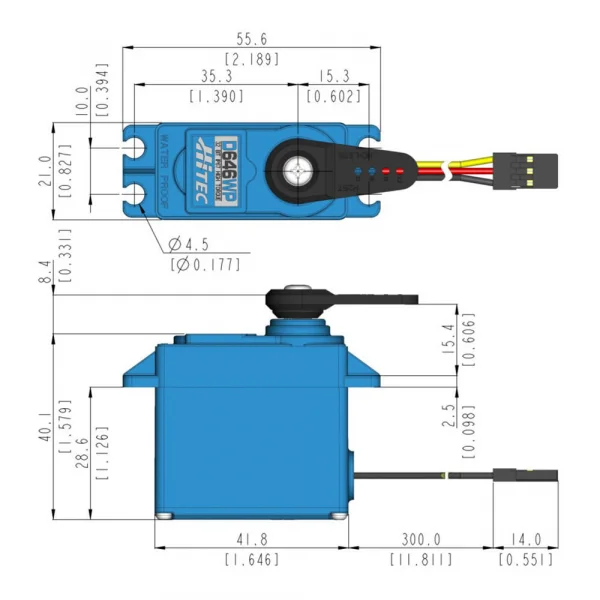

- Dimensions: 42 x 21 x 40mm
- Operating voltage: 4.8 / 6.0 / 7.4V
Suggested Compatibility
- R/C boats
- Flying boats
- General R/C vehicles
Secured by Stripe
Hitecs tradition of continuous technological development continues with the new D Series. Faster and more precise than ever before these wide voltage programmable servos will answer any number of your control system needs.
In addition to the obvious nautical application, waterproof servos have a lot going for them, not least in flying boats or R/C vehicles. There are many reasons to give serious consideration to the new waterproof D646WP for not only does it have all the smooth, responsive, wide voltage qualities of the D-Series, it has gills.
Specification:
| Weight (g): | 61 |
| Speed at 4.8V (secs / 60deg): | 0.24 |
| Speed at 6.0V (secs / 60deg): | 0.19 |
| Speed at 7.4V (secs / 60deg): | 0.16 |
| Torque at 4.8V (kg.cm): | 7.5 |
| Torque at 6.0V (secs / 60deg): | 9.6 |
| Torque at 7.4V (kg.cm): | 11.6 |
| Size (mm): | 42.0 x 21.0 x 40.0 |
| Voltage (V): | 4.8 / 6.0 / 7.4 |
Hitec D646WP Wide Voltage Waterproof Servo Tech Specs:
Hitec D646WP Wide Voltage Waterproof Servo Key Features:
- Hitecs tradition of continuous technological development continues with the new D Series. Faster and more precise than ever before these wide voltage programmable servos will answer any number of your control system needs.
In addition to the obvious nautical application, waterproof servos have a lot going for them, not least in flying boats or R/C vehicles. There are many reasons to give serious consideration to the new waterproof D646WP for not only does it have all the smooth, responsive, wide voltage qualities of the D-Series, it has gills.Specification:
Weight (g): 61 Speed at 4.8V (secs / 60deg): 0.24 Speed at 6.0V (secs / 60deg): 0.19 Speed at 7.4V (secs / 60deg): 0.16 Torque at 4.8V (kg.cm): 7.5 Torque at 6.0V (secs / 60deg): 9.6 Torque at 7.4V (kg.cm): 11.6 Size (mm): 42.0 x 21.0 x 40.0 Voltage (V): 4.8 / 6.0 / 7.4 - Programmable
- Wide voltage range (4.8 - 7.4V)
- Waterproof
- 32-bit MCU
- 12-bit ADC
- 25-tooth spline
- Smart sense technology
Hitec D646WP Wide Voltage Waterproof Servo Tech Specs:
- Weight: 58g / 2.05oz
- Shipping Weight: 0.11kg / 0.24lbs
- Product Height: 40mm / 1.57in
- Product Width: 21mm / .83in
- Product Length: 42mm / 1.65in
- Servo Size: Standard
Key Info:
- Brand: Hitec
- Part No: 2221280
- Barcode: 669962366465
