Hitec DB961WP Waterproof, High Torque, Metal case Servo
Brand: Hitec
Part No: 2221303
In Stock: Usually ships same day
The Hitec DB961WP Waterproof, High Torque, Metal Case Servo (part no. 2221303) is a premium, brushless unit from Hitec’s D series, built for performance and durability. Its black anodised metal case, steel gears, dual ball bearings and hardened steel output shaft combine to deliver exceptional strength and reliability, while an advanced 32-bit CPU with 4096 resolution provides rapid, high-precision control and extensive programmability.
Rated to IP67, the DB961WP is engineered to operate confidently in challenging environments. A wide 4.8–7.4V operating range and a 25-tooth output spline add flexibility across builds that demand dependable torque and smooth response.
Key Features
- IP67-rated waterproof construction with black anodised full metal case
- Brushless motor with durable steel gears and hardened steel output shaft
- 32-bit CPU and 4096-step resolution for fast, high-precision response
- Programmable performance and protection settings
- Dual ball-raced output shaft and 25T output spline
- Wide operating voltage: 4.8–7.4V DC
Programmable Functions
- End point and direction
- Fail-safe and dead band
- Speed reduction and soft start
- Overload protection
Performance Specifications
- Speed at 6.0V: 0.18 sec
- Speed at 7.4V: 0.15 sec
- Torque at 6.0V: 55 kg.cm
- Torque at 7.4V: 55 kg.cm
- Spline: 25 teeth
- Input voltage: 4.8–7.4V

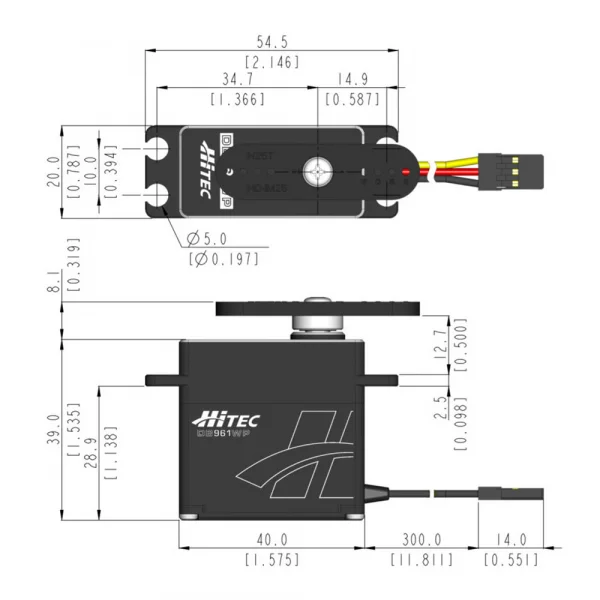

Dimensions & Weight
- Size: Standard
- Length: 40mm
- Width: 20mm
- Height: 39mm
- Weight: 90g
Suggested Compatibility
- Aircraft
- Boats
- 1/10 to 1/4-scale cars
Secured by Stripe
This IP-67-rated waterproof, brushless servo is suitable or all types of R/C model including, aircraft, boats and 1/10 to 1/4-scale cars. Sporting a black anodised metal case it's also a precision-engineered thing of beauty that, commensurate with Hitec s entire 'D series, is powered by a 32-bit CPU offering rapid, high resolution response, unprecedented programmability and a wide voltage capability. It's a combination that delivers leading-edge performance for all your radio control needs. The DB961WP is tough too. With incredibly durable steel gears, dual ball bearings and a hardened steel output shaft, it offers mighty torque and the reliability to keep you flying, driving and sailing in even the most hostile environment.
Specification:
| Speed at 6.0V (sec): | 0.18 |
| Speed at 7.4V (sec): | 0.15 |
| Torque at 6.0V (kg.cm): | 55 |
| Torque at 7.4V (kg.cm): | 55 |
| Spline (teeth): | 25 |
| Input Voltage (V): | 4.8 to 7.4 |
Hitec DB961WP Waterproof, High Torque, Metal case Servo Tech Specs:
Hitec DB961WP Waterproof, High Torque, Metal case Servo Key Features:
- This IP-67-rated waterproof, brushless servo is suitable or all types of R/C model including, aircraft, boats and 1/10 to 1/4-scale cars. Sporting a black anodised metal case it's also a precision-engineered thing of beauty that, commensurate with Hitec s entire 'D series, is powered by a 32-bit CPU offering rapid, high resolution response, unprecedented programmability and a wide voltage capability. It's a combination that delivers leading-edge performance for all your radio control needs. The DB961WP is tough too. With incredibly durable steel gears, dual ball bearings and a hardened steel output shaft, it offers mighty torque and the reliability to keep you flying, driving and sailing in even the most hostile environment.
Specification:
Speed at 6.0V (sec): 0.18 Speed at 7.4V (sec): 0.15 Torque at 6.0V (kg.cm): 55 Torque at 7.4V (kg.cm): 55 Spline (teeth): 25 Input Voltage (V): 4.8 to 7.4 - 32-bit CPU.
- 4096 resolution.
- Programmable.
- Wide operating voltage (4.8 - 7.4 volts DC).
- Dual ball raced output shaft.
- Brushless motor.
- Full metal black anodised case.
- 25 tooth output spline.
- Waterproof to IP-67 specification.
- End Point programming.
- Direction programming.
- Fail-safe programming.
- Dead band programming.
- Speed reduction programming.
- Soft start programming.
- Overload protection programming.
Hitec DB961WP Waterproof, High Torque, Metal case Servo Tech Specs:
- Weight: 90g / 3.17oz
- Shipping Weight: 0.15kg / 0.34lbs
- Product Height: 39mm / 1.54in
- Product Width: 20mm / 0.79in
- Product Length: 40mm / 1.57in
- Servo Size: Standard
Key Info:
- Brand: Hitec
- Part No: 2221303
- Barcode: 669962369619
