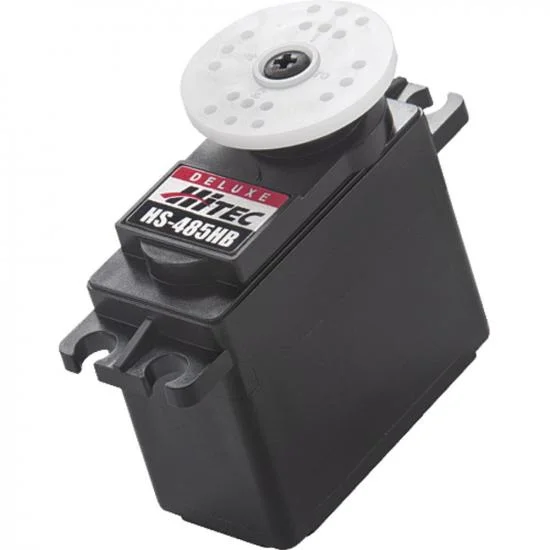

Hitec HS485HB Std Servo Deluxe Dual BB

Brand: Hitec

Part No: 2213270

£20.69 ~~RRP £22.99~~

In Stock: Usually ships same day

Collect Instore

Request Price Match Ask a Question Write a Review

The Hitec HS-485HB (HS485HB) standard-size servo, part 2213270, updates the popular HS-475HB with more torque and speed. A top ball bearing, heavy-duty Karbonite gears and high-performance circuitry deliver reliable centring and smooth resolution for general RC applications.

Key Features & Specs

Motor type: 3-pole
Gears: Karbonite
Bearing: Top ball bearing
Speed (4.8V/6.0V): 0.20 / 0.17 sec @ 60°
Torque (kg·cm, 4.8V/6.0V): 5.2 / 6.4 (72 / 89 oz-in)
Size (mm): 39.88 x 19.81 x 37.85
Weight: 45.08 g

Suggested Compatibility

Helicopters and aircraft up to 72" or up to 12 lb when using one servo per control surface.

Notes

High-vibration petrol (gas) engines with large control surfaces/throws can overstress Karbonite gears; metal-geared servos are recommended in those cases.
Do not use thread locker on Karbonite-geared servos.

Free Shipping

On UK Orders over £100

Happy to Help

Helpful, friendly advice

28 Day Returns

Easy returns process

Secure Payments

Secured by Stripe

Motor Type - 3 Pole

Bearing Type - Top Ball Bearing

Speed (4.8V/6.0V) - 0.20 / 0.17 sec @ 60 deg.

Torque kg./cm. (4.8V/6.0V) - 5.2 / 6.4

Size in Millimetres - 39.88 x 19.81 x 37.85

Weight grams - 45.08

Gears - Karbonite

The HS-485HB updates the very popular HS-475HB by adding more torque and greater speed. With its top ball bearing, heavy duty, high impact Karbonite gears and high performance circuitry, the HS-485HB offers lots of torque and features excellent centering and resolution.

*See Karbonite Guidelines Below

Features

Applications: Heli's and Aircraft up to 72 or up to 12lbs when using just one servo per control surface.

Note: Be aware that high vibration gas (not glow) engines combined with large contol surfaces and large thows (3D models) can put undue strain on the gears. Metal geared servos are recommended for these applications even if under 12lbs.

Warning: Do not use thread lockers on Karbonite geared servo as it will cause the output shaft to fail.

Specifications

Motor Type:	3 Pole
Bearing Type:	Top Ball Bearing
Speed (4.8V/6.0V):	0.20 / 0.17 sec @ 60 deg.
Torque oz./in. (4.8V/6.0V):	72 / 89
Torque kg./cm. (4.8V/6.0V):	5.2 / 6.4
Size in Inches:	1.57 x 0.78 x 1.49
Size in Millimeters:	39.88 x 19.81 x 37.85
Weight ounces:	1.59
Weight grams:	45.08

Key Info:

Brand: Hitec
Part No: 2213270
Barcode: 669962334853
