Hitec HS5485HB Digital Hi Torque HD Gears Dual BB
Brand: Hitec
Part No: 2217580
Shadow Stock: Usually ships next day
The Hitec HS5485HB Digital Hi Torque HD Gears Dual BB (part 2217580) is a dependable digital servo featuring Hitec’s Karbonite gear technology and a programmable digital circuit. With a 3‑pole motor and ball bearing support on the top output, it delivers smooth operation and long-wearing performance in a compact form factor.
Key Features
- Programmable digital circuit
- Karbonite gear train offering up to four times the strength of standard nylon gears
- Top ball bearing and 3‑pole motor
Specifications
- Speed (4.8V/6.0V): 0.20 / 0.17 s per 60°
- Torque (4.8V/6.0V): 5.2 / 6.4 kg·cm (72 / 89 oz·in)
- Dimensions: 39.88 x 19.81 x 37.85 mm
- Weight: 45.08 g
- Gears: Karbonite
- Bearing: Top ball bearing
- Motor Type: 3‑pole
Suggested Compatibility
- Helis and aircraft up to 72” or up to 12 lb when using one servo per control surface
- Sport aeroplanes up to .60 size
Notes & Warnings
- High‑vibration gas engines with large control surfaces and 3D throws can strain gears; metal‑geared servos are recommended in these setups
- Do not use thread locker on Karbonite geared servos; it may cause output shaft failure
Secured by Stripe
- Motor Type - 3 Pole
- Bearing Type - Top Ball Bearing
- Speed (4.8V/6.0V) - 0.20 / 0.17 sec @ 60 deg.
- Torque kg./cm. (4.8V/6.0V) - 5.2 / 6.4
- Size in Millimetres - 39.88 x 19.81 x 37.85
- Weight grams - 45.08
- Gears - Karbonite
The HS-5485HB is Hitec’s lowest price digital servo and is an excellent choice for sport airplanes up to .60 size. Featuring a programmable digital circuit and our Karbonite™ gear technology that offers four times the strength as our standard nylon gears and after hundreds of thousands of cycles won’t show any signs of wear.
*See Karbonite guidelines below
Applications: Heli's and Aircraft up to 72” or up to 12lbs when using just one servo per control surface.
Note: Be aware that high vibration gas (not glow) engines combined with large control surfaces and large throws (3D models) can put undue strain on the gears. Metal geared servos are recommended for these applications even if under 12lbs.
Warning: Do not use thread lockers on Karbonite geared servo as it will cause the output shaft to fail.
| Motor Type: | 3 Pole |
| Bearing Type: | Top Ball Bearing |
| Speed (4.8V/6.0V): | 0.20 / 0.17 |
| Torque oz./in. (4.8V/6.0V): | 72 / 89 |
| Torque kg./cm. (4.8V/6.0V): | 5.2 / 6.4 |

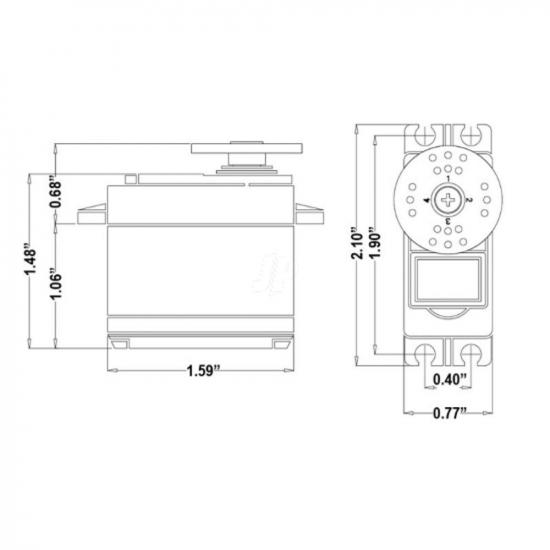

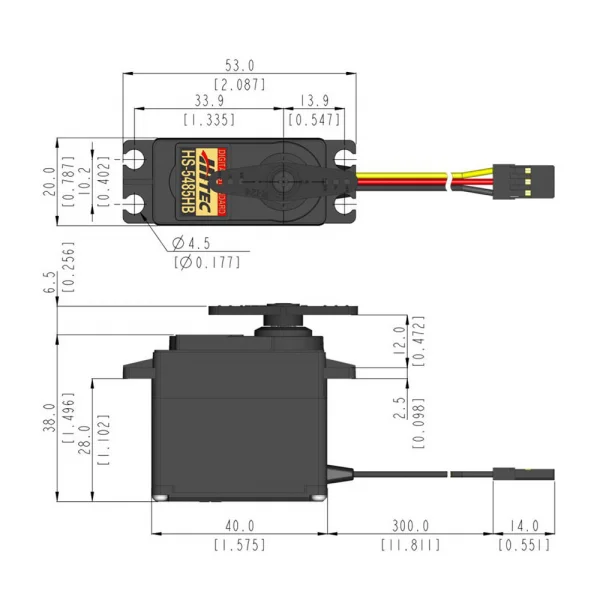

| Size in Inches: | 1.57 x 0.78 x 1.49 |
| Size in Millimeters: | 39.88 x 19.81 x 37.85 |
| Weight ounces: | 1.59 |
| Weight grams: | 45.08 |
Key Info:
- Brand: Hitec
- Part No: 2217580
- Barcode: 669962354851
