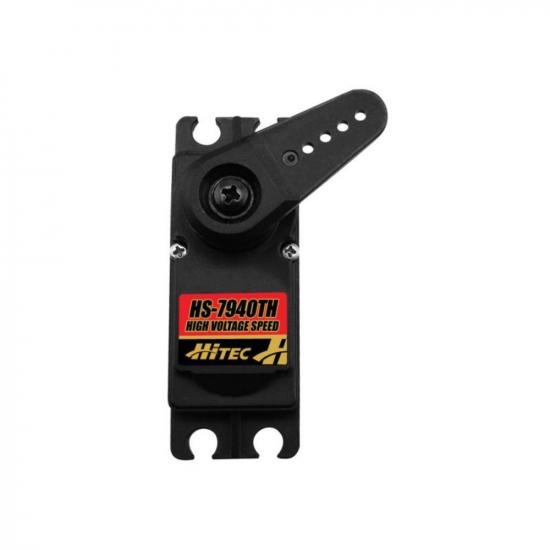

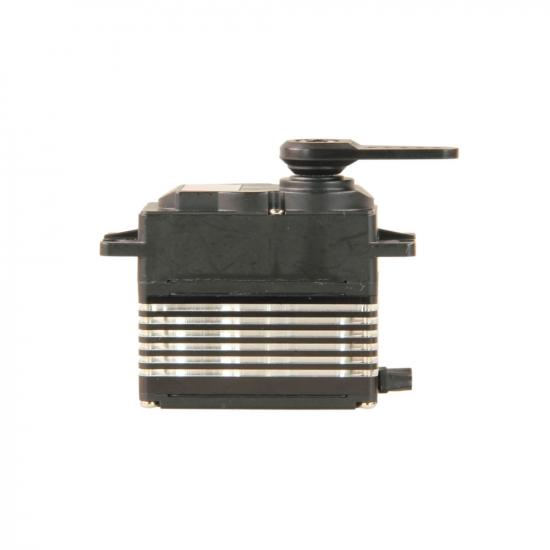

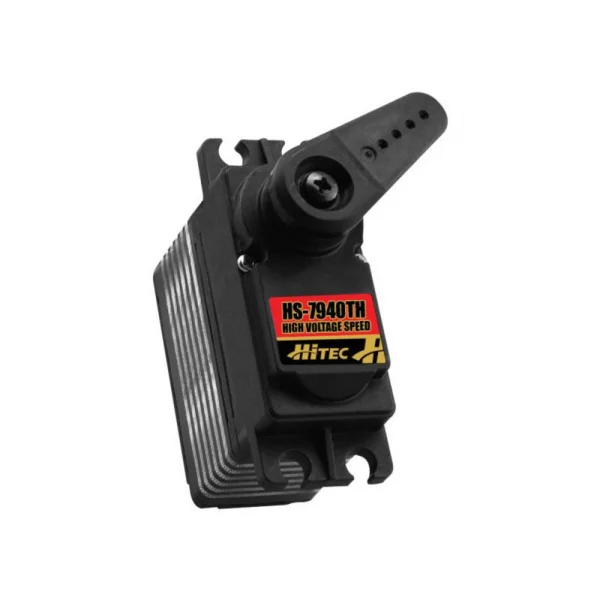

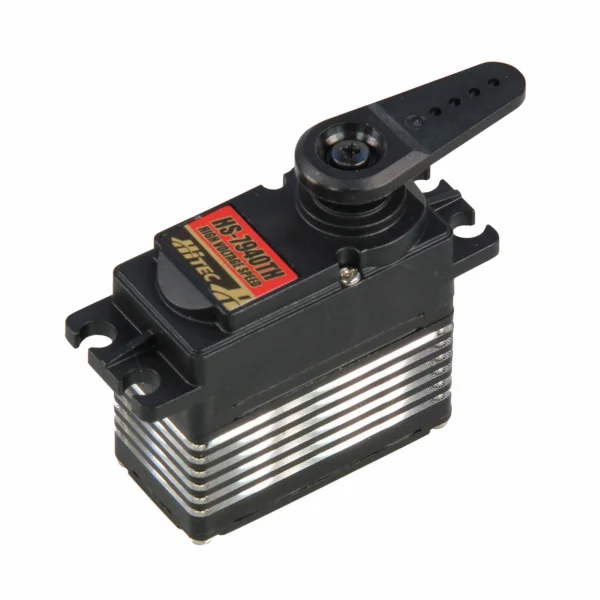

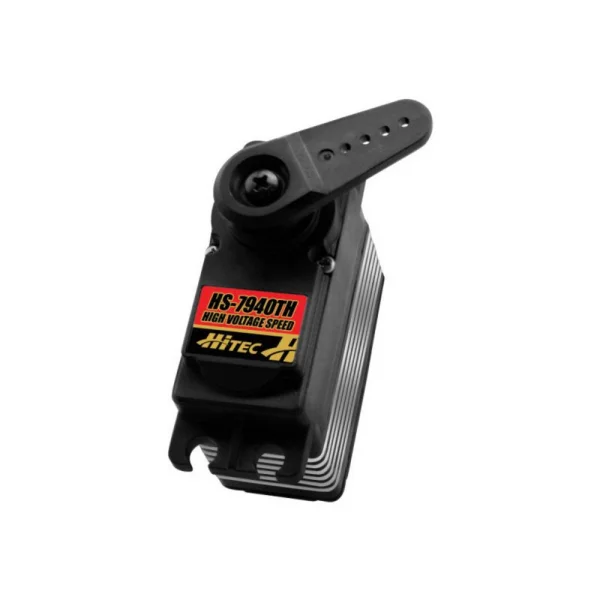

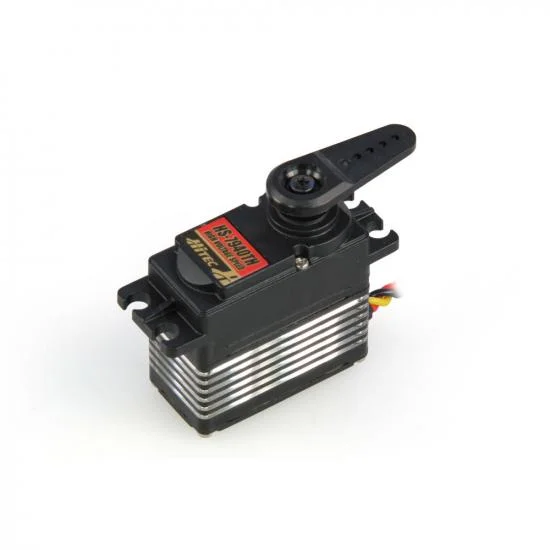

Hitec HS7940th G2 Premium HV Ultra High Speed 7.4v
Brand: Hitec
Part No: 2220510
Out Of Stock
Request Stock NotificationThe Hitec HS-7940TH G2 Premium HV Ultra High Speed 7.4V servo (part number 2220510) is Hitec’s fastest standard-size option, designed to run on a 2S LiPo pack. It combines a high-resolution G2 programmable digital circuit with a robust titanium gear train for performance and durability. A 7.4V-optimised coreless motor, integrated heat-sink case, and hardened steel gear pins supported by axial brass bushings deliver smooth, responsive control with excellent longevity.
Engineered for applications where speed and response are critical, the HS-7940TH offers a blistering transit time of 0.07 sec while maintaining a respectable 181 oz/in of torque at 6.0V. It is well suited to high-performance nitro and electric helicopters, aircraft, cars, and trucks.
Key Features
- G2 high-resolution programmable digital circuit
- Titanium gear train (MK first gear)
- Ultra-performance coreless motor, optimised for 7.4V
- Integrated heat-sink case
- Dual ball bearing supported output shaft
- Eight O-rings for water, dust and fuel protection
- Designed to operate on a two-cell LiPo pack (7.4V)
- Transit time: 0.07 sec; torque: 181 oz/in at 6.0V
Programmable Features
- Dead band width
- Direction of rotation
- Speed of rotation (slower)
- End points
- Neutral points
- Fail safe on/off
- Fail safe point
- Resolution* (default high resolution)
- Overload protection* (default off)
*Resolution and Overload Protection are programmable with Hitec HFP-20, HPP-20 or HPP-21 programmers.
Technical Specifications
- Servo size: Standard
- Weight: 65 g (2.29 oz)

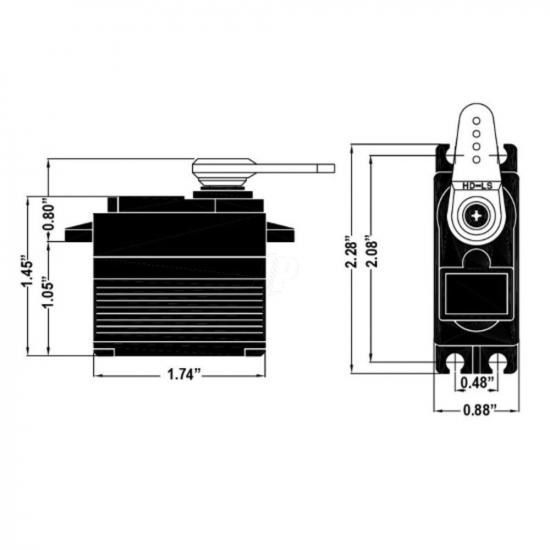

- Dimensions (L x W x H): 40 x 20 x 38 mm
- Shipping weight (approx.): 0.13 kg (0.29 lb)
- Part number: 2220510
Secured by Stripe
Hitec's fastest standard size servo the 'Ultra Speed' HS-7940TH is designed to operate on a two cell LiPo Pack. Featuring our high resolution 'G2' second generation programmable digital circuit and our indestructible Titanium gears, The HS-7940TH has the performance and durability you've come to expect from a Hitec servo. Other features in the HS-7040TH include a 7.4V optimized coreless motor, integrated heat sink case, and a top case with two hardened steel gear pins supported by axial brass bushing.
The HS-7940TH has been designed for applications where speed and response are demanded. Perfect for High Performance Nitro and Electric Helicopters, Aircraft, Cars, and Trucks. Featuring a blistering transit time of .07 sec, but still maintaining a respectable 181 oz./in. of torque at 6.0 volts.
Programmable Features Include:- - Dead Band Width
- - Direction of Rotation
- - Speed of Rotation (slower)
- - End Points
- Neutral Points
- Fail Safe On/Off
- Fail Safe Point
- Resolution* (default is high resolution)
- - Overload Protection* (default is off)
*These features are only programmable with the HFP-20, HPP-20 or HPP-21 programmers.
Hitec HS7940th G2 Premium Hv Ultra High Speed 7.4v Key Features:
Hitec's fastest standard size servo the 'Ultra Speed' HS-7940TH is designed to operate on a two cell LiPo Pack. Featuring our high resolution 'G2' second generation programmable digital circuit and our indestructible Titanium gears, The HS-7940TH has the performance and durability you've come to expect from a Hitec servo. Other features in the HS-7040TH include a 7.4V optimized coreless motor, integrated heat sink case, and a top case with two hardened steel gear pins supported by axial brass bushing.
The HS-7940TH has been designed for applications where speed and response are demanded. Perfect for High Performance Nitro and Electric Helicopters, Aircraft, Cars, and Trucks. Featuring a blistering transit time of .07 sec, but still maintaining a respectable 181 oz./in. of torque at 6.0 volts.
Programmable Features Include:
- - Dead Band Width
- - Direction of Rotation
- - Speed of Rotation (slower)
- - End Points
- Neutral Points
- Fail Safe On/Off
- Fail Safe Point
- Resolution* (default is high resolution)
- - Overload Protection* (default is off)
*These features are only programmable with the HFP-20, HPP-20 or HPP-21 programmers.
- G2 Digital Circuit
- Titanium Gear Train (MK first gear)
- Ultra Performance Coreless Motor
- Heatsink Case
- (8) O-Rings for Water/Dust/Fuel protection
- Dual Ball Bearing Supported Output Shaft
Hitec HS7940th G2 Premium Hv Ultra High Speed 7.4v Tech Specs:
- Weight: 65g / 2.29oz
- Shipping Weight: 0.13kg / 0.29lbs
- Product Height: 38mm / 1.5in
- Product Width: 20mm / .79in
- Product Length: 40mm / 1.57in
- Application: Array
- Servo Size: Standard
Key Info:
- Brand: Hitec
- Part No: 2220510
- Barcode: 669962379403
