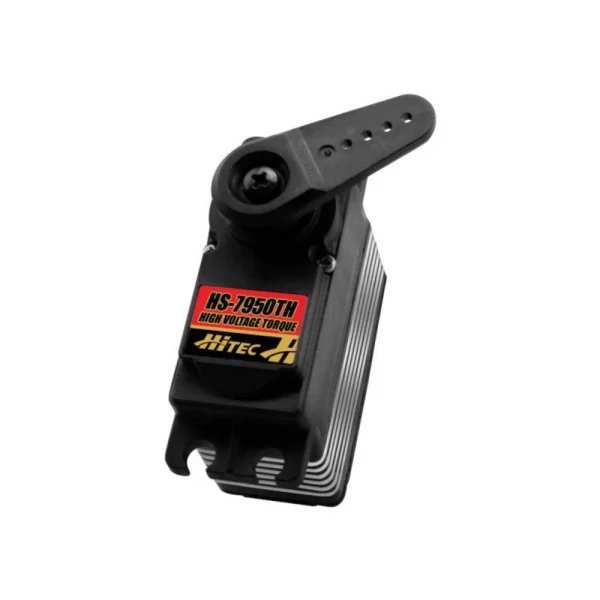

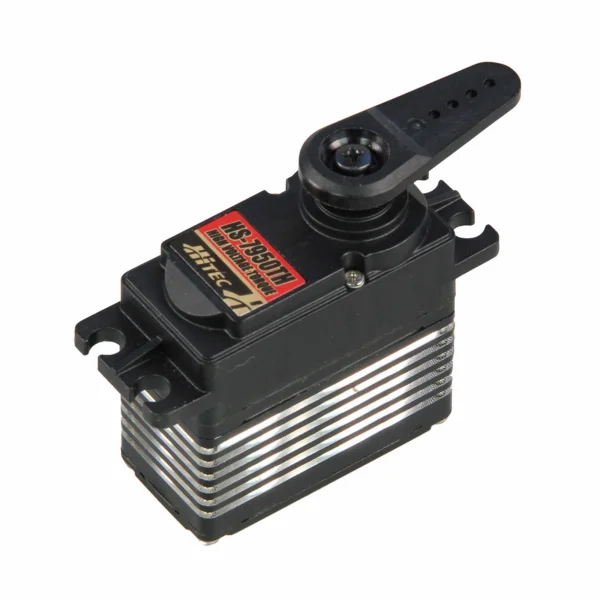

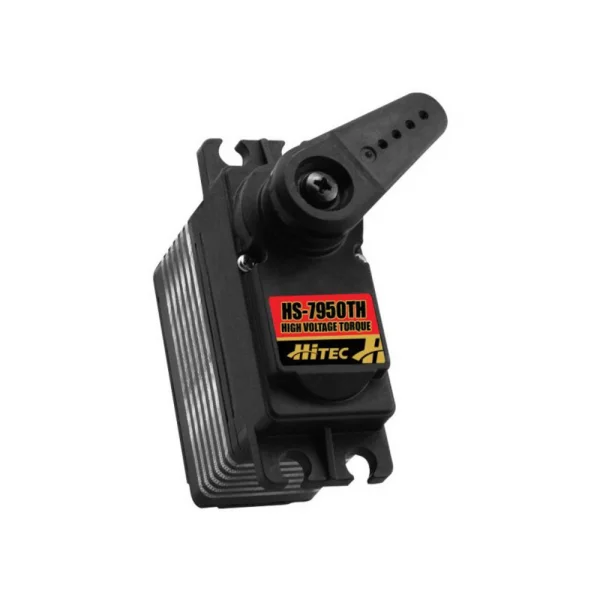

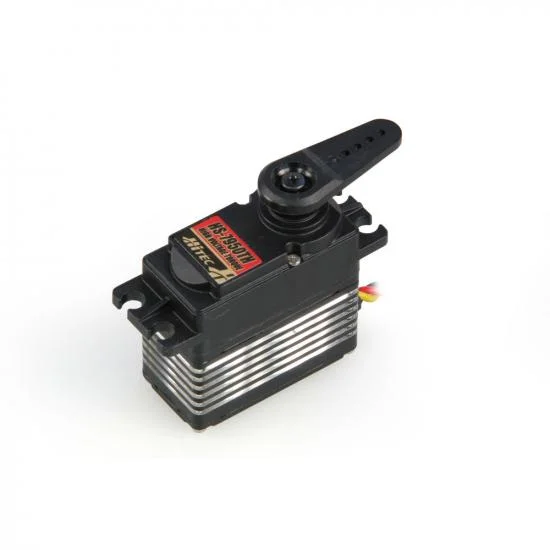

Hitec HS7950TH Ultra Torque Servo - 35kg / 0.13 sec
Brand: Hitec
Part No: 2220530
Shadow Stock: Usually ships next day
The Hitec HS7950TH Ultra Torque Servo – 35kg / 0.13 sec (part 2220530) is engineered for extreme-duty control. Designed to operate on a 2S LiPo pack, it combines Hitec’s second-generation G2 programmable digital circuitry with a titanium gear train for outstanding strength and long-term durability. A 7.4V-optimised coreless motor, integrated heat sink case, and a top case with two hardened steel gear pins supported by an axial brass bushing further enhance reliability under heavy loads.
Built for the most demanding hobby applications, the HS7950TH is suited to the largest aircraft and RC monster trucks. For reference, the manufacturer cites up to 403 oz./in. of torque at 6.0V with a 0.15 second transit time. Dual ball bearings on the output shaft and eight O-rings help deliver smooth, precise control with added protection from water, dust and fuel. Standard-size dimensions keep installation straightforward across many high-performance builds.
Key Features
- G2 second-generation programmable digital circuit
- Titanium gear train (MK first gear)
- 7.4V-optimised ultra performance coreless motor
- Integrated heat sink case
- Top case with two hardened steel gear pins and axial brass bushing
- Dual ball bearing supported output shaft
- Eight O-rings for water/dust/fuel protection
Programmable Features Include
- Dead band width
- Direction of rotation
- Speed of rotation (slower)
- End points
- Neutral points
- Fail-safe on/off
- Fail-safe point
- Resolution (default high resolution)
- Overload protection (default off)
Note: These features are programmable with Hitec HFP-20, HPP-20 or HPP-21 devices.
Specifications
- Servo size: Standard
- Weight: 65 g
- Dimensions (L x W x H): 40 x 20 x 38 mm
- Manufacturer performance reference: 403 oz./in. torque at 6.0V; 0.15 sec transit time
Suggested Compatibility
- Largest aircraft requiring ultra torque standard-size servos
- RC monster trucks and other high-demand surface models
Secured by Stripe
Hitec's strongest servo period, the 'Ultra Torque' HS-7950TH is designed to operate on a two cell LiPo Pack. Featuring our high resolution 'G2' second generation programmable digital circuit and our indestructible Titanium gears, the HS-7950TH has the performance and durability you've come to expect from a Hitec servo. Other features in the HS-7950TH include a 7.4V optimized coreless motor, integrated heat sink case, and a top case with two hardened steel gear pins supported by axial brass bushing.
The HS-7950TH has been designed for the most demanding hobby applications including the largest aircraft and monster trucks. Featuring a titanic 403 oz./in. of torque at 6.0 volts, while still maintaining a respectable 0.15 second transit time.
Programmable Features Include:*These features are only programmable with the HFP-20, HPP-20 or HPP-21 programmers.
Hitec HS7950TH Ultra Torque Servo - 35kg / 0.13 sec Key Features:
Hitec's strongest servo period, the 'Ultra Torque' HS-7950TH is designed to operate on a two cell LiPo Pack. Featuring our high resolution 'G2' second generation programmable digital circuit and our indestructible Titanium gears, the HS-7950TH has the performance and durability you've come to expect from a Hitec servo. Other features in the HS-7950TH include a 7.4V optimized coreless motor, integrated heat sink case, and a top case with two hardened steel gear pins supported by axial brass bushing.
The HS-7950TH has been designed for the most demanding hobby applications including the largest aircraft and monster trucks. Featuring a titanic 403 oz./in. of torque at 6.0 volts, while still maintaining a respectable 0.15 second transit time.
Programmable Features Include:
- - Dead Band Width
- - Direction of Rotation
- - Speed of Rotation (slower)
- - End Points
- - Neutral Points
- - Fail Safe On/Off
- - Fail Safe Point
- - Resolution* (default is high resolution)
- - Overload Protection* (default is off)
*These features are only programmable with the HFP-20, HPP-20 or HPP-21 programmers.
Hitec HS7950TH Ultra Torque Servo - 35kg / 0.13 sec Tech Specs:
- Weight: 65g / 2.29oz
- Shipping Weight: 0.14kg / 0.31lbs
- Product Height: 38mm / 1.5in
- Product Width: 20mm / .79in
- Product Length: 40mm / 1.57in
- Application: Array
- Servo Size: Standard
Key Info:
- Brand: Hitec
- Part No: 2220530
- Barcode: 669962379502
- Max Voltage: 7.4v+ (LiPo)
- Gear Material: Metal
