Hitec HS7980th G2 Premium HV Monster Torque 7.4v
Brand: Hitec
Part No: 2220550
Shadow Stock: Usually ships next day
The Hitec HS-7980TH G2 Premium HV "Monster Torque" servo is engineered for extreme duty performance on a two-cell LiPo. With a 7.4V-optimised coreless motor, titanium gear train and G2.5 12‑bit programmable digital circuitry inside an integrated heatsink case, it delivers the power and durability demanded by advanced RC builds. This listing refers to Hitec part 2220550 and the HS-7980TH/HS7980TH designation.
Key Features
- G2.5 12‑bit digital programmable circuit
- Titanium gear train (MK first gear)
- Ultra‑performance coreless motor (optimised for 7.4V)
- Integrated heatsink case
- Eight O‑rings for water, dust and fuel protection
- Dual ball bearing supported output shaft
- Approximately 10% larger than HS‑7955TG
Performance
- Speed (6.0V / 7.4V): 0.20 / 0.17 sec @ 60°
- Torque (kg‑cm, 6.0V / 7.4V): 38.0 / 46.0
- Torque (oz‑in, 6.0V / 7.4V): 500 / 611
Programmable Functions
- Dead band width
- Direction of rotation
- Speed of rotation (slower)
- End points
- Neutral points
- Fail safe on/off
- Fail safe point
- Resolution (default high)
- Overload protection (default off)
Resolution and Overload Protection are programmable only with Hitec HFP‑20, HPP‑20 or HPP‑21 programmers.
Specifications
- Motor type: Coreless
- Bearing type: Dual ball bearing
- Gears: Titanium

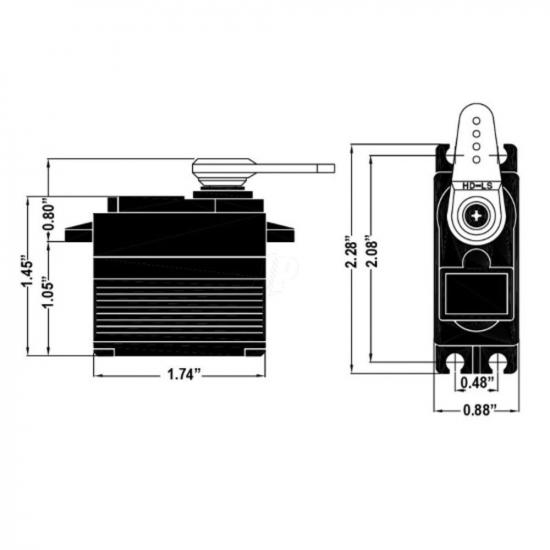

- Size: 43.69 x 22.35 x 39.88 mm (1.72 x 0.88 x 1.57 in)
- Weight: 76.54 g (2.70 oz)
Suggested Applications
- High‑performance giant scale aircraft
- Truggies and buggies
- Fast power boats
- Monster trucks
- Projects requiring 600+ oz‑in of torque
Secured by Stripe
- Motor Type - Coreless
- Bearing Type - Dual Ball Bearing
- Speed (6.0V/7.4V) - 0.20/ 0.17 sec @ 60 deg.
- Torque kg./cm. (6.0V/7.4V) - 38.0 / 46.0
- Size in Millimetres - 43.69 x 22.35 x 39.88
- Weight grams - 76.54
- Gears - Titanium
Hitec's strongest servo period, the "Monster Torque" HS-7980TH is designed to operate on a two cell LiPo Pack. Featuring our newest high resolution "G2.5" 12 bit generation programmable digital circuit and our indestructible Titanium gears, The HS-7980TH has the performance and durability you've come to expect from a Hitec servo. Other features in the HS-7980TH include a 7.4V optimized coreless motor, integrated heat sink case, and a top case with two hardened steel gear pins supported by axial brass bushing.
Applications for the HS-7980TH include high performance Giant Scale Aircraft, Truggies and Buggies, Fast Power boats, the largest aircraft, monster trucks or anywhere else you can use 600+ inch ounces of torque.
Features- G2.5 12 bit Digital Programmable Circuit
- Titanium Gear Train (MK first gear)
- Ultra Performance Coreless Motor
- Integrated Heatsink Case
- (8) O-Rings for Water/Dust/Fuel protection
- Dual Ball Bearing Supported Output Shaft
- 10% larger than a HS-7955TG
Programmable Features Include:
- Dead Band Width
- Direction of Rotation
- Speed of Rotation (slower)
- End Points
- Neutral Points
- Fail Safe On/Off
- Fail Safe Point
- Resolution* (default is high
resolution)
- Overload Protection*
(default is off)
*These features are only programmable with the HFP-20, HPP-20 or HPP-21 programmers.
| Motor Type: | Coreless |
| Bearing Type: | Dual Ball Bearing |
| Speed (6.0V/7.4V): | 0.20 / 0.17 |
| Torque oz./in. (6.0V/7.4V): | 500 / 611 |
| Torque kg./cm. (6.0V/7.4V): | 38.0 / 46.0 |
| Size in Inches: | 1.72 x 0.88 x 1.57 |
| Size in Millimeters: | 43.69 x 22.35 x 39.88 |
| Weight oz.: | 2.70 |
| Weight g.: | 76.54 |
Key Info:
- Brand: Hitec
- Part No: 2220550
- Barcode: 669962379809
Free Shipping
This item is over £100, so qualifies for free standard UK shipping!
Express Shipping
Upgrade to next day from £3
Worldwide Shipping
Available at checkout
