Hitec Hsb9485Sh Brushless HV Ultra H/Torque Servo
Brand: Hitec
Part No: 2220985
Shadow Stock: Usually ships next day
The Hitec HSB-9485SH Brushless HV Ultra High Torque Servo (part number 2220985) delivers pro-level power and precision. Built around a Neu Castle brushless motor, a durable steel gear train and a programmable 12-bit digital circuit, it provides constant output across 6.0–8.4V while maintaining ultra-low current consumption.
Hitec’s BLDC architecture introduces advanced control and efficiency to a standard-size servo, complemented by a hybrid MPD (Metal–Plastic–Duralumin) first gear for maximum durability. The integrated PAD (Power Absorbing Device) protects connected electronics by preventing unwanted current backflow. With water and dust tight construction and a 25-tooth standard spline, the HSB-9485SH is engineered for demanding applications where dependable, high-torque performance is essential.
Key Features
- Neu Castle brushless motor with BLDC programmable digital circuit
- Durable steel gear train with ball bearings
- 25-tooth standard spline
- Constant power output from 6.0V to 8.4V
- Ultra low current consumption for energy-efficient operation
- Hybrid MPD (Metal–Plastic–Duralumin) first gear
- PAD (Power Absorbing Device) to prevent backflow of current
- Water and dust tight construction
Brushless Servo Technology
Hitec’s brushless design maintains consistent performance regardless of input voltage (6.0–8.4V), helping deliver predictable control throughout flight or racing. Using Hitec’s PC interface, the servo’s digital parameters can be customised to suit a wide range of applications.
The hybrid MPD first gear combines metal, plastic and duralumin to maximise strength while reducing the risk of inadvertent electrical contact with airframe or vehicle hardware. Energy efficiency is a core focus, with current consumption targeted at a fraction of typical brushless servos.
Technical Specifications
- Weight: 62g (2.19oz)

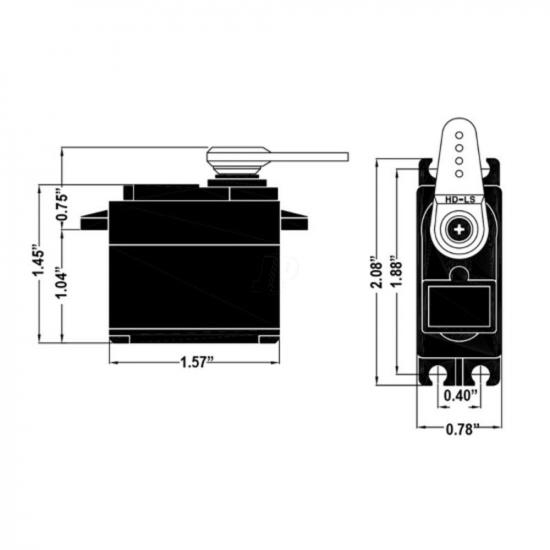

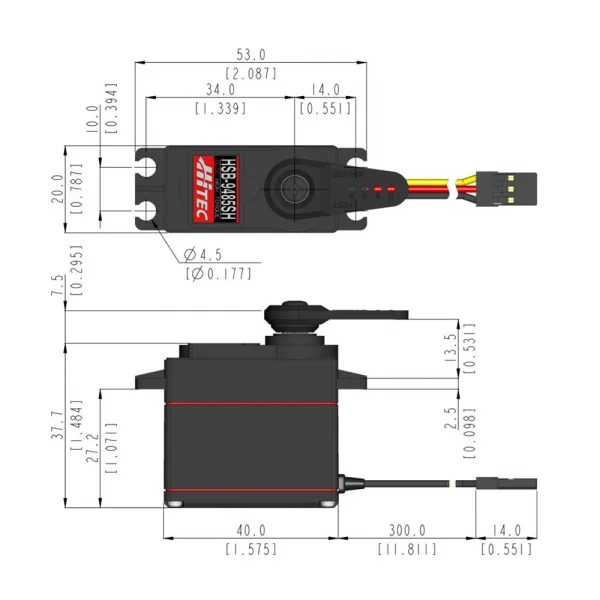

- Dimensions (L×W×H): 40 × 20 × 37mm (1.57 × 0.78 × 1.45in)
- Servo size: Standard
Secured by Stripe
Pro level hobbyists demand the power and precision found in our triple threat HSB-94XX servos. Each one is designed with our durable steel gears and impressive Neu Castle brushless motors with the HSB-9465SH bringing lightning speed.
Features- Durable Steel Gear Train
- 25-Tooth Standard Spline
- Programmable 12-Bit Resolution Digital Circuit
- Ultra Low Current Consumption
- Constant Power Output
Regardless of your power input (6.0V - 8.4V), Hitec's brushless servos will maintain constant output power throughout your flight or racing.
BLDC Servos Programmable Digital CircuitYou can utilise Hitec's PC interface to customise your brushless servos to maximise your performance in a multitude of applications.
Hybrid MPD (Metal-Plastic-Duralumin) 1st GearThe metal, plastic and duralumin hybrid 1st gear gives our brushless servos maximum performance and durability even in the touchest applications. The plastic within the MPD prevents inadvertent electrical contact with the aircraft or vehicle's hardware.
Ultra Low Current Consumption'Energy efficiency' is a common interest for all modelers. By designing servos which consume only 1/5th of the power of existing brushless servos, Hitec engineers have successfully achieved low power consumption and our goal for combining efficiency and dynamics in a brushless servo technology.
PADThe Power Absorbing Device prevents the backflow of current to devices that cannot accept it.
Hitec Hsb9485Sh Brushless Hv Ultra H/Torque Servo Key Features:
Pro level hobbyists demand the power and precision found in our triple threat HSB-94XX servos. Each one is designed with our durable steel gears and impressive Neu Castle brushless motors with the HSB-9465SH bringing lightning speed.
Features
- Durable Steel Gear Train
- 25-Tooth Standard Spline
- Programmable 12-Bit Resolution Digital Circuit
- Ultra Low Current Consumption
- Constant Power Output
Brushless Servo Technology
Hitec rings a significant technological innovation in BLDC servosConstant Output
Regardless of your power input (6.0V - 8.4V), Hitec's brushless servos will maintain constant output power throughout your flight or racing.
BLDC Servos Programmable Digital Circuit
You can utilise Hitec's PC interface to customise your brushless servos to maximise your performance in a multitude of applications.
Hybrid MPD (Metal-Plastic-Duralumin) 1st Gear
The metal, plastic and duralumin hybrid 1st gear gives our brushless servos maximum performance and durability even in the touchest applications. The plastic within the MPD prevents inadvertent electrical contact with the aircraft or vehicle's hardware.
Ultra Low Current Consumption
'Energy efficiency' is a common interest for all modelers. By designing servos which consume only 1/5th of the power of existing brushless servos, Hitec engineers have successfully achieved low power consumption and our goal for combining efficiency and dynamics in a brushless servo technology.
PAD
The Power Absorbing Device prevents the backflow of current to devices that cannot accept it.
- Ultra efficient Neu-Castle brushless motors
- Extremely low power consumption
- Durable metal gears with ball bearings
- Programmable digital amplifier with Brushless Digital Circuit (BLDC) motor
- Hybrid MPD (Metal-Plastic-Duralumin) 1st Gear
- Water and dust tight
- Constant output
Videos:
Hitec Hsb9485Sh Brushless Hv Ultra H/Torque Servo Tech Specs:
- Weight: 62g / 2.19oz
- Shipping Weight: 0.14kg / 0.31lbs
- Product Height: 37mm / 1.45in
- Product Width: 20mm / .78in
- Product Length: 40mm / 1.57in
- Application: Array
- Servo Size: Standard
Key Info:
- Brand: Hitec
- Part No: 2220985
- Barcode: 669962394857
