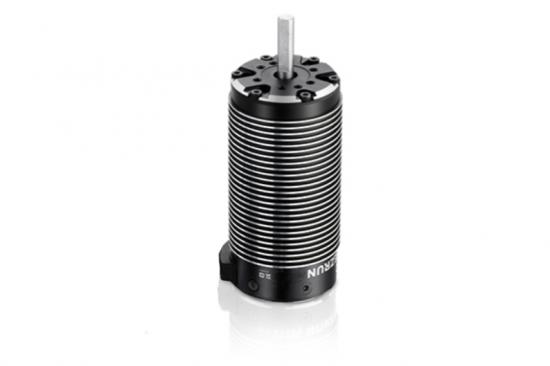

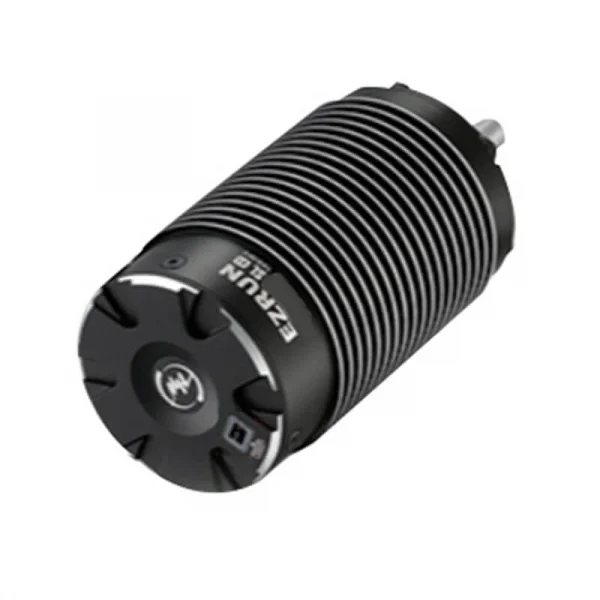

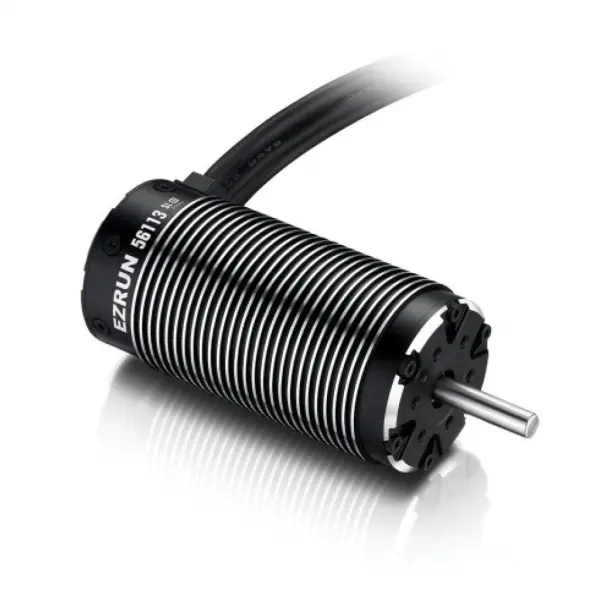

Hobbywing Ezrun 1/5Th Sl 56113-800Kv Motor (Black)

The Hobbywing EzRun 1/5th SL 56113-800KV Motor (Black) delivers rapid acceleration response and a rock-solid, stable power output for 1/5 scale RC vehicles. Its 56 x 113 mm can and 4-pole, sensorless design provide the instant full-torque start-ups needed for wheelies, confident straight-line speed, and powering through rough terrain.

Pairing this motor with the Hobbywing EZRUN MAX5 ESC (suggested compatibility) enables thermal protection via the built-in temperature sensor and port, helping to prevent heat-related damage and extend service life. Hobbywing’s temperature control technology enhances reliability and keeps heat in check so the motor can run more efficiently—up to an industry-leading 90%—for consistent performance over long runs.

Engineered for durability, the 56113-800KV features a CNC-machined, hard-anodised aluminium case, ultra-thin silicon steel laminations, heat-resistant oxygen-free double-insulated windings, high-quality Japanese bearings, a robust rotor structure and a polished alloy steel output shaft. The result is smooth, linear power delivery with strong torque and the resilience demanded by large-scale off-road and on-road applications.

Key Features

• Fast acceleration and stable output for instant full-torque start-ups, wheelies and high-speed runs
• Thermal protection when used with Hobbywing EZRUN MAX5 ESC (suggested compatibility) via built-in temperature sensor and port
• High efficiency up to 90% with advanced temperature control technology
• Smooth, linear power band and large torque when paired with EZRUN MAX5 ESC (suggested compatibility)
• CNC-machined hard-anodised aluminium case with ultra-thin silicon steel laminations
• Heat-resistant, oxygen-free, double-insulated windings
• High-quality Japanese bearings and strong rotor structure
• Polished alloy steel 8 mm output shaft

Specifications

• Type: 1/5th, Brushless (BL), Sensorless (SL), 4-pole
• KV Rating: 800KV
• LiPo Cells: 3–8S
• No-load Current: 3.2 A
• Diameter (O.D.): 56 mm
• Length: 113 mm
• Shaft Diameter: 8.0 mm
• Weight: 1210 g
• Front/Rear Bearings: D8 x D22 x t7 (608DD/608ZZ)
• Timing: 0
• Applications: 1/5th RC vehicles
• Colour: Black
• Part Number: HW30402900

Suggested compatibility: Hobbywing EZRUN MAX5 ESC.
