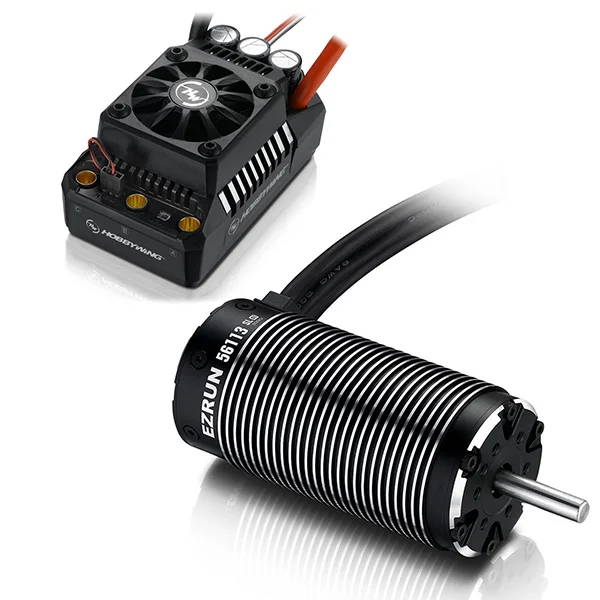

Hobbywing MAX5 V3 ESC Combo With 800Kv Motor (1:5 Scale)
Brand: Hobbywing
Part No: HW38010600
In Stock: Usually ships same day
The Hobbywing EZRun MAX5 V3 ESC Combo with 56113 800Kv motor (HW38010600) is a heavy-duty power solution for 1/5th scale RC vehicles. Built with rugged components and refined firmware, it delivers brutal torque, high top speed and smooth control whether you are wheelieing off the line, charging down straights or powering across rough terrain. A waterproof and dust-proof design keeps performance consistent in all weather.
The MAX5 V3 integrates an internal anti-spark system to help protect high-voltage battery connectors and reduce the usual spark on 5S–8S hook-up. An HV built-in BEC with switchable 6V/7.4V supports the demands of large-scale, high-voltage servos. Tuning is straightforward, with broad parameter adjustment and support for the Hobbywing WiFi module for convenient programming.
Key Features
- High reliability and durability for large-scale applications
- Great flexibility and versatility with wide parameter tuning
- Advanced and secure electronic switch
- Applicable to all weather conditions (waterproof and dust-proof)
- High voltage built-in BEC with selectable 6V/7.4V output
- Regular firmware updates (free of charge)
- Built-in anti-spark system
- Maintenance-free design
Specifications
- Scale: 1/5th
- Brushed/Brushless: BL
- Sensored/Sensorless: SL
- Waterproof: Yes
- Continuous/Peak Current: 200A / 1300A
- Input: 3–8S LiPo / 9–24 cells NiMH
- BEC Output: Switch mode, 6V/7.4V, 6A
- Input Wires: Red 8AWG 200mm x1 / Black 8AWG 200mm x1
- Output Wires: Black 10AWG 200mm x3
- Input Connectors: None
- Output Connectors: 6.5mm female gold connectors (pre-soldered to PCB)
- Fan Size: 45.0 x 45.0 x 10.0mm
- Fan Voltage Range: 5–7.4V
- WiFi Module: Supported
- Program Port: FAN/Program port
- Size: 93.4 x 58.1 x 47.8mm
- Weight: 342g
Suggested Compatibility
- HPI Baja buggy
- Losi 5IVE-T Nitro-to-Electric truck
- Desert Buggy XL Nitro-to-Electric buggy
- Other 1/5th scale on-road cars, truggies, SCTs and buggies
This combo’s stable output and instant acceleration make it a strong match for large-scale builds seeking dependable 3–8S brushless power with the convenience of robust protection features and simple setup.
Secured by Stripe
HOBBYWING COMBO EZRUN MAX5 V3 ESC 56113 800KV MOTOR (1/5TH)
The EZRUN MAX 5 provides the ultimate power upgrade solution for many popular 1/5th scale vehicles like HPI Baja buggy, Losi 5IVE-T Nitro-to-Electric truck, and Desert Buggy XL Nitro-to-Electric buggy. It’s also suitable for various other brand of 1/5th scale on-road cars, truggies, SCTs and buggies. The waterproof and dust-proof design allows the MAX5 to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.
Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EZRUN MAX5 is able to deliver unmatched power and performance for even the most hardcore of racing applications, but is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error.
The MAX5 has adopted the world’s first HV built-in BEC with an output current of up to 25Amp and a switchable output voltage of 6V-7.4V. The high voltage BEC is designed to handle today’s high voltage servos on demand used by large scale vehicles.
The MAX5 is built with internal anti-spark circuitry that protects not only battery connectors from damage but helps to prevent physical injury due to burnt fingers from the inevitable issue of sparking when hooking up the ESC to higher voltage battery packs (5S/6S/7S/8S).
With incredible acceleration capabilities and a rock-solid, stable output, the MAX5 can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrain. The user will have the choice of adjusting the ESC parameters as per his preference and ability.
HobbyWing EzRun MAX5 V3 Features
- High Reliability & Durability
- Great Flexibility & Versatility
- Advanced and Secure Electronic Switch
- Applicable to All Weather Conditions
- High Voltage Built-in BEC
- Advanced and Secure Electronic Switch
- Regular Firmware Updates - Free of Charge
- Built-in Anti-Spark System
- Maintenance Free
Spec Check
- Scale: 1/5th
- Brushed/Brushless:BL
- Sensored/Sensorless: SL
- Waterproof: Yes
- Cont./Peak Current: 200A/1300A
- Input: 3-8S LiPo/9-24 Cells NiMH
- BEC Output: Switch Mode: 6V/7.4V,6A
- Input Wires: Red-8AWG-200mm*1/Black-8AWG-200mm*1
- Output Wires: Black-10AWG-200mm*3
- Input Connectors:None
- Output Connecotors: 6.5mm Female Gold Connectors (pre-soldered onto the PCB)
- Fan Size: 45.0x45.0x10.0mm
- Fan Voltage Range: 5-7.4V
- WiFi Module: Supported
- Program Port: FAN/Program Port
- Size: 93.4x58.1x47.8mm
- Weight: 342g
Key Info:
- Brand: Hobbywing
- Part No: HW38010600
- Barcode: 6938994407489
Free Shipping
This item is over £100, so qualifies for free standard UK shipping!
Express Shipping
Upgrade to next day from £3
Worldwide Shipping
Available at checkout
Reviews
Great service as ever!
A big powerful motor and ESC. Lots of adjustable options and premium build quality.
This power system provides An insane amount of power. I do not recommend this combo for the Xmaxx with out upgrading most other chassis components. Overall it’s fierce and lots of fun.
Wonderful kit well made if only they put a connector on the ESC. Best part of £400 and you have to muck about soldering a plug on. Not impressed
WRITE A REVIEW
Questions & Answers
Yes it would be a suitable system but may need slight modifcation on the steering post to ensure clearance.
No that will not fit at all.
I have seen customers use these ESC's with the stock motor, but I don't think this motor will fit no
There's not a "universal" motor mount that we know to, but these do fit most of the mounts we've come across in conversion kits?
They are pre-made into the ESC, but they do not have a battery connector fitted. You'd solder on your own choice of battery connector.
