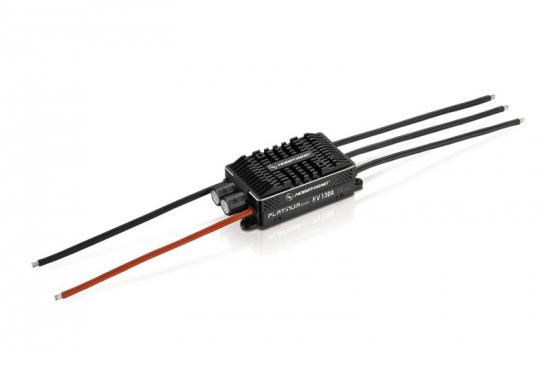

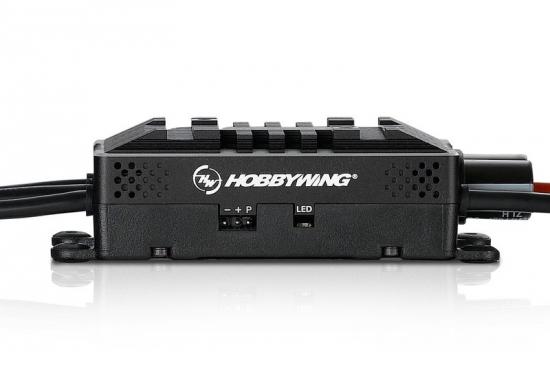

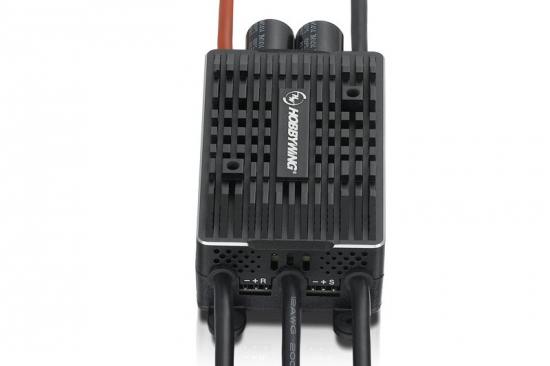

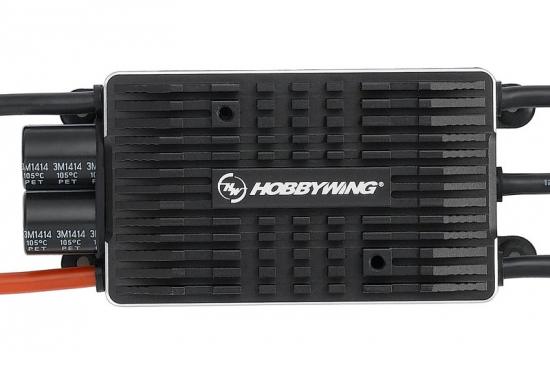

Hobbywing Platinum Pro V4 130A HV Opto ESC
Brand: Hobbywing
Part No: HW30209201
SORRY, THIS ITEM IS DISCONTINUED AND NO LONGER AVAILABLE.
Why not contact our team to see if an alternative is available?
The Hobbywing Platinum Pro V4 130A HV OPTO ESC (HW30209201) delivers the smooth, precise control trusted by RC helicopter pilots. A high-performance 32-bit processor running at 72MHz, combined with an advanced algorithm, optimises speed governing for accurate head speed management. The super soft start-up, adjustable from 8 to 25 seconds, helps prevent tail drift and sets a confident tone for every flight. DEO technology enhances efficiency and response, while a built-in sparkproof circuit reduces arcing at power-on to protect connectors.
Key Features
- Super soft, adjustable start-up (8–25 seconds) for smooth spool-up
- Precise motor speed governing via 32-bit, 72MHz processor and advanced algorithm
- DEO technology for improved efficiency and throttle response
- Built-in sparkproof (arc-proof) circuit extends connector lifespan
- Four selectable brake modes for versatile control
- Multiple protections: ESC and capacitor thermal, overload, signal loss (Fail Safe) and low-voltage cutoff
- Firmware upgradeable; supports LCD Program Box and WiFi Module
- OPTO design (no BEC output)
Brake Modes
- Brake Disabled
- Normal Brake – adjustable brake amount
- Proportional Brake – brake force varies with throttle stick position
- Reverse Brake – change motor rotation via a spare transmitter channel
Specifications
- Type: Brushless (BL)
- Continuous / Peak Current: 130A / 160A
- Input Voltage: 6–14S LiPo
- BEC Output: No
- Input Wires: Red 12AWG 150mm ×1 / Black 12AWG 150mm ×1
- Output Wires: Black 12AWG 100mm ×3
- Input Connectors: None
- Output Connectors: None
- Programming: LCD Program Box supported; WiFi Module supported
- Size: 101.0 × 45.5 × 27.0 mm
- Weight: 154 g
Combining smooth start-up, refined governor performance, versatile braking and robust protection, the Hobbywing Platinum Pro V4 130A HV OPTO ESC is a compelling choice for high-voltage RC helicopter setups operating on 6–14S LiPo power.
Secured by Stripe
HOBBYWING PLATINUM PRO 130A HV OPTO V4 SPEED CONTROLLER
Platinum V4 serial products allows the motor to start extremely smooth and avoids tail-drift issues that helicopters experience. The start-up time is adjustable from 8 to 25 seconds, this will definitely create a perfect starting point for every flight.
High-performance 32-bit processor with a running frequency of 72MHz combined with advanced algorithm optimizes the speed governing. Together with the adjustable governor parameters guarantee every pilot a precise control experience.
This Platinum V4 ESC has “Brake Disabled, Normal Brake, Proportional Brake and Reverse Brake” four brake modes. The brake amount is adjustable in normal brake mode; in proportional brake mode, the brake force will be automatically allotted based on the position of radio throttle stick; in reverse brake mode, the motor rotation can be changed via a spare transmitter channel.
Multiple protection features include ESC thermal, capacitor thermal (HOBBYWING-patented technology), ESC overload, throttle signal loss(or Fail Safe), and low voltage cutoff effectively prolongs the service life of the ESC. The Built-in Arc proof circuit effectively eliminates Arc/Spark produced at the “powering-on” moment and prolongs the connectors‘ lifespan.
HobbyWing Platinum HV 130A OPTO V4 Features:
- Super Soft Start-up
- Excellent Motor Speed Governing
- DEO Technology
- Built-in Sparkproof Circuit
- Four Brake Modes
- Multiple Protections
- Upgradeable ESC firmware
Spec Check:
- Brushed/Brushless: BL
- Cont./Peak Current: 130A/160A
- Input Voltage: 6-14S LiPo
- BEC Output: No
- Input Wires: Red-12AWG-150mm*1/Black-12AWG-150mm*1
- Output Wires: Black-12AWG-100mm*3
- Input Connectors: No
- Output Connecotors: No
- LCD Program Box: Supported
- WiFi Module: Supported
- Size: 101.0x45.5x27.0mm
- Weight: 154g
Key Info:
- Brand: Hobbywing
- Part No: HW30209201
- Barcode: 6938994402675
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
Questions & Answers
Yes, hobbywing quote "Super Soft Start-up - Platinum V4 serial products allows the motor to start extremely smooth and avoids tail-drift
issues that helicopters experience. The start-up time is adjustable from 8 to 25 seconds,
this will definitely create a perfect starting point for every flight."

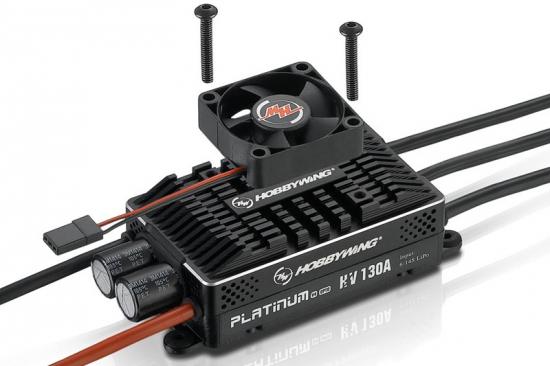

The fan for these is HW30860103
