Hobbywing Quicrun 1080 G2 Brushed ESC Combo With 555 13T Brushed Motor ** CLEARANCE **
Brand: Hobbywing
Part No: HW38020352
In Stock: Usually ships same day

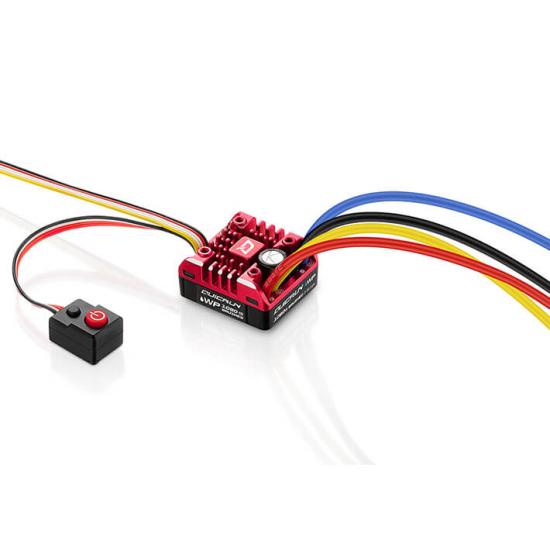

The Hobbywing Quicrun 1080 G2 Brushed ESC Combo With 555 13T Brushed Motor (HW38020352) pairs the acclaimed Quicrun 1080 G2 crawler ESC with a QUICRUN 555 13T brushed motor (PN HW30404316) for smooth, predictable control and durability on the trail. Real Car Mode enables switchable drive direction from a spare transmitter channel, while real-time drag brake adjustment via an AUX channel helps you dial in precise hold on climbs and descents. With IP67 waterproofing, it’s ready for confident, all-weather running.
A robust 80A continuous (400A peak) ESC with adjustable PWM and advanced freewheeling (DEO) technology delivers refined throttle linearity and feel. The switch-mode BEC offers 6V, 7.4V or 8.4V at up to 4A to suit power-hungry servos, and setup is straightforward via single-button programming or a Hobbywing LED program card/box through the dedicated programming port.
ESC Features
- 4 innovative Real Car running modes.
- IP67 waterproof design for all conditions.
- Highly reliable electronic switch design.
- Tuneable drag brake and drag brake rate.
- Adjustable PWM frequency with advanced freewheeling (DEO) for great throttle linearity.
- Real-time adjustable drag brake force via an AUX transmitter channel.
- Multiple protections: low-voltage cut-off, thermal protection, and throttle signal loss protection.
- Separate programming port for easy LED program card connection.
- Single-button ESC programming and factory reset.
- ESC programming via Hobbywing LED program card.
ESC Specifications
- Suggested compatibility: 1/10 rock crawlers.
- Motor type: Brushed (540 / 555 size).
- Continuous/peak current: 80A / 400A.
- Input voltage: 2–3S LiPo / 5–9S NiMH.
- BEC output: 6V / 7.4V / 8.4V @ 4A (switch-mode).
- Wires & connectors: Black-14AWG-200mm / Red-14AWG-200mm.
- Programming device: LED program box.
- Size: 37.2 x 31.9 x 18.4mm.
- Weight (with wires): 70.2g.
Motor Features
- Specialised carbon brushes for extended life.
- Zero-cogging torque design.
- Excellent efficiency.
- Outstanding response and control.
- Adjustable mechanical timing.
- Modular design for easy service and cleaning.
Motor Specifications
- Model: QUICRUN Brushed 555.
- Part number: HW30404316.
- Slot: 5.
- Turns: 13T.
- RPM @ 7.4V: 14,000.
- Input voltage: 12.6V.
- Diameter/length: 36mm x 58.5mm.
- Shaft diameter/length: 3.175mm x 16.5mm.
- Suggested compatibility: 1/10 crawlers, short course trucks, and monster trucks.
- Weight: 193g.
Together, the Quicrun 1080 G2 ESC and 555 13T motor deliver strong low-speed control, reliable braking and waterproof durability—an appealing setup for trail trucks and scale builds seeking dependable brushed performance.
Secured by Stripe
HOBBYWING QUICRUN COMBO 1080 G2 ESC + 555 13T BRUSHED MOTOR
The first "Real Car Mode" ESC from Hobbywing is an exciting release and features four running modes and a real time drag break adjustment.
In the Real Car mode the direction of the motor is switchable in real time by using a spare channel on the transmitter, you get the normal operation of pulling the trigger for "forward" and pushing the trigger for "brake" and then with the reverse enabled pulling the trigger will give you "reverse".
This new feature will give you a unique RC experience unlike any other! (Requires a spare channel on the receiver).
In addition to the switchable Real Car mode the drag brake force is also adjustable in real time using an AUX channel on the handset.
The Quicrun WP 1080G2 is fully waterproof to IP67 standards, this a great step forward for all weather RC Rock Crawler applications.
ESC Features
- 4 Innovative real car running modes - an RC first!
- Fully IP67 waterproof design for all conditions. (Note: please clean and dry it after use for avoiding rusty connectors)
- Highly reliable electronic switch design prevents mechanical switch failure due to dirt, water, dust and etc.
- Tuneable drag brake and drag brake rate for different vehicles, tracks and control feel.
- Adjustable PWM frequency combined with advanced freewheeling (/DEO) technology guarantees great throttle linearity and driving feel.
- Real time adjustable drag brake force using an AUX channel of a transmitter and the ability to switch the drag brake force anytime and anywhere on demand.
- Multiple protections: low-voltage cut-off protection, thermal protection and throttle signal loss protection.
- Separate programming port to easily connect the LED program card to the ESC.
- Single-button ESC programming and factory reset.
- ESC programming via Hobbywing LED program card.
ESC Specifications
Application: 1/10th Rock Crawler
Motor Type: Brushed Motor (540 / 555 size motors)
Cont./Peak Current: 80A/400A
Input Voltage: 2-3S LiPo/5-9S Cell NiMH
BEC Output: 6V / 7.4V / 8.4V @ 4A (Switch-mode)
Wires & Connectors: Black-14AWG-200mm / Red-14AWG-200mm
Programming device: LED program box
Size: 37.2 x 31.9 x 18.4mm
Weight (w/ wires): 70.2g
Motor Features
- Specialized Carbon Brushed for extended life
- Zero-Cogging Torque Design
- Excellent efficiency
- Outstanding Response and Control
- Adjustable mechanical timing of the motor
- Modular design for easy service and cleaning
Motor Specifications
Model: QUICRUN Brushed 555
PN: HW30404316
Slot: 5
Turns: 13T
([email protected]): 14000
Input Voltage: 12.6V
Diameter/ Length(mm): φ=36mm(1.42in) L=58.5mm(2.30in)
Shaft Diameter/ Length (mm): φ=3.175mm(0.125in) L=16.5mm(0.65in)
Applications: 1/10 Crawler / Short course truck / Monster truck
Weight: 193g
Key Info:
- Brand: Hobbywing
- Part No: HW38020352
- Barcode: 6938994420143
