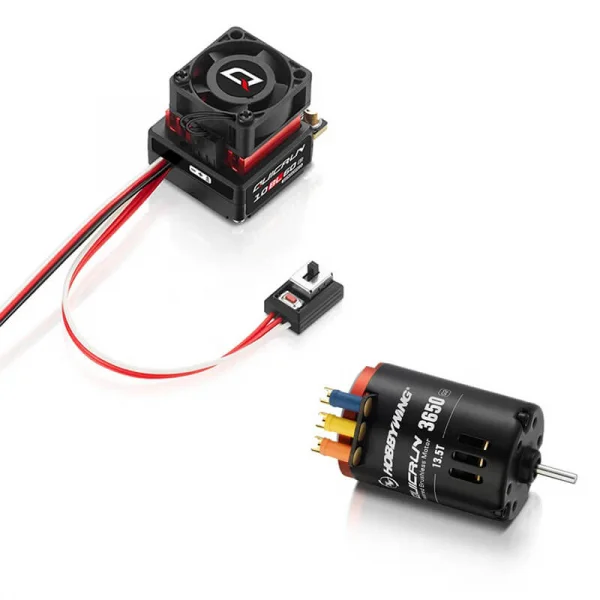

Hobbywing Quicrun Combo ESC G2 10Bl60/3650Sd 25.5T G2 Motor

Introducing the Hobbywing QuicRun 10BL60 Sensored G2 Brushless Speed Control and 3650 SD G2 motor combo.

Outstanding quality, amazing price.
Crafted for entry-level and intermediate builders, this ESC stands out with its exceptional quality and user-friendly design. It eliminates the complex setup, allowing users to jump right into action without the need for complicated tuning or trouble shooting.

Powerful built in BEC.
Compared to the G1 ESC, the G2 ESC features a significant upgrade in its BEC output. The continuous output current has increased from 2A to 4A. A peak current of up to 7A Switchable output voltages of 6V/7.4V. It effortlessly powers high-torque and high-voltage servos, giving users a smooth and responsive control experience.

Supports Boost/Turbo timing technology.
With support for Boost/Turbo timing adjustments of up to 24 degrees, this ESC unleashes maximum motor power, delivering an instant boost in speed when needed.

High reliability and durability.

• Low voltage protection.
• Over-temperature protection.
• Throttle signal loss protection.
• Overload protection.

Continuous current 60A. Peak Current 200A.
A robust hardware foundation, combined with advanced software, equips this ESC with strong current resistance and an array of protective features. These safeguards significantly enhance its reliability and durability

Support multipleprogramming methods.
The ESC supports three programming options: a multi-function LCD programming box, an LED programming box, and a SET button. This flexibility allows users to choose their preferred method for adjusting parameters with ease.

Support Motor Rotation Adjustment.
This ESC is compatible with a wide range of vehicle frames, ensuring versatility across different setups.

Great Heat-dissipation.
The silicon O-ring fitted between the end bell and stator helps to conduct inner
heat to the unique motor case to maximize cooling for extreme cooling conditions.

Plug-and-Play.
Customized 3.5mm low impedance bullet connectors soldered to the motor wires
guarantee "plug-and-play" and stable connections between the ESC and motor.

Re-buildable Design.
The end bell is easy to be removed for maintenance purposes and for the replacement
of common wearing parts such as rotor and sensor module (Ex bearings).

Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Waterproof: No

Cont./Peak Current: 60A/200A
Input Voltage: 2S LiPo
BEC Output: Switch Mode 6V/7.4V@4A
Input Wires: Black--14AWG-175mm*1 Red--14AWG-175mm*1
Output Wires: Blue-14AWG-175mm*1?Yellow-14AWG-175mm*1?Orange-14AWG-175mm*1
Input Connectors: No
Output Connectors: No
ESC Programing via:
SET Button on ESC: Supported
LED Program Box: Supported
LCD G2 Program Box: Supported
LCD Pro: Supported
OTA Programmer: Not Supported
Program Port: Shared with fan port
Date Recording: Not supported
Firmware Upgrade: Not Supported
Size: 35.0*31*30.8mm
Weight: 66.5g (Included wires & connectors)

Applications
Motors: Sensorless / Sensored Brushless Motor
Vehicles: 1/10th Touring, Buggy, Drift,1/12th and 1/14th Vehicles
KV Rating/T Count: QUICRUN 3650 SD G2

• Brand: Hobbywing
• Part No: HW30803204
• Barcode: 6938994420297
