Description

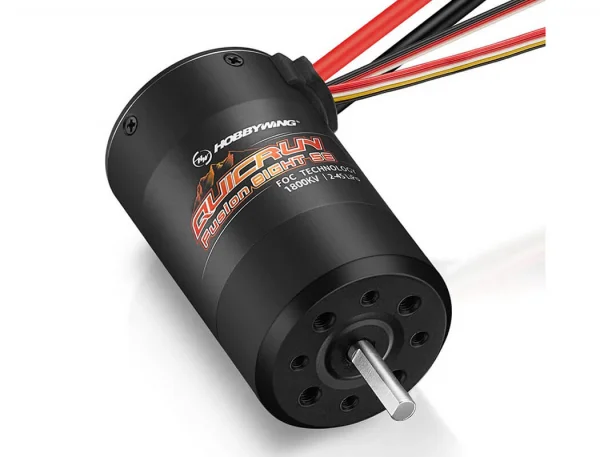

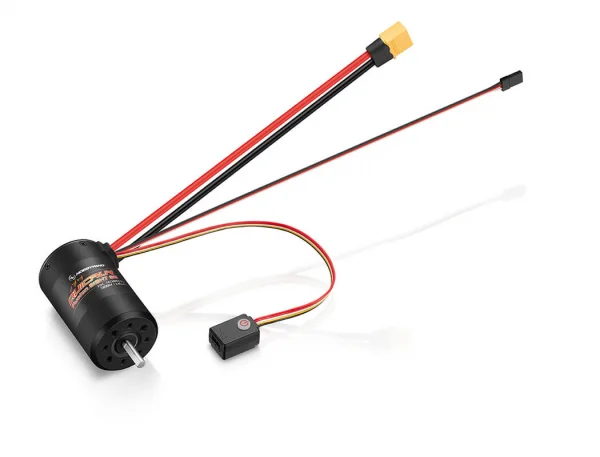

The Hobbywing Quicrun Fusion 8IGHT SE (HW30109100) is an integrated brushless ESC and motor system rated at 1800Kv, designed for 1/8th scale rock crawlers. Because the speed controller and motor are built as one unit, the layout and wiring inside the vehicle are simpler and easier to manage.
The system uses FOC (Field Oriented Control) to drive the motor, which gives strong low-speed torque and a feel that Hobbywing says improves on standard brushless setups and is even preferred over brushed ones. Torque output and speed are managed with closed-loop control. The system is also described as running efficiently with less heat, which helps extend run time, and with less motor noise. Drag brake force is actively adjustable, which gives holding power on inclines.
The unit is waterproof and dustproof, so it can be used in a wide range of conditions. A built-in switch mode BEC is adjustable between 6V and 7.4V, allowing it to drive high torque and high voltage servos. Protection covers low battery voltage, overheating, throttle loss and lock-up.
Settings are changed with an LCD Program Box G2 or LCD Pro through the independent programming port. The SET button on the ESC, the OTA programmer and firmware upgrades are not supported.
Specifications
- Scale: 1/8th crawlers
- Motor type: sensored brushless, 4 poles, 1800Kv
- Continuous/peak current: 60A/200A
- Input voltage: 2-4S LiPo or 6-12 cell NiMH
- BEC output: 6V/7.4V adjustable, 4A continuous
- Input connector: XT60
- Motor diameter/length: 41 mm/69 mm
- Shaft diameter/exposed length: 5 mm/18.5 mm
- Weight: 326.5 g including wires and connectors
Secured by Stripe
Specifications
- The integrated design of the ESC and the motor, makes the layout and wiring of car more simple, and convenient.
- FOC (Field Oriented Control) driving mode to the power system of rock crawler. The low speed torque is very strong. This improves over standard brushless setups and is even preferred over the brushed setups for overall feel.
- The system has high efficiency, less heat, and effectively extends the run time; and the motor runs more quietly.
- Excellent waterproof and dustproof performance, capable of running in all conditions.
- Intelligent torque output and speed closed-loop control.
- Active drag brake force adjustment, providing super holding power on inclines.
- With strong built-in switch mode BEC, and supports 6V/7.4V adjustable, capable of driving high torque and high voltage servos.
- Multiple protection functions: battery low voltage protection, overheat protection, throttle lost protection, lock-up protection.
- It supports LED and LCD Program Box Pro/G2 to set ESC parameters, making setting parameters more convenient.
Scale: 1/8th
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensored
Waterproof: Waterproof
Cont./Peak Current: 60A/200A
Input Voltage: 2-4S LiPo,6-12 Cells NiMH
BEC Output: 6V/7.4V adjustable,continuous current 4A (Switch mode)
KV: 1800KV
Motor Poles: 4
Input Wires: Black-13AWG-200mm*1 Red?-13AWG-200mm*1
Input Connectors: XT60
ESC Programing via:
SET Button on ESC: Not Supported
LED Program Box:
LCD G2 Program Box/LCD PRO: Supported
OTA Programmer: Not Supported
Program Port: Independent programming port(switch position)
Firmware Upgrade: Not Supported
Diameter / Length of motor: 41mm/69mm
Shaft diameter / exposed shaft length: 5mm/18.5mm
Weight: 326.5g (including wires&connectors)
Applications / Vehicles: 1/8th Crawlers
Key Info:
- Brand: Hobbywing
- Part No: HW30109100
- Barcode: 6938994412377
