Description

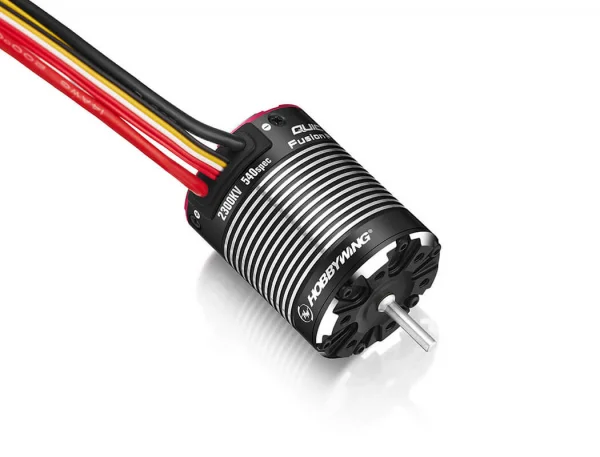

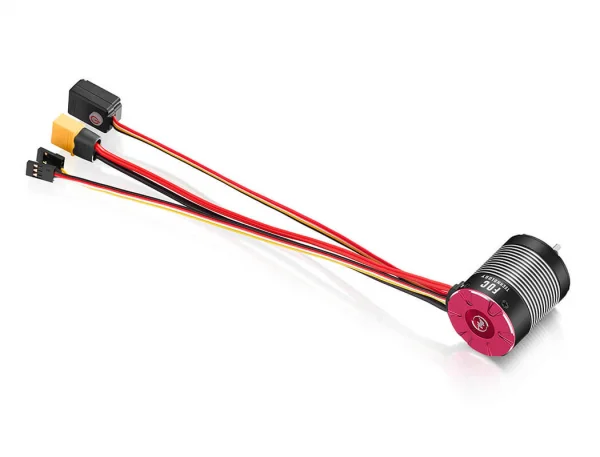

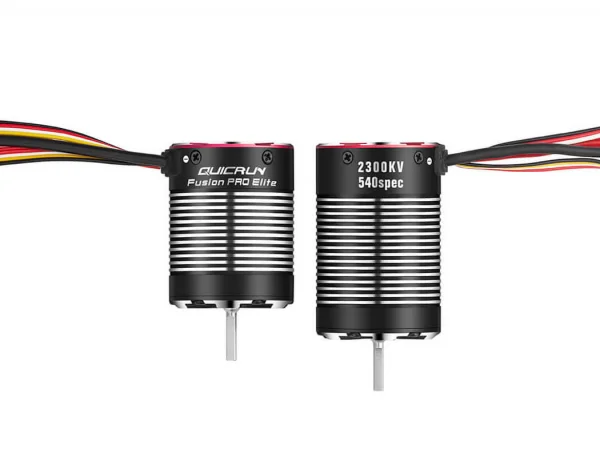

The Hobbywing Quicrun Fusion Pro Elite Crawler 2300Kv (part number HW30120500) is a sensored brushless motor and ESC system designed for 1/10th scale crawlers. The motor and speed controller are built as one integrated unit, which keeps the wiring short and the installation tidy.
The motor is just 48.5 mm long, which is 9.5 mm shorter than the Pro Standard version and 1.3 mm shorter than the AXE 540. Hobbywing states it suits most 10th-scale crawler chassis, so it may be a suggested choice where space is limited. The system uses FOC (Field-Oriented Control) driving, which is intended to give strong low-speed torque and a smooth, quiet feel. Intelligent torque output and speed closed-loop control support precise handling, while adjustable active drag brake force gives holding power on inclines. Hobbywing also quotes high efficiency, reduced heat and extended runtime, and the whole system carries an IP67 protection grade.
The built-in switch-mode BEC delivers up to 5A continuous and can be set to 6V, 7.4V or 8.4V, enough to drive high-torque and high-voltage servos. Parameters can be adjusted in real time through the transmitter's AUX channel, or with an LED Program Box or an LCD Program Box Pro/G2. The SET button on the ESC and the OTA programmer are not supported. Protection covers battery low voltage, overheating, throttle loss and lock-up.
Specifications
- Motor: 2300Kv, 4 poles, sensored
- Current: 50A continuous, 150A peak
- Input voltage: 2-4S LiPo or 6-12 cell NiMH
- BEC output: 6V, 7.4V or 8.4V adjustable, 5A continuous
- Motor size: 37 mm diameter, 48.5 mm length
- Shaft: 3.175 mm diameter, 16 mm exposed length
- Weight: 178.5 g including wires and connectors
- Input connector: XT60 on 14AWG wires
Secured by Stripe
Hobbywing Quicrun Fusion Pro Elite Crawler - 2300Kv Manuals & Guides
How-To Guides & Articles
Specifications
- Featuring an ultra-short integrated design with a length of just 48.5 mm, this motor is 9.5 mm shorter than the Pro Standard version and 1.3 mm shorter than the AXE 540. It fits most 10th-scale crawler chassis on the market, allowing for cleaner, more streamlined wiring layouts.
- FOC (Field-Oriented Control) Driving Mode: The FOC driving mode enhances the power system of rock crawlers, delivering strong low-speed torque. This provides superior performance compared to standard brushless setups and is even preferred over brushed setups for overall feel.
- The system offers high efficiency, reduced heat, and extended runtime, with the motor running quietly and smoothly.
- The entire system has an IP67 protection grade, enabling operation in all conditions.
- Intelligent torque output and speed closed-loop control ensure precise handling.
- Active drag brake force adjustment provides superior holding power on inclines.
- The strong built-in switch-mode BEC supports continuous/peak current up to 5A and adjustable voltages of 6V, 7.4V, or 8.4V, capable of driving high-torque and high-voltage servos.
- Real-time parameter adjustments are possible using the transmitter’s AUX channel.
- Multiple protection functions include battery low-voltage protection, overheat protection, throttle loss protection, and lock-up protection.
- The system supports LED and LCD Program Box Pro/G2 for convenient ESC parameter settings.
Scale: 1/10th
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensored
Waterproof: Waterproof
Cont./Peak Current: 50A/150A
Input Voltage: 2-4S LiPo,6-12 Cells NiMH
BEC Output: 6V/7.4V/8.4 adjustable,continuous current 5A (Switch mode)
KV: 2300KV
Motor Poles: 4
Input Wires: Black-14AWG-220mm*1 Red-14AWG-220mm*1
Input Connectors: XT60
ESC Programing via:
SET Button on ESC: Not Supported
LED Program Box: Supported
LCD G2 Program Box/LCD PRO: Supported
OTA Programmer: Not Supported
Program Port: Independent programming port(switch position)
Firmware Upgrade: Independent programming port(switch position)Not Supported
Diameter / Length of motor: 37mm/48.5mm
Shaft diameter / exposed shaft length: 3.175mm/16mm
Weight: 178.5g (including wires&connectors)
Applications / Vehicles: 1/10th Crawlers
Key Info:
- Brand: Hobbywing
- Part No: HW30120500
- Barcode: 6938994412384
