Hobbywing Quicrun Fusion SE 1200KV 2-in-1 ESC & Motor

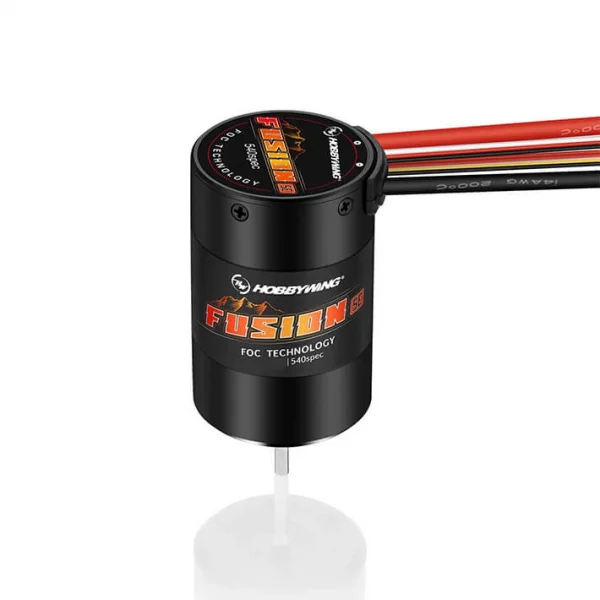

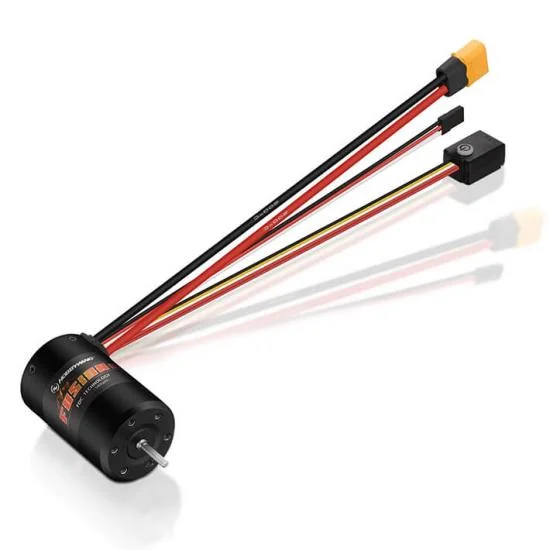

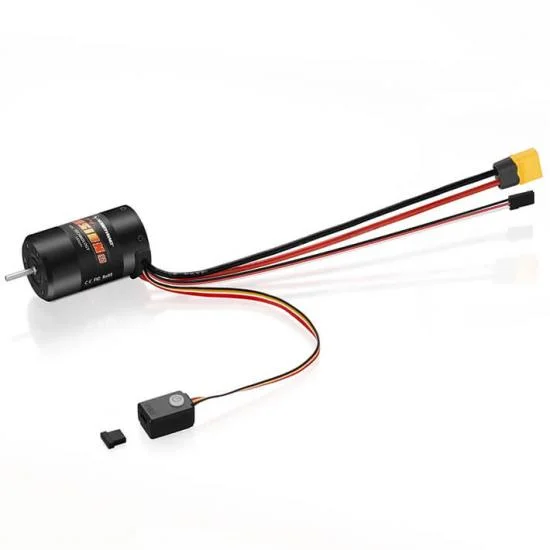

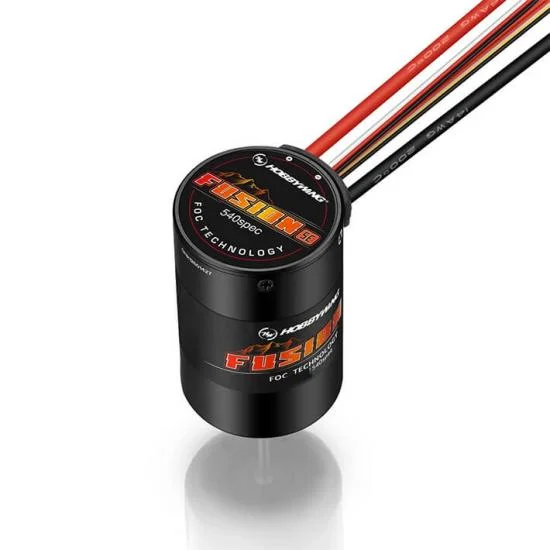

The Hobbywing Quicrun Fusion SE 2-in-1 ESC with 1200Kv sensored motor (HW30404318) combines a waterproof electronic speed controller and a 36mm brushless motor in a single compact unit. Designed for clean installations and reliable control, this integrated combo is well suited to 2–3S LiPo setups and offers a robust BEC for modern servos and electronics.

At a Glance

• Integrated 2-in-1 ESC and 1200KV sensored brushless motor
• Waterproof construction for confident use in wet conditions
• 2–3S LiPo or 6–9 cell NiMH input compatibility
• Selectable 6V/7.4V BEC output with up to 4A continuous (6A peak)
• LED Program Box support via independent programming interface

Key Specifications

• Scale/Type: 1/10, Brushless (BL), Sensored (SD), Waterproof
• Continuous/Peak Current: 40A
• Input Voltage: 2–3S LiPo / 6–9 cell NiMH
• BEC Output: 6V/7.4V @ 4A (6A peak)
• Motor KV: 1200KV
• Motor Size: 36mm diameter x 58.1mm length
• Shaft: 3.175mm diameter x 16.5mm exposed
• Motor Poles: 4
• Input Wires: Red 14AWG 200mm x1 / Black 14AWG 200mm x1
• Input Connector: XT60 (wire lengths are the original factory lengths)
• Size: 36 x 58.1mm
• Weight: 201g (including wires and connectors)

Programming and Firmware

• Set Button on ESC: Not supported
• LED Program Box: Supported
• LCD Program Box: Not supported
• OTA Programmer: Not supported
• Program Port: Independent programming interface (switch position)
• Firmware Upgrade: Not supported

Suggested Compatibility

Suitable for 1/10 rock crawler applications (suggested compatibility).
