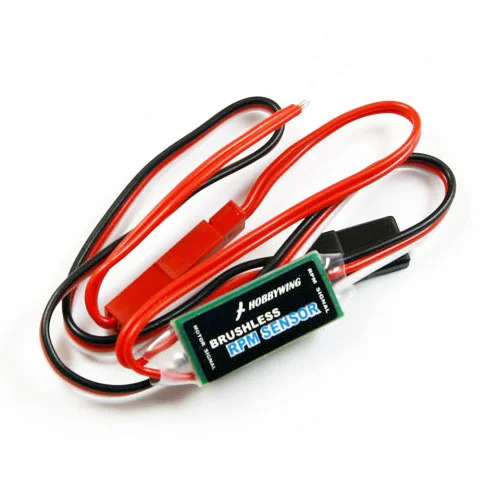

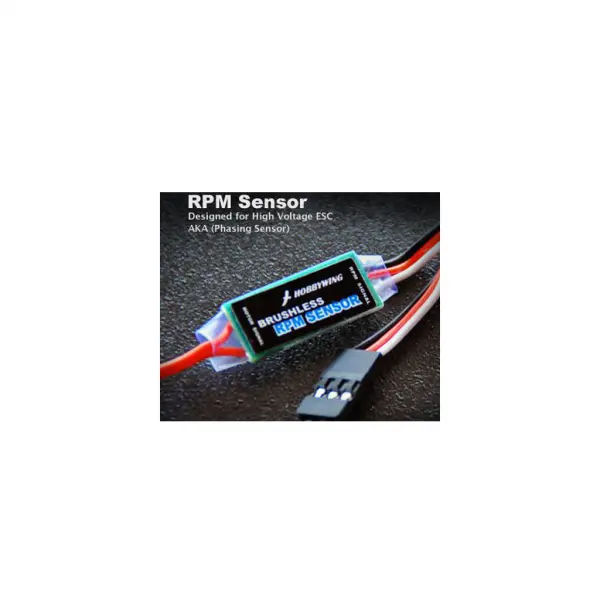

Hobbywing RPM Sensor
Brand: Hobbywing
Part No: HW86060041
In Stock: Usually ships same day
The Hobbywing RPM Sensor (HW86060041) detects voltage changes on the phase wires of a brushless motor and outputs a clean RPM signal for governor functions in RC helicopters. Compact and lightweight, it provides reliable rotor speed feedback when used with compatible control systems.
It is supplied as standard with select Hobbywing ESCs including Platinum-120A-HV, Platinum-70A-HV, FlyFun-100A-HV and FlyFun-80A-HV.
Key Features
- Detects brushless motor phase voltage and outputs an RPM signal
- Designed for helicopter governor applications
- Wide operating range and low current draw
- Compact 6 g unit for easy installation
Specifications
- Size: 23 x 10 x 2 mm (L x W x H)
- Weight: 6 g (including input/output wires)
- Working voltage: 3.5–8.4 V (1S–2S LiPo)
- Current draw: 1–5 mA
- Supported motor wire voltage: 2–14S LiPo
- RPM range (2‑pole brushless motor): 1,000–300,000 rpm
- Operating temperature: 0–50°C (32–122°F)
Suggested Compatibility
- Mikado VBar governor systems
- Hobbywing Platinum-120A-HV
- Hobbywing Platinum-70A-HV
- Hobbywing FlyFun-100A-HV
- Hobbywing FlyFun-80A-HV
Secured by Stripe
This Hobbywing RPM Sensor detects the voltage changes at the wires of brushless motor, and then outputs the RPM signal. This RPM sensor can work with some speed control systems for helicopters. And one of its typical applications is to work as the RPM sensor for V-Bar system made by Mikado.
It is included as standard equipment with the Platinum-120A-HV, Platinum-70A-HV, FlyFun-100A-HV and FlyFun-80A-HV ESC's. The Hobbywing RPM sensor is compatible with any firmware of the above ESC's, that means if you use Hobbywing RPM sensor, the above ESC's are always compatible with V-Bar governor function.
Spec Check:
- Size: 23mm(L)*10mm(w)*2mm(H)
- Weight: 6g (Input and output wires are included)
- Working voltage: 3.5V to 8.4V(1S to 2S Lipo)
- Current: 1 to 5mA
- Voltage range of the motor wires: 2 to 14S Lipo
- RPM range (for 2 poles brushless motor): 1000rpm to 300000rpm
- Working temperature: 0 to 50 Celsius degree or 32 to 122 Fahrenheit degree
Key Info:
- Brand: Hobbywing
- Part No: HW86060041
- Barcode: 6938994400244
