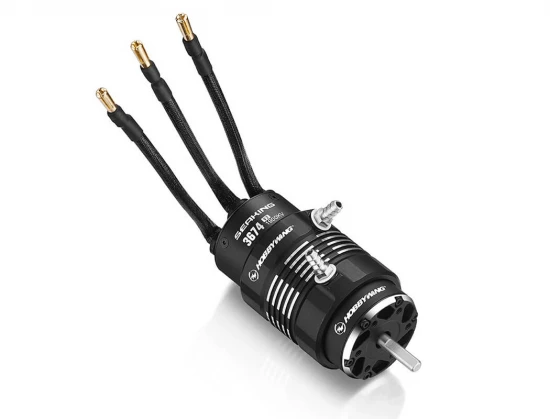

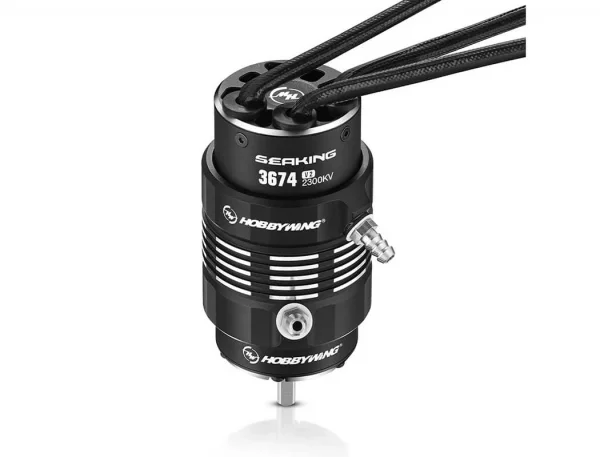

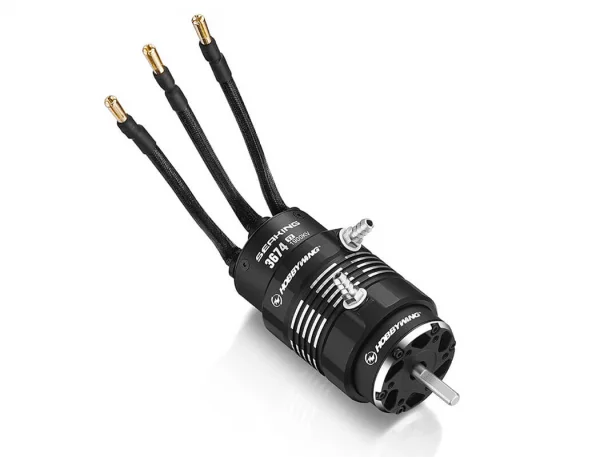

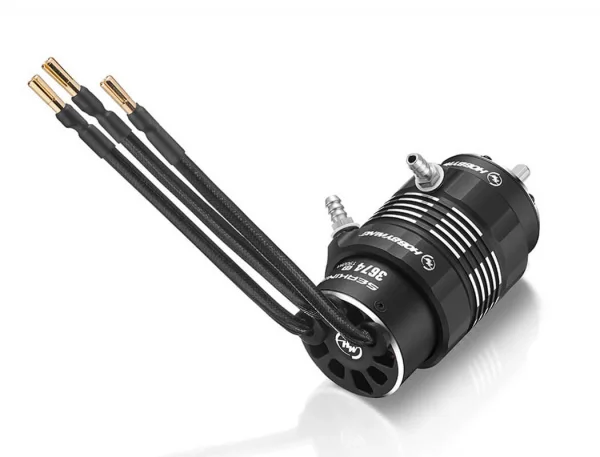

Hobbywing Seaking 3674SL 2300KV Motor V2 HW30419009

The Hobbywing Seaking 3674SL 2300KV Black Motor V2, part number HW30419009, is a sensorless brushless motor for model boats. It uses a four-pole design and has a 2300KV rating, with a stated input voltage range of 2-6S. A water-cooling jacket surrounds the motor to support cooling during operation, while the modular construction allows the motor to be opened for maintenance.

The motor has a CNC aluminium case, high-temperature coils, a Kevlar-wrapped rotor and an ultra-thin silicon steel sheet. Its stainless steel shaft runs on front and rear bearings, and the supplied specifications give a 5 mm shaft diameter. Hobbywing lists suggested compatibility with the SEAKING V4 ESC range, including the SEAKING 120A V4, for setups intended to deliver increased speed and power output when the components are paired.

Features

This motor is specified for boats up to 100 cm in length and provides smooth startup according to the manufacturer. The water-cooling jacket, modular layout and stated construction details make its configuration clear for model boat installations where a sensorless brushless power system is required.

Specifications

• Motor type: Sensorless brushless
• Pole count: 4
• KV rating: 2300KV
• Input voltage: 2-6S
• Motor diameter: 36.5 mm
• Motor length: 74 mm
• Shaft diameter: 5 mm
• Weight: 372 g
