Hobbywing Seaking 4082SL 1700KV Motor HW30419004
Brand: Hobbywing
Part No: HW30419004
Expected Tue 10 Nov
Request Stock NotificationFinance options available at checkout.
You May Also Need
Add-ons and accessories that go with the Hobbywing Seaking 4082Sl 1700Kv Black Motor V2
Description

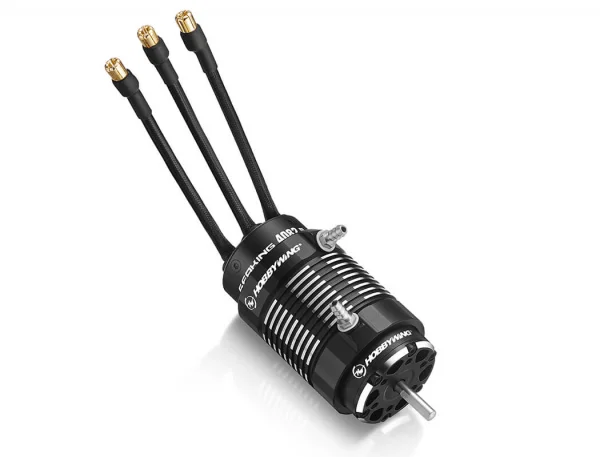

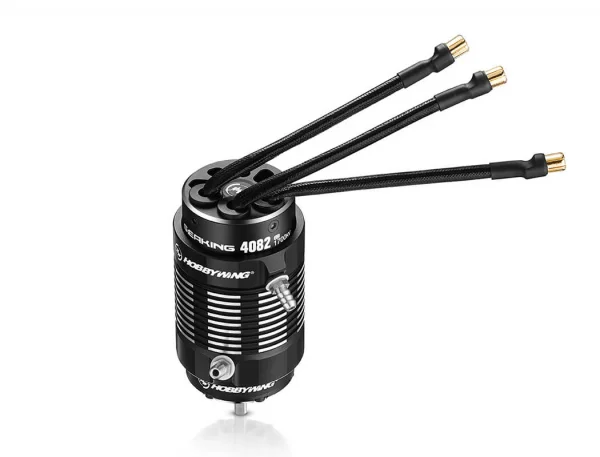

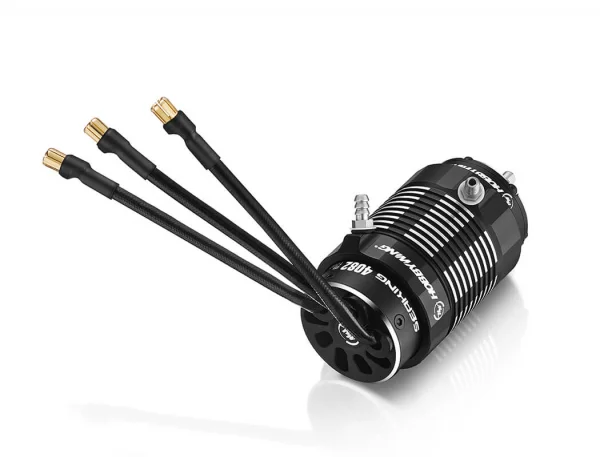

The Hobbywing Seaking 4082SL 1700KV Black Motor V2, part number HW30419004, is a sensorless brushless motor for boat applications. It combines a 1700KV rating with a four-pole design and a water-cooling jacket to support smooth startup during use.
Features

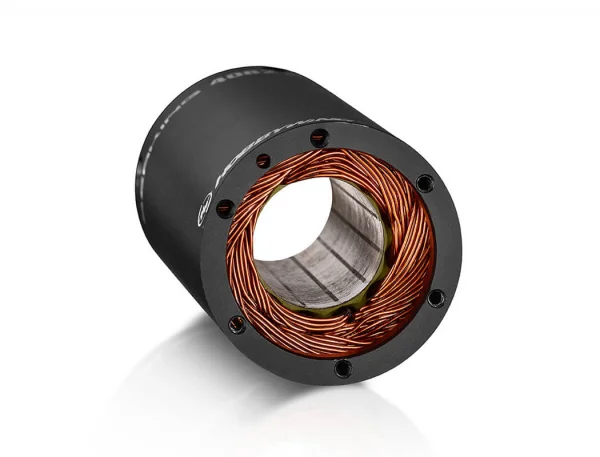

This motor has a CNC aluminium case, high-temperature coils, a Kevlar-wrapped rotor, ultra-thin silicon steel sheets, a stainless-steel shaft and bearings. Its modular construction is intended to make maintenance more straightforward. For suggested compatibility, Hobbywing identifies the Seaking V4 ESC, with the Seaking 160A V4 listed in the manufacturer’s specifications.

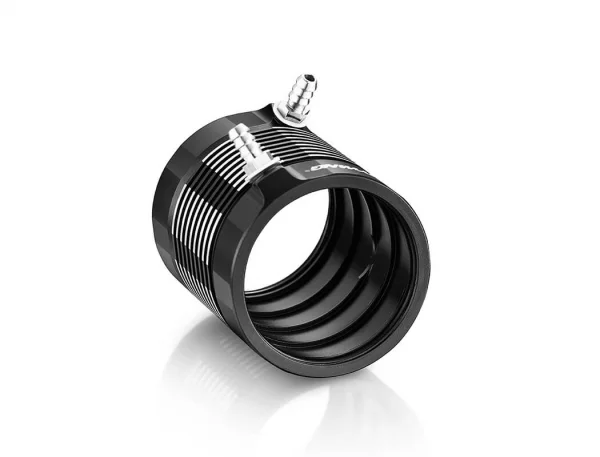

The water-cooling jacket is integrated into the motor housing, while the sensorless design provides a straightforward connection for compatible boat electronics. The stated application is for boats up to 120 cm in length, with a 3-8S input voltage range.
Specifications
- Motor type: Brushless, sensorless
- Pole count: 4
- KV rating: 1700KV
- Input voltage: 3-8S
- Motor diameter: 40 mm
- Motor length: 82 mm
- Shaft diameter: 5 mm
- Weight: 490 g
Secured by Stripe
Specifications
- Powerful output with smooth startup, perfect for boats.
- Eye-catching water cooling jacket with excellent cooling performance.
- Optimised ESC Compatibility: Designed for seamless integration with the SEAKING V4 ESC, enabling higher speeds and increased power output when paired.
- Durable build: CNC aluminium case, high-temp coils, Kevlar-wrapped rotor, ultra-thin silicon steel sheet,stainless shaft, and premium bearings.
- Modular design for easy maintenance.
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensorless
Pole: 4
KV: 1700KV
Input Voltage: 3-8S
No-load Current(A): 5.6A
O.D.(mm): 40
Length (mm): 82
Shaft Diameter (mm): 5
Weight (g): 490g
Front Bearing(mm): D16*D5*T5
Rear Bearing(mm): D13*D5*T4
ESC: Seaking 160A V4
Boat Applicable: Boat Length ≤120cm
Key Info:
- Brand: Hobbywing
- Part No: HW30419004
- Barcode: 6938994404068
