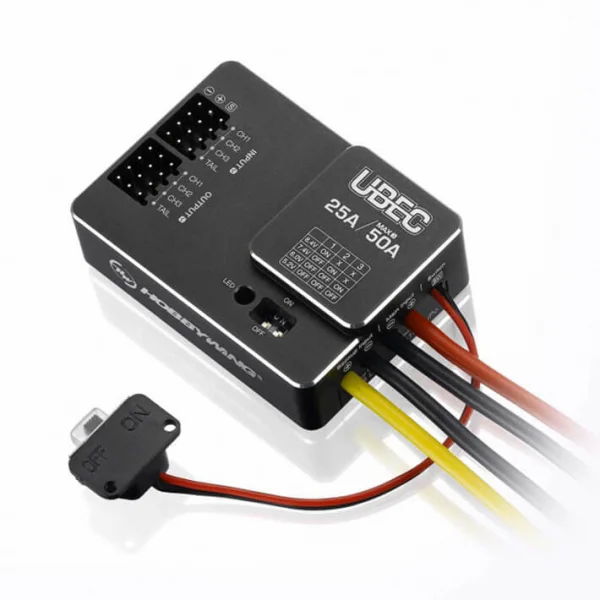

Hobbywing UBEC 25A HV

Brand: Hobbywing

Part No: HW30606000

£61.74 ~~RRP £64.99~~

Shadow Stock: Usually ships next day

Request Price Match Ask a Question Write a Review

The Hobbywing UBEC 25A HV (HW30606000) is a high‑efficiency, switch‑mode regulator designed for demanding RC power systems. Its elegant metal case improves heat dissipation and reduces electromagnetic interference, while a high‑performance DC‑DC controller delivers conversion efficiency of over 90%.

Key Features

Continuous 25A output with 50A peak capability
Wide input range: 3S–18S LiPo (approx. 9–80V)
Adjustable output voltage: 5.2V, 6.0V, 7.4V or 8.4V
External switch for convenient on/off control
Up to 8 parallel output channels for higher current handling
LED indicators show operating status and abnormalities
Metal enclosure for improved cooling and reduced interference
High‑efficiency DC‑DC design (>90% conversion efficiency)

Protections & Reliability

Shoot‑through protection to prevent main supply voltage from reaching the output in the event of UBEC damage
Over‑current, output short‑circuit, overheat and low‑voltage cutoff protections
Backup power switching‑in function keeps devices powered from a secondary supply if the main source or UBEC fails

Power Inputs

Main power supply: 3S–18S LiPo (9–80V)
Backup power supply: 1S–2S LiPo (3–9V)

Wires & Connectors

Main input wires: Red 16AWG 270mm / Black 16AWG 270mm
Backup input wires: Yellow 16AWG 150mm / Black 16AWG 150mm
Output: 3P vertical pin header with 60‑strand PVC wire and 3P JR‑type male connectors (100mm)
Input/Output connectors: not pre‑fitted

Type, Size & Weight

Type: Switch‑mode, High Voltage (HV)
Dimensions: 55 × 40.2 × 17.6 mm
Weight: 74 g

Free Shipping

On UK Orders over £100

Happy to Help

Helpful, friendly advice

28 Day Returns

Easy returns process

Secure Payments

Secured by Stripe

Elegant Look & Powerful Core Component Elegant metal case helps dissipate heat and reduce electromagnetic interference. High-efficient DC-DC voltage-regulating chip pairs with the specially designed circuit hardware for the conversion efficiency of over 90%. Continuous current of 25A (w/ peak

Elegant Look & Powerful Core Component
Elegant metal case helps dissipate heat and reduce electromagnetic interference.
High-efficient DC-DC voltage-regulating chip pairs with the specially designed circuit hardware for the conversion efficiency of over 90%. Continuous current of 25A (w/ peak current of up to 50A) meets various application requirements.
Various Functions & Different Applications
External switch allows users to easily switch on/off the UBEC. Wide voltage range allows the main power supply ranges from 3S to 18S LiPo to be connected to the UBEC. Output voltage adjustable between 5.0V, 6.0V, 7.4V and 8.4Vmeets different voltage requirements. Up to 8 channels of outputs (in parallel) can endure higher current. And the internal LED indicators can indicate the working status or abnormalities of the UBEC.
Multiple Protections
UBEC shoot-through protection, which prevents the voltage of the main power supply from directly flowing to the output end of the UBEC and causing any damage to the connected electronic device when the UBEC is accidentally damaged, plus the protections like over-current, (output end) short-circuit, overheat,low-voltage cutoff guarantee safety and reliability.
Backup Power Supply
Backup power supply switching-in function allows the electronic device connected to the UBEC to get power directly from the backup power supply to guarantee the continuation of the normal operation when the main power supply connected to the UBEC is damaged or the UBEC fails to function due to internal faults.
Type
Linear Mode/Switch Mode - Switch mode
High Voltage/Regular - HV
Specifications
Cont./Peak Current - 25A/50A
Input Voltage (of the Main Power Supply) - 3S~18S LiPo (/9V~80V)
Input Voltage (of the Backup Power Supply) - 1S~2S LiPo (/3-9V)
Output Voltage - 5.2V/6.0V/7.4V/8.4V Adjustable
Wires & Connectors
Input Wires - Main Power Supply: Red-16AWG-270mm*1/Black-16AWG-270mm*1
Backup Power Supply: Yellow-16AWG-150MM*1/Black-16AWG-150mm*1
Output Wires - 3P Vertical Pin Header
(60-strand PVC Wire with Two 3P-JR Male Connectors-100mm*4 includedï¼‰
Input Connectors - No
Output Connectors - No
Size & Weight
Size - 55x40.2x17.6mm
Weight - 74g

Key Info:

Brand: Hobbywing
Part No: HW30606000
Barcode: 6938994400312
