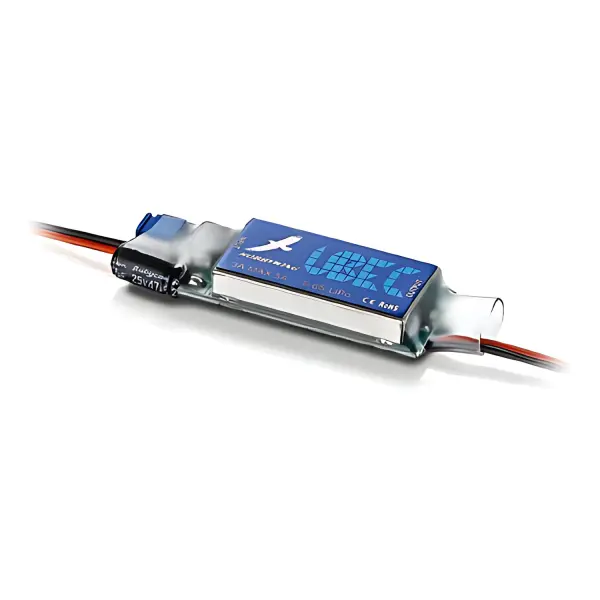

Hobbywing UBEC 3A 6S (HW86010010) – 5V/6V 3A SBEC
Brand: Hobbywing
Part No: HW86010010
In Stock: Usually ships same day
Finance options available at checkout.
Frequently Bought With
Other items customers often buy with the Hobbywing UBEC 3A 6S
Description
The Hobbywing UBEC 3A 6S (HW86010010) is an external switching-mode DC-DC regulator that provides stable receiver and electronics power from high-voltage packs. It accepts 5.5–26V input (2–6S LiPo or 5–18 cells NiMH/NiCa) and delivers a dependable 3A output at either 5V or 6V, selectable via a jumper cap. With low ripple performance and a compact, lightweight design, it is easy to integrate into space-conscious builds. It also offers suggested compatibility with different brands of ESCs.
At just 43×17×7mm and 11g, this UBEC helps ensure consistent power delivery to your radio gear while isolating it from main battery voltage fluctuations.
Key Specifications
- Output Voltage/Current: 5V@3A / 6V@3A (adjust via jumper cap)
- Input Voltage: 5.5-26V (2-6S LiPo/5-18 Cells NiMH/NiCa)
- Size: 43x17x7mm (LxWxH)
- Weight: 11g
- Ripple: less than 50mVp-p (@2A/12V input)
Secured by Stripe
Hobbywing UBEC 3A 6S Manuals & Guides
Specifications
HOBBYWING UBEC 3A 6S
This UBEC is an external switching mode DC-DC regulator; it draws DC voltage from 2-6S LiPo battery, drops it to a voltage level that is suitable for your receivers and other electronic devices, and keeps providing the stable current output of 3Amp. It’s compatible with different brands of ESCs.
Spec Check:
- Output Voltage/Current: 5V@3A / 6V@3A (adjust via jumper cap)
- Input Voltage: 5.5-26V (2-6S LiPo/5-18 Cells NiMH/NiCa)
- Size: 43x17x7mm (LxWxH)
- Weight: 11g
- Ripple: less than 50mVp-p (@2A/12V input)
Key Info:
- Brand: Hobbywing
- Part No: HW86010010
- Barcode: 6938994400107
Delivery & Returns
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Customer Reviews
No specific product reviews yet, why not write one?Questions & Answers
That will work in between the receiver and servo to change the voltage if needed on most vehicles , it will not work with esc/receiver combination units though.
For more in depth queries, please contact us.
