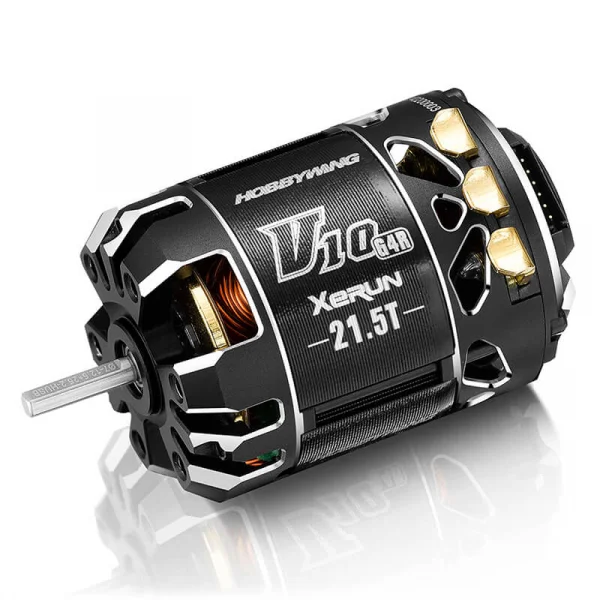

Hobbywing Xerun V10 21.5T G4R Black Motor
Brand: Hobbywing
Part No: HW30401747
Out Of Stock
Request Stock NotificationThe Hobbywing Xerun V10 21.5T G4R Black Motor (HW30401747) delivers a clear step up in stock-class performance. Compared with comparable motors, it offers up to 9% more power and 7% more speed; even over the previous G4, efficiency gains translate to an additional 4% performance boost on the track. Designed for 1/10 stock racing, it provides first-class, linear power delivery in a quiet, durable package.
An exposed stator core, a completely redesigned rotor and enlarged ventilation windows improve airflow, increasing the cooling area by more than a quarter versus the G4. High-temperature internal wiring is rated up to 220°C, while newly added nylon shims reduce noise and wear for smoother running. Two sensor ports simplify neat cable routing, and finely adjustable mechanical timing lets you tune between 20° and 60°. The motor can also be easily dismantled for maintenance, with an optional rotor available for further personalisation.
Key Features
- Up to 9% more power and 7% more speed than comparable motors
- 3% lower internal resistance and higher efficiency than the Xerun V10 G4
- Quiet operation with long service life
- First-class, linear power delivery
- Weight- and cooling-optimised housing with exposed core
- High-quality components and high-temperature wiring (up to 220°C)
- Finely adjustable mechanical timing
- Dual sensor ports for flexible wiring
- Easily dismantled for maintenance
Specifications
- Type: Brushless, sensored
- Poles: 2
- Turns: 21.5T
- Timing (adjustable): 20°–60°
- Outer diameter: 35.8 mm
- Length: 51.3 mm
- Shaft diameter: 3.17 mm
- Shaft length: 13.9 mm
- Application: 1/10 stock
Secured by Stripe
HOBBYWING XERUN V10 21.5T G4R BLACK MOTOR
The Xerun V10 G4R motor from Hobbywing ensures outstanding performance on the track. With up to 7% more speed and 9% higher performance, it stands out clearly from comparable motors that are being used in similar situations. Even compared to the G4 predecessor, the improvement in performance is still an increase of 4%, offering an excitingly powerful driving experience in every 1/10 stock race.
The G4R motor manages to dissipate its heat through an optimised airflow thanks to the exposed core and the completely new rotor design. For this purpose, the outer diameter and total area of the G4 predecessor were increased by more than a quarter in order to effectively cool the engine and quickly dissipate the heat to the outside. And even if it does get a little hotter: the wiring inside the motor for example can withstand temperatures of up to 220°C. And the newly installed nylon shims also reduce the overall noise level and are particularly wear-resistant components.
You are also free to install the motor according to Your own needs. For example, there are two sensor connections to make the cable routing as space-saving as possible. if You place even more value on personalisation, you can use the optional rotor to make the motor ready for particularly demanding competitions.
Features
- 9% more power and 7% more speed than comparable engines
- 3% lower internal resistance an higher efficiency than the Xerun V10 G4
- Quiet motor with a long service life
- First-class, linear power delivery
- Weight and cooling-optimized housing
- High-quality components
- Finely adjustable mechanical timing
- Easily dismantled for maintenance
Specifications
Type: Brushless / Sensored
Poles: 2
kV-Rating: -
Turns: 21.5T
LiPo Cells: -
Power max.: -
Ampere max.: -
No-Load Current: -
Outer Diameter: 35.8mm
Length: 51.3mm
Shaft Diameter: 3.17mm
Shaft Length: 13.9mm
Weight: -
Timing (Adjustable): 20°-60°
Application: 1/10 Stock
Key Info:
- Brand: Hobbywing
- Part No: HW30401747
- Barcode: 6938994429160
