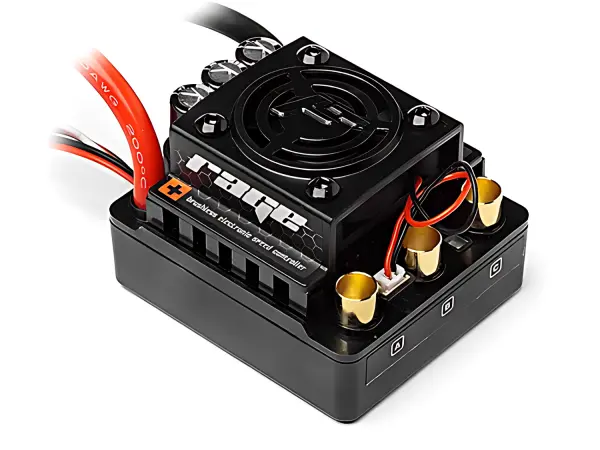

HPI Flux Rage 1:8 Scale 80 AMP Brushless ESC

HPI Flux Rage 1:8 Scale 80 AMP Brushless ESC

Brand: HPI

Part No: HPI-101712

£116.99 RRP £129.99

Shadow Stock: Usually ships within 4-5 days

Collect Instore
Request Price Match Ask a Question Write a Review

The HPI Flux Rage 1:8 Scale 80 Amp Brushless ESC (HPI-101712) delivers robust, sensorless power control for demanding 1/8 applications. Built to handle the rigours of rallycross buggy and truggy use as well as hard bashing, it also suits powerful crawling setups thanks to dedicated running modes. With extensive tuning options and multiple protection features, the Flux Rage gives you confident, consistent performance run after run.

Key Features

  • 80A continuous current with 380A burst for strong acceleration
  • Sensorless design optimised for reliability and ease of setup
  • Fully programmable braking, timing and punch to tailor throttle feel
  • Low-voltage cut-off and thermal shutdown help protect your electronics
  • Easy one-button programming; compatible with HPI #101280 Program Card

Running Modes

  • Racing: Forward and Brake only
  • Forward, Reverse and Brake
  • Forward and Reverse (no brake) for rock crawling

Tuning and Adjustability

  • Proportional ABS brake with 4 steps of brake force adjustment
  • 8 steps of drag-brake force adjustment
  • 4 steps of initial brake force adjustment
  • 4 steps of reverse force adjustment
  • 8 steps of motor timing adjustment
  • 9 soft start (punch) settings from soft to aggressive

Protection & Setup

  • Low voltage cut-off protection for LiPo or NiMH/NiCd batteries
  • Overheat protection for the ESC via integrated thermostat
  • Simple setup with a single button or the pocket-sized #101280 2 in 1 Professional Program Card

Specifications

  • Continuous Current: 80A
  • Burst Current: 380A
  • Batteries: 6–12 cell NiMH or 2–4 cell LiPo
  • BEC Output: 6V / 1.5A
  • Dimensions: 47.6 x 54.5 x 37.1 mm
  • Weight: 105 g
  • Motor Type: Sensorless brushless

Suggested Compatibility

  • 1/8 rallycross buggies and truggies
  • Powerful crawling machines using forward/reverse-only mode

Whether you’re racing or bashing, the HPI Flux Rage HPI-101712 offers dependable power delivery and the tuning flexibility to match your driving style.

Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

Fit your car or truck with the latest high-power speed controller from the HPI Flux range!

The Flux Rage is a tough 1/8th scale brushless ESC that's designed to take the rigors of rallycross buggy and truggy racing and bashing. Run this speedo to its limits and it just keeps coming back for more! Have a blast with the normal forward/reverse/brake mode or switch it into race mode for maximum power - you can even use this in powerful crawling machines with the forward/reverse only mode for no braking action![setion2]

Fully programmable ABS, drag brake, braking force, reverse force, motor timing and punch allows you to totally customize the feel of the Rage to your driving style and needs. You can even use the HPI #101280 programmer to make the adjustments even easier.

A low-voltage cut-off protects the battery pack, and the controller is protected by a thermostat that automatically shuts it down in the case of overheating.

Continuous Current 80A
Burst Current 380A
6-12 cell NiMH or 2-4 cell LiPo
BEC Output 6v/1.5A
Dimensions 47.6 x 54.5 x 37.1mm
Weight: 105g
Sensorless

Three Running modes:
Racing (Forward and Brake only)
Forward, Reverse and Brake
Forward and Reverse (no brake) for rock crawling

Totally programmable
Proportional ABS brake function with 4 steps of brake force adjustment, 8 steps of drag-brake force adjustment, 4 steps of initial brake force adjustment, 4 steps of reverse force adjustment, 8 steps of motor timing adjustment and 9 soft start (punch) mode settings from soft to aggressive.

Multiple protection features:
Low voltage cut off protection for LiPo or NiMH/NiCd battery
Overheat protection for the ESC

Easy programming with only one setup button, and is compatible with the pocket sized #101280 2 in 1 Professional Program Card



Key Info:
  • Brand: HPI
  • Part No: HPI-101712
  • Barcode: 4944258003153
  • Motor Type: Brushless
  • Fitment: Standard Part
  • LiPo Compatible: Yes
Free Shipping

This item is over £100, so qualifies for free standard UK shipping!

Express Shipping

Upgrade to next day from £3

Worldwide Shipping

Available at checkout

Reviews
No specific product reviews yet, why not write one?
WRITE A REVIEW
All reviews are subject to moderation
Questions & Answers
Real questions from real customers. Why not ask your own?
Do you have a replacement power switch for this, or a wiring diagram or know of another switch that will work? thanks
Barnaby Platt / 18th March 2020

I'm afraid not sorry...!

Ben @ Wheelspin Models
Hi will this fit my hpi wr8 flux and able to tske 11.1v 3s LiPo
Wayne Goodchild / 2nd September 2019

The original ESC is HPI-106767 but that is currently unavailable. This one should work fine on 3S - although is physically larger so may be a bit of a squeeze.

Ben @ Wheelspin Models
