Hudy Brushless RC Fan 40mm
Brand: Hudy
Part No: DY293111
£17.09
RRP £17.99
Shadow Stock: Usually ships next day

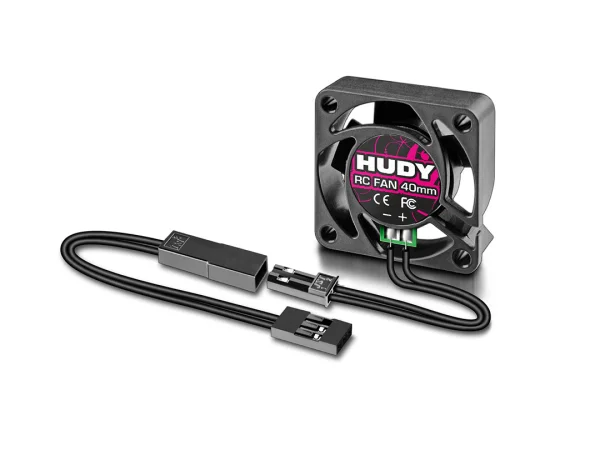

The Hudy Brushless RC Fan 40mm (DY293111) is a reliable cooling solution for RC electronics. Brushless and bearing-equipped, it delivers high airflow in a compact 40mm footprint. Operating at 6.0–8.4V with a low 0.2A draw, it spins at approximately 14,000–15,000 rpm and includes a 200mm cable. Weight: 15.25g.
Features
- Brushless, bearing-equipped design for smooth, efficient running
- Compact 40mm size for RC electronics cooling
- Earlier versions featured solder tabs for easy cable replacement
- Update: newer batches include a fixed short lead with an additional extension cable
Notes & Installation
- Do not overheat solder tabs when soldering; overheating may cause irreversible damage
- Mount using four screws to help prevent breakage
- Alternatively, use double-sided tape on a separate graphite plate
Specifications
- Voltage range: 6.0–8.4V
- Current: 0.2A
- Speed: approx. 14,000–15,000 rpm
- Size: 40mm
- Cable length: 200mm
- Weight: 15.25g
Secure Payments
Secured by Stripe
Extremely reliable 40mm RC fan for RC electronics cooling. The fan features solder tabs for quick & easy cable replacement. This fan has a brushless design, is bearing equipped, and comes with a 200mm cable. The weight is 15.25g, voltage range 6~8.4V 0.2A and speed 14000 - 15000 rpm.
Update - please note that new batch of fans does not include the outside soldering tab but rather a fixed short cable with an additional extension cable.
Note: Please, be careful to not overheat the solder tabs when installing or replacing the cable. Overheating can melt the solder tabs causing irreversible damage and leaving the product non-functional.
Due size of the fan it is important that the fan is mounted with 4 screws to avoid any breakage. Or use a double-sided tape to install the fan on a separate graphite plate installed in your car.
The operational range is between 6.0V – 8.4V
Key Info:
Update - please note that new batch of fans does not include the outside soldering tab but rather a fixed short cable with an additional extension cable.
Note: Please, be careful to not overheat the solder tabs when installing or replacing the cable. Overheating can melt the solder tabs causing irreversible damage and leaving the product non-functional.
Due size of the fan it is important that the fan is mounted with 4 screws to avoid any breakage. Or use a double-sided tape to install the fan on a separate graphite plate installed in your car.
The operational range is between 6.0V – 8.4V
Key Info:
- Brand: Hudy
- Part No: DY293111
- Barcode: 8581702931110
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
All reviews are subject to moderation
Questions & Answers
Real questions from real customers. Why not ask your own?
Hi, do these come with connection?
Edward / 10th October 2022
Yes, they will have a 2pin JST style connector.
Si @ Wheelspin Models
