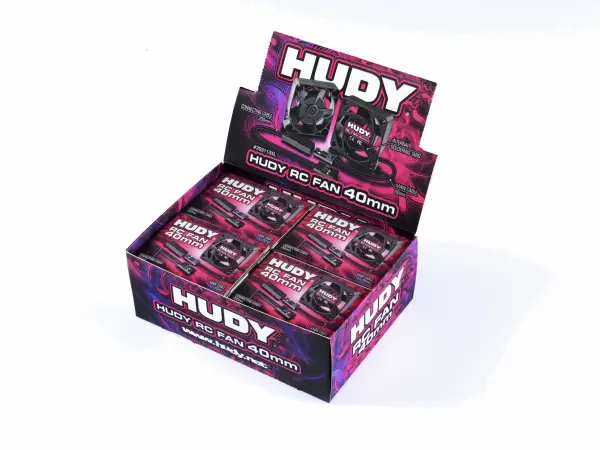

Hudy Brushless RC Fan 40mm W Internal Soldering Tabs - Set Of 12Pcs
Just Added

Hudy 40mm Brushless RC Fan Bulk Pack of 12 - DY293113XL

Brand: Hudy

Part No: DY293113XL

£172.89 RRP £181.99
Pre-Order

Finance options available at checkout.

Request Price Match Ask a Question Write a Review

Description

The Hudy HUDY BRUSHLESS RC FAN 40MM w INTERNAL SOLDERING TABS - SET OF 12PCS, part DY293113XL, is a pack of 12 40mm brushless RC fans for cooling RC electronics. Each fan uses a bearing-equipped brushless design and has internal soldering tabs for connecting the cable. The fans are supplied with black positive and negative cables, with the positive wire identified by white stripes.

The operational voltage range is 6.0V to 8.4V, so polarity should be checked carefully before connecting or soldering. These fans do not have polarity protection and may be damaged if connected incorrectly for an extended period. Take care not to overheat the soldering tabs during installation or cable replacement, as excess heat can melt them and leave the fan non-functional.

The stated cable length is 200mm. On updated batches, the external soldering tab may be replaced by a fixed short cable supplied with an additional extension cable, so the cable arrangement can vary between batches. For mounting, use four screws to help prevent breakage due to the fan size, or attach the fan with double-sided tape to a separate graphite plate installed in the RC car.

Specifications

  • Fan diameter: 40mm
  • Voltage range: 6.0V–8.4V
  • Current draw: 0.2A
  • Speed: 14,000–15,000 rpm
  • Weight per fan: 15.25g
  • Cable length: 200mm
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

Specifications

Extremely reliable 40mm RC fan for RC electronics cooling. The fan features internal soldering tabs. This fan has a brushless design, is bearing equipped, and comes with a 200mm cable. The weight is 15.25g, voltage range 6~8.4V 0.2A and speed 14000 - 15000 rpm.

Update - please note that new batch of fans does not include the outside soldering tab but rather a fixed short cable with an additional extension cable.

Note: Please, be careful to not overheat the solder tabs when installing or replacing the cable. Overheating can melt the solder tabs causing irreversible damage and leaving the product non-functional.

Due size of the fan it is important that the fan is mounted with 4 screws to avoid any breakage. Or use a double-sided tape to install the fan on a separate graphite plate installed in your car.

The operational range is between 6.0V – 8.4V
Important Notice
This fan is supplied with black cables for both positive and negative connections to maintain a clean and minimalistic appearance.
The positive (+) wire is identified by white stripes for easier recognition.
Please ensure correct polarity before connecting or soldering the fan cables.
The fan does not include polarity protection and may be damaged if connected incorrectly for an extended period.
The use of this fan is at the customer’s own risk. We do not accept responsibility for damage caused by incorrect polarity connection.



Key Info:
  • Brand: Hudy
  • Part No: DY293113XL
  • Barcode: 858170293113493
