Description

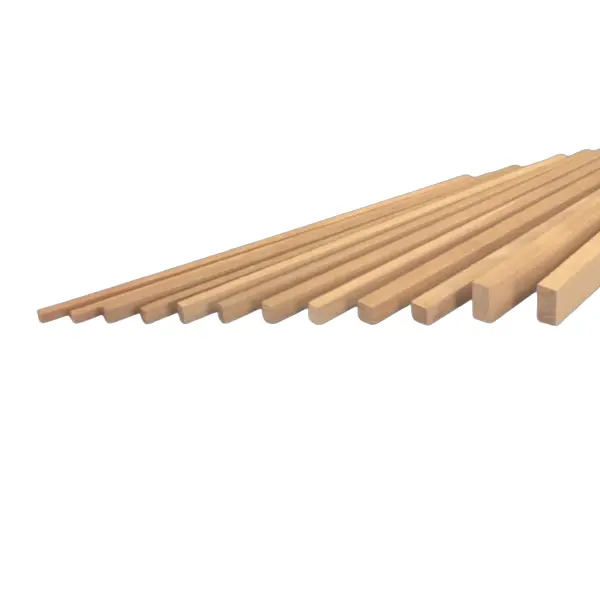

J Perkins 3/8 X 1/2 Engine Bearer, part number 5521220, is a spruce engine bearer for model construction and engine mounting. It has a 3/8 x 1/2 inch profile and is supplied in a 12-inch length, providing a shaped timber section for building a model powertrain structure.
Engine bearers provide a mounting surface for engine feet and firewalls, helping to maintain alignment between the engine and the propeller or drive shaft. The spruce construction combines low weight with stiffness and strength, while its long, straight grain helps resist the effects of vibration from internal combustion engines. This makes the bearer suitable for use where the surrounding airframe needs support around the engine installation.
Features
The wood can be cut, drilled and shaped using standard hobby tools, allowing the bearer to be adapted for a particular engine mount or thrust line. Its 3/8 x 1/2 inch section is one of the available bearer profiles, alongside other sizes in the range. Suggested applications include model aircraft and marine models where a timber engine bearer is required.
The 12-inch length gives material for positioning and trimming during construction. The bearer is brown wood with a bar profile, and its dimensions and weight are shown below for comparison when planning an installation.
Specifications
- Profile: 3/8 x 1/2 inch bar
- Length: 12 inches / 305 mm
- Height: 13 mm / 0.50 inch
- Width: 10 mm / 1/2 inch
- Weight: 30 g
Secured by Stripe
Specifications
Engine Bearer
Exceptional Strength-to-Weight Ratio: Spruce offers the ideal balance—it's significantly lighter than traditional hardwoods (like Beech), yet provides superior stiffness and strength, ensuring your model’s weight remains low without compromising on durability.
Vibration Resistance: The long, straight grain structure of Spruce provides excellent rigidity, which is crucial for dampening the high-frequency vibration produced by internal combustion engines, protecting the surrounding airframe from fatigue damage.
The Structural Backbone: Engine bearers are the most critical structural part of the model's power train. They provide a solid, true surface for mounting engine feet and firewalls, ensuring perfect alignment of the propeller or drive shaft.
Easy to Work: Despite its strength, Spruce cuts cleanly and can be drilled and shaped with standard hobby tools, allowing you to easily customise the fit for your specific engine mount or thrust line requirements.
- Sizes: 3/8 × 3/8in, 3/8 × 1/2in, 1/4 × 3/8in, 1/4 × 1/4in, 1/4 × 1/2in, 1/2 × 1/2in, 1/2 × 3/4in, 1/2 × 1in
- Length: 12in
J Perkins 3/8 X 1/2 Engine Bearer Key Features:
- Exceptional Strength-to-Weight Ratio: Spruce provides a superior alternative to heavier hardwoods like beech, offering the critical stiffness and structural integrity required for high-stress powertrains while keeping overall model weight to a minimum.
- Vibration-Dampening Grain: Featuring a long, straight grain structure, these bearers are specialised to absorb and dampen high-frequency engine vibrations, protecting airframes and sensitive electronics from fatigue damage.
- Precision Mounting Surface: Acts as the structural backbone of the model, providing a perfectly true and solid surface for mounting engine feet and firewalls, ensuring precise alignment of the drive shaft or propeller.
- Professional Workability: Despite its high rigidity, spruce remains easy to drill, shape, and cut with standard hobby tools, allowing for effortless customisation of thrust lines and engine mount configurations.
- Standard 12-Inch Formatting: Supplied in versatile 304mm (12-inch) lengths and a comprehensive range of profiles—from delicate 1/4in squares to robust 1/2 x 1in sections—to suit a variety of scale aircraft and marine models.
J Perkins 3/8 X 1/2 Engine Bearer Tech Specs:
- Weight: 30g / 1.06oz
- Shipping Weight: 0.03kg / 0.07lbs
- Product Height: 13mm / 0.50in
- Product Width: 10mm / .500 (1⁄2)in
- Product Length: 305mm / 12in
- Age Recommendation: 14+
- Colour: Brown
- Material: Wood
- Profile: Bar
Key Info:
- Brand: J Perkins
- Part No: 5521220
- Barcode: 5051121032369
