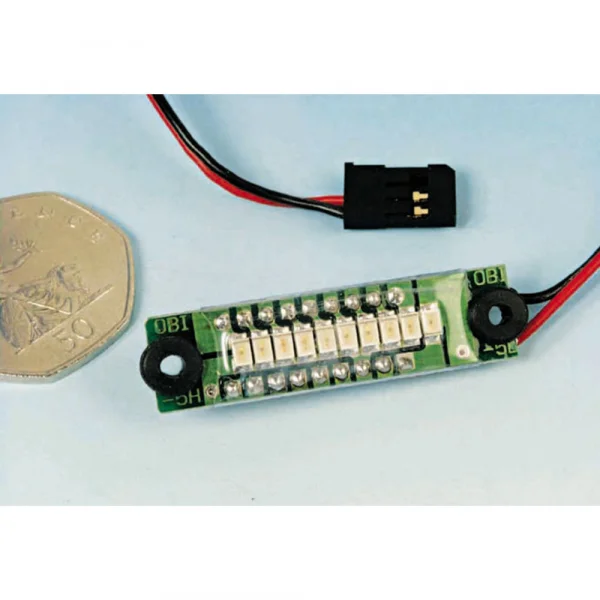

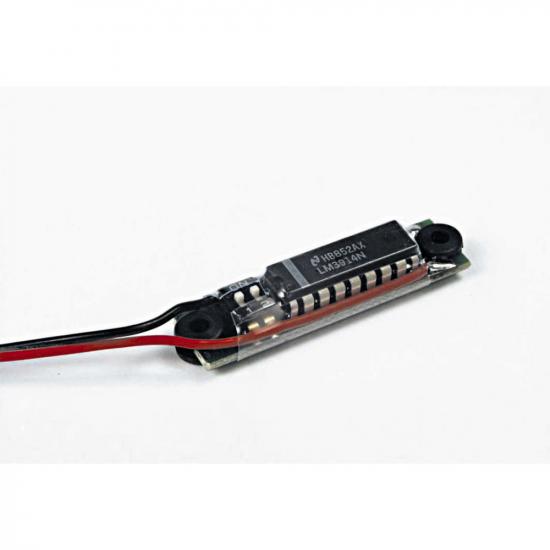

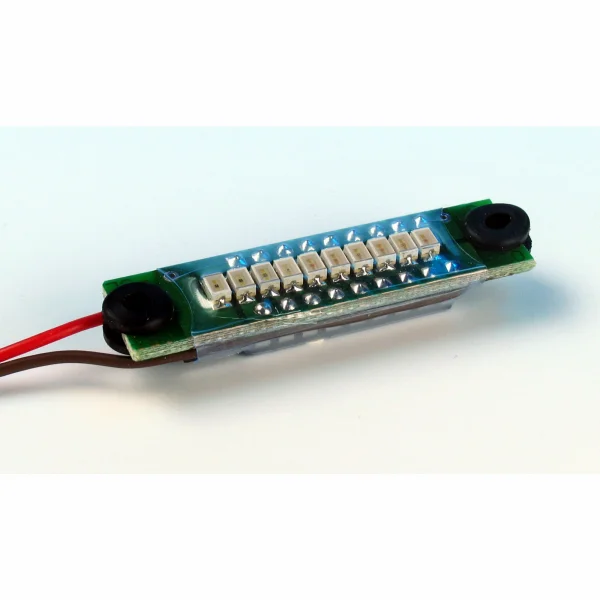

J Perkins JP Nimh Battery Checker 4-7 Cell (4.8V-8.4V)

The J Perkins JP NiMH Battery Checker 4–7 Cell (4.8V–8.4V) is a compact 10‑LED monitor designed to provide a quick visual indication of your pack status. It supports 4, 5, 6 or 7 cell NiMH battery packs, with cell count selected using the two sub‑miniature toggle switches located on the rear of the PCB.

Key Features

• 10‑LED battery status display
• Supports 4, 5, 6 or 7 cell NiMH packs
• Cell count pre‑selection via two rear sub‑miniature toggle switches
• Compact, lightweight design in black

Tech Specs

• Voltage range: 4.8–8.4V
• Shipping weight: 0.01kg (approx.)
• Colour: Black
• Part number: 4444505

Ideal for quick bench or field checks, this straightforward checker from J Perkins helps you keep an eye on your NiMH pack condition at a glance.
