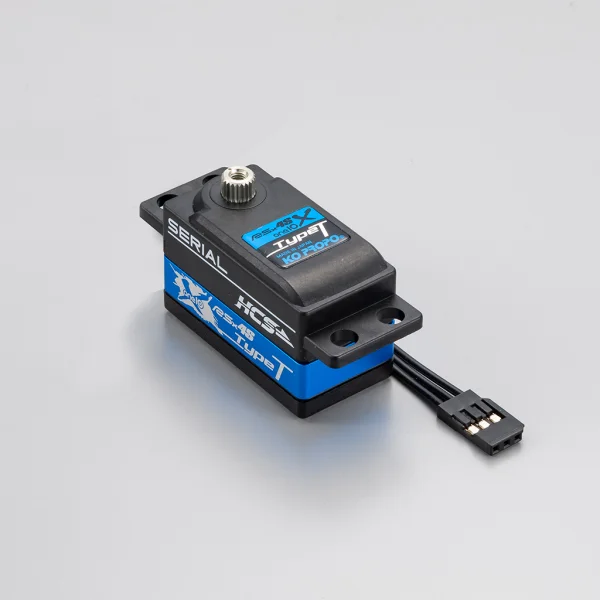

KO RSx4S - One10X Type-T

The One10X, which has been well received for its smooth cornering characteristics and low current consumption, has been pre-installed with a model memory specialized for Tamiya machines. We also changed the colour of the middle case heatsink to light blue.

Model 1: For mini-chassis rear-wheel drive vehicles(M06/08), DD machines(F104), and other reproduction machines
Model 2: For mini-chassis front-wheel drive vehicles(M05/07), WR/GF series, lunch boxes, etc. (default)
Model 3: Resin chassis touring car (TA/TB), for 2WD buggy(TD2)
Model 4: Carbon chassis touring car (TA07MS, TRF420/TB-EVO), for 4WD buggy (TD4/DB)
Model 5: For high-speed touring cars

Model memory is preset data registered in advance in the servo. RSx4S allows you to finely change the settings of many parameters to your liking, but five recommended data that are optimal for servos are pre-registered, so you can easily switch between the five characteristics with a simple operation. You can try it.

There are two ways to change model data.

1) Can be changed with the Servo Model Selector for 4S.

2) It can be changed by connecting to the telemetry function of EX-NEXT or the expansion unit.

Specifications
#Torque: 12.5Kg-cm Speed: 0.09sec/60deg(@7.4V)
#Torque: 11.8Kg-cm Speed: 0.10sec/60deg(@6.0V)

#Dimensions: 40.5×26×21mm (Low Profile)
#Weight: 50.5g
#Servo Lead: 180mm
#Operating voltage: 6.0～7.4V (Lipo,Life,Ni-MH)
#The hard alumite aluminum gear
#Core-less motor
#Dual ball bearings
#The hard servo gear shaft
#The aluminum heat sink middle case
#Black cable
#Gold plated connector
#Serial Compatible
#HCS Compatible

#Recommend category
each race category by Tamiya regulations.


Made in Japan.

• Brand: KO Propo
• Part No: SCH-KO30147
• Barcode: 5051294183875
• Max Voltage: 7.4v+ (LiPo)
• Gear Material: Metal
