Description

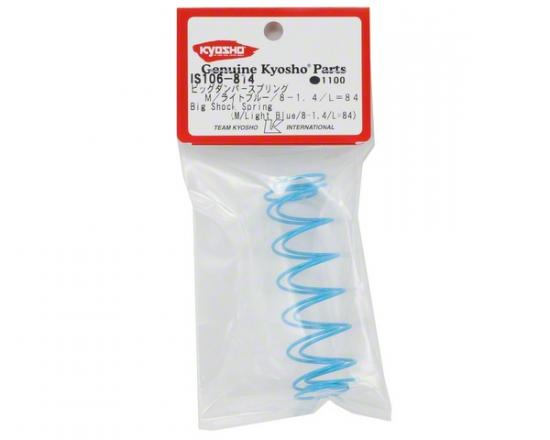

The Kyosho Big Shock Springs M 8-1.4/84mm Light Blue (2) are medium-length 84mm big bore springs designed for precise damping on 1/8-scale Kyosho platforms. Part number K.IS106-814 (IS106-814) features 1.4mm wire and an 8-turn coil. This Light Blue rate sits within Kyosho’s softer medium-length range at approximately 3.68 lb-in (659 N/m), with a lighter design versus earlier big bore springs thanks to the smaller wire diameter and lower turn count.
Key Features
- Medium-length 84mm big bore springs for refined suspension tuning
- 1.4mm wire, 8-turn Light Blue rate (approx. 3.68 lb-in / 659 N/m)
- Lighter than previous big bore springs due to reduced wire diameter and coil count
- Intended for Inferno MP9 rear when using the Medium Length rear shock tower and shocks
- Also usable as front springs on the Inferno ST-RR
- Supplied as a matched pair (2)
Specifications
- Length: 84mm (Medium)
- Wire diameter: 1.4mm
- Coils: 8 turns
- Colour: Light Blue
- Rate: ~3.68 lb-in (659 N/m)
- Quantity: 2 springs
Suggested Compatibility
- Kyosho Inferno MP9 (including TKI2, TKI3) and MP9e
- Kyosho Inferno MP777
- Kyosho Inferno ST-R, ST-RR, ST-RR EVO
Effects of Shock Spring Changes
- Softer: Increased chassis roll and traction, better in bumpy conditions, more likely to bottom out
- Stiffer: Decreased chassis roll and traction, increased responsiveness
Secured by Stripe
Specifications
This is a set of optional Kyosho 84mm Big Bore Shock Springs, and are intended for use on the rear of the Kyosho MP9 1/8 scale buggy when equipped with the Medium Length Rear Shock Tower and Shocks. These springs can also be used on the ST-RR 1/8 truck as front shock springs. These springs are made with a smaller 1.4 diameter wire, compared to the original springs that used 1.6 wire. These springs also have a lower turn count than the older big bore shock springs, which allows the spring to be lighter than the previous shock springs.
Medium Length 84mm Shock Spring Specifications:
- Softer
- IS106-9514: Yellow - 9.5 turns/1.4 wire (2.95lb-in / 527.50 n/m)
- IS106-914: Green - 9 turns/1.4 wire (3.16lb-in / 565.18 n/m)
- IS106-8514: Orange - 8.5 turns/1.4 wire (3.40lb-in / 608.65 n/m)
- IS106-814: Light Blue - 8 turns/1.4 wire (3.68lb-in / 659.38 n/m)
- IS106-1116: White - 11 turns/1.6 wire (4.11lb-in / 729.08 n/m)
- IS106-1016: Purple - 10 turns/1.6 wire (4.62lb-in / 820.22 n/m)
- IS106-916: Light Green - 9 turns/1.6 wire (5.28lb-in / 937.39 n/m)
- IS106-816: Blue - 8 turns/1.6 wire (6.16lb-in / 1093.62 n/m)
- Harder
| Shock Spring | Characteristic |
| Softer |
|
| Stiffer |
|
| Part Compatibility: | ||
Key Info:
- Brand: Kyosho
- Part No: K.IS106-814
- Barcode: 4548565144174
- Fitment: Option Part
- Fitment: Standard Part
