Kyosho KB10L VE Tacoma TRD Pro - Lunar Rock (K.34703T1B)
Brand: Kyosho
Part No: K.34703T1B
Shadow Stock: Usually ships within 4-5 days
Finance options available at checkout.
Save with a Combo Package
Our recommended kit, bundled at a combined priceFrequently Bought With
Other items customers often buy with the Kyosho KB10L VE Toyota Tacoma TRD Pro - Lunar Rock
Description
The Kyosho KB10L VE Toyota Tacoma TRD Pro in Lunar Rock blends ultra-scale realism with serious off-road performance. Built on the long-wheelbase KB10L shaft-driven 4WD chassis, this Readyset delivers confident handling and rugged durability beneath a meticulously moulded polycarbonate body. Paired with the TORX10L brushless motor and waterproof BRAINZ 10+ ESC, the KB10L VE is 3S LiPo capable and can reach top speeds of about 75 km/h. Part number K.34703T1B.
Features
- Readyset package with R/C system pre-installed and pistol-grip transmitter included

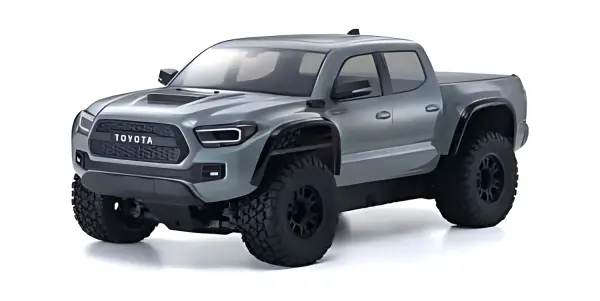

- Pre-painted and assembled Toyota Tacoma TRD Pro body for ultra-scale detail
- Newly designed body mounts conceal body pins for a cleaner, scale appearance
- LED-ready light buckets front and rear (LEDs sold separately). Recommended setups: Front 4, Rear 2 (97054-4CR x1, 97054-2B x1); or Front 4, Rear 4 with rear fog lights (97054-4B x1, 97054-4CR x1)

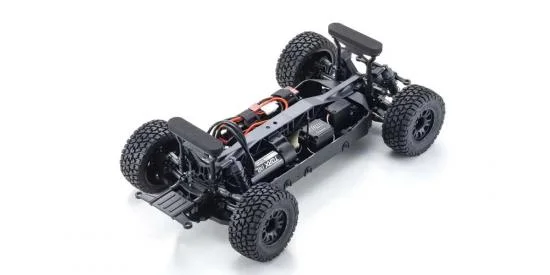

- Full-time 4WD KB10L chassis for rough-road, on-road and flat dirt running

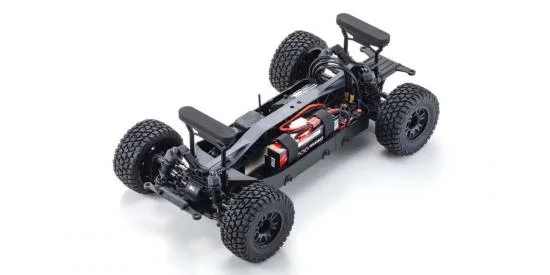

- Battery holder accepts 3S-size packs and secures with an easy on/off belt
- Includes TORX10L brushless motor and waterproof BRAINZ 10+ brushless ESC
- Three-differential layout for stability: centre diff pre-filled with #10000 oil; front and rear diffs with #5000 oil
- Full ball bearings (22) for drive efficiency and durability
- Sealed gear units and receiver box help keep out sand and dirt
- Pistol-grip Syncro KT-231P+ transmitter allows various setting adjustments
- With a compatible 3S (11.1V) LiPo, top speed is about 75 km/h
Specifications
- Length: 572 mm
- Width: 274 mm
- Height: 214 mm
- Wheelbase: 340 mm
- Tread (F/R): 224 mm
- Tyres (F/R): φ110 x 47 mm
- Gear Ratio: 10.41:1
- Weight: approx. 3,410 g
- Motor: TORX10L Brushless, kv2850
What’s Included
- Factory-assembled chassis with control linkages
- Pre-cut and painted body with decals applied
- 2.4GHz Syncro KT-231P+ transmitter
- 1.5 mm / 2.0 mm / 2.5 mm L-shaped hex wrenches
- Cross wrench
- Integrated spanner (4 / 5 / 5.5 / 7 / 10 mm)
Required to Complete
- 4 x AA batteries for the transmitter
- 2–3S LiPo drive battery (installable size approx. 143 x 47 x 30 mm)
- Compatible LiPo charger
Secured by Stripe
Kyosho KB10L VE Toyota Tacoma TRD Pro - Lunar Rock Manuals & Guides
Manuals & Guides
- K.34703T2B Kyosho KB10L VE Toyota Tacoma TRD Pro - Electric Lime Manual (Part 1)
- K.34703T2B Kyosho KB10L VE Toyota Tacoma TRD Pro - Electric Lime Exploded View (Part 1)
- K.34703T1B Kyosho KB10L VE Toyota Tacoma TRD Pro - Lunar Rock Exploded View
- K.34703T1B Kyosho KB10L VE Toyota Tacoma TRD Pro - Lunar Rock Manual
- K.34703T2B Kyosho KB10L VE Toyota Tacoma TRD Pro - Electric Lime Exploded View (Part 2)
- K.34703T2B Kyosho KB10L VE Toyota Tacoma TRD Pro - Electric Lime Manual (Part 2)
Specifications
With rugged tires and undercarriage to handle rough terrain and a large rear cargo bed, pickup trucks are in high demand throughout North America, Southeast Asia, Africa, and Australia and many popular pickup trucks have been recreated as R/C models. Toyota developed the Tacoma mainly for the North American market and it has continued to sell well since its release in 1995. This model is based on the 3rd generation Tacoma which first appeared to much acclaim in 2016 due to its aggressive styling and practicality. The top of the range Tacoma TRD Pro has been recreated by Kyosho with a tough 1/10 scale chassis in a Readyset package. Kyosho’s molding craftmanship immaculately reproduces the TRD Pro body in lightweight but rigid polycarbonate resin with the strength for hard off-road driving. Based on the off-road KB10 chassis, the long wheelbase and short tread of the KB10L chassis matches the body perfectly. The shaft-driven 4WD system reliably transfers the brute power of the TORX10L brushless motor to reach top speeds of about 75km/h under the management of the ESC (Electronic Speed Control) and a compatible 3S (11.1V) lipo battery. This convenient Readyset package contains the fun of an ultra-scale pickup truck on a dynamic off-road chassis with a finish similar in quality to premium display-only models.
●Readyset includes R/C system pre-installed on the chassis and a pistol-grip transmitter.
●Pre-painted and assembled "Toyota Tacoma TRD Pro" ultra-scale body fully captures the form of the original truck.
●Newly designed body mounts conceal body pins from the outside to realize a higher sense of scale.
●LED lights (sold separately) can be attached to the front and rear light buckets. The scale feeling is further enhanced when 4 front lights and 2 rear lights (4 if rear fog lights installed) are fully lit.
Recommended: Front 4 lights, Rear 2 lights (97054-4CR x 1, 97054-2B x 1) / With rear fog lights, Front 4 lights, Rear 4 lights (97054-4B x 1, 97054-4CR x 1)
●Full-time 4WD KB10L chassis can handle rough roads as well as on-road and flat dirt.
●Battery holder compatible with 3S size batteries. The battery is fixed with a belt that is easy to take off and on.
●Includes powerful TORX 10L brushless motor and waterproof BRAINZ 10 + brushless ESC.
●3 differential design for enhanced running stability. #10000 oil is pre-filled in the center diff and #5000 oil in the front and rear diffs.
●Full ball bearings (22) equipped for optimal drive efficiency and durability.
●Each gear unit, receiver are enclosed in a sealed box to prevent compromise from sand and dirt while driving.
●Pistol grip type Syncro KT-231P+ transmitter included allows various setting changes.
●Battery charger and battery for chassis plus 4 x AA batteries for transmitter must be purchased separately.
Requires to Complete:
●AA-size batteries x 4 for transmitter
●Battery for driving (2-3S LiPo battery *Installable battery size 143x47x30mm)
●Charger for LiPo battery
■Length 572mm
■Width 274mm
■Height 214mm
■Wheelbase 340mm
■Tread F/R 224mm
■Tires(F & R) φ110 x 47mm
■Gear Ratio 10.41:1
■Weight 3,410g (approx.)
■Motor TORX10L Brushless Motor kv2850
●Factory assembled chassis complete with control linkages
●Pre-cut and painted body complete with decals applied
●2.4GHz Syncro KT-231P+ transmitter
●1.5mm/2.0mm/2.5mm L shaped hex wrench
●Cross wrench
●4/5/5.5/7/10mm Integrated spanner
Key Info:
- Brand: Kyosho
- Part No: K.34703T1B
- Barcode: 4548565457359
- Scale: 1:10
- Build Level: Assembled (RTR)
- Power Source: Electric - Brushless
- Surface Type: Off Road
- Vehicle Type: Short Course Truck
