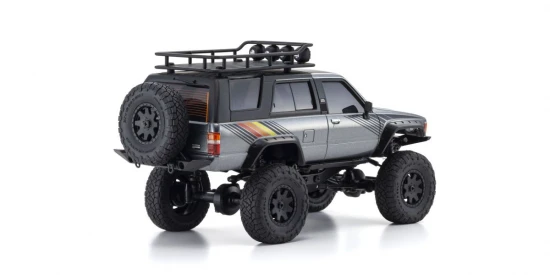

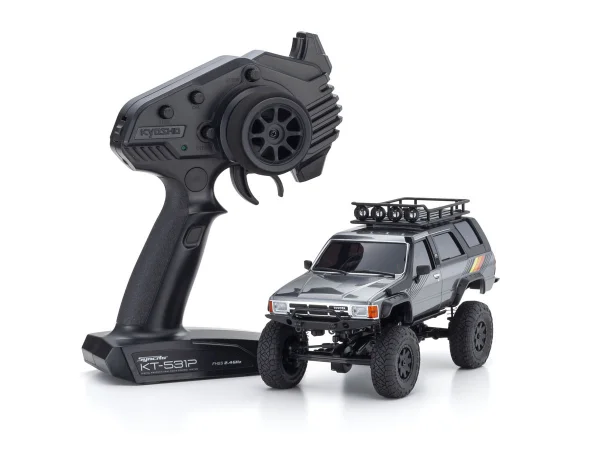

Kyosho Mini-Z 4X4 MX-01 Toyota 4-Runner Dark Grey Metallic (KT531P)
Brand: Kyosho
Part No: K.32540GM
Shadow Stock: Usually ships within 4-5 days
The Kyosho Mini-Z 4X4 MX-01 Toyota 4-Runner in Dark Grey Metallic pairs authentic scale detail with serious crawling capability in a compact footprint. With its thick, high-quality injection-moulded body and classic 4Runner lines, this model delivers standout realism and durability alongside confident off-road performance.
Underneath the detailed shell lies a true ladder-frame chassis with steel side plates and a 3-link rigid axle suspension that mirrors full-size 4WD design. A specially tuned high-torque 130-size motor, metal gearing where loads are highest, and a factory-installed set of 18 ball bearings provide smooth, efficient drive and dependable strength for technical terrain. Control comes via the FHSS 2.4GHz KT-531P transmitter, offering refined, responsive handling.
Engineered for crawling, the Mini-Z 4X4 features optimised steering geometry with the tightest turning radius in Mini-Z history, a high-torque crawler servo, and a main gear unit with slipper clutch to protect the drivetrain under heavy load. Model-specific wheels and off-road tyres further enhance grip and realism. Supplied ready-to-run, it only requires 8 x AAA alkaline batteries (sold separately) to hit the trails.
Key Features
- Scale Toyota 4-Runner body in Dark Grey Metallic with thicker moulding for added durability
- Ladder-frame chassis with steel vertical plates for a balanced blend of rigidity and flex
- 3-link rigid axle suspension (single upper A-arm) for maximum articulation
- High-torque, crawler-tuned 130-size motor optimised for low to medium speeds
- High-torque steering servo and optimised link geometry for exceptional steering angle
- Metal gears used in high-load areas for durability; slipper clutch protects the drivetrain
- Full ball bearing specification (18 bearings) for smooth, efficient running
- Model-specific wheels and off-road tyres for enhanced traction and scale detail
- KT-531P FHSS 2.4GHz transmitter with enhanced wheel feel
Optional Accessories
- Optional light set (MZW429R) fits the top of the board; throttle-responsive lighting with adjustable headlight modes
- Supports an optional gyro unit with manual adjustment
Required To Complete
- 8 x AAA alkaline batteries (sold separately)
Secured by Stripe
In 2019 the world's most popular mini RC series, known as the Kyosho MINI-Z, celebrated more than 20 years of unmatched performance and scale realism in the hobby-grade RC category. The continuous pursuit of performance and evolution has led to the creation of a completely-new 'MINI-Z 4x4' design that delivers an all-new driving experience for RC fans of all stripes, with superior overall design, driving performance and high-quality injection-molded scale body construction. A significant feature of the MINI-Z 4x4 series is the greater emphasis of body detail and quality of finish that even surpasses existing benchmarks set by the MINI-Z. The body is also molded with thicker material to better resist crash damage from operation in rough terrain. Incorporating the same ladder- style frame of real 4WD vehicles, the MINI-Z 4x4 boasts a 3-link rigid axle suspension combining what would normally be two upper links into a single upper A-arm to deliver maximum suspension movement. A specially designed high-torque steering servo enables this machine to throw its elbows around in the hard terrain for excellent performance in the toughest rock-crawler conditions. The high-torque 130-size motor brings out the beast in the MINI-Z 4x4, specially geared to run well in the low to medium speed ranges common in crawling. Designed to balance exquisite style, scale detail and superior driving performance, all the MINI-Z 4x4 needs is 8 x AAA alkaline batteries (sold separately). Enjoy driving under any conditions, from normal driving to rock crawling while appreciating the stunning visual appearance. The Kyosho Mini-Z 4x4 is the only mini crawler that delivers a full range of crawling performance in a smaller package.
● Adopts full-fledged solid axle links similar to the 1/10 scale models, ensuring the driving performance and wheel travel required for crawler models.
● Equipped with a specially tuned high-torque 130 motor. Additionally, the main gear unit features a slipper clutch that protects the drive system by releasing torque when under heavy load.
● Features a high-torque servo specifically designed for crawler models, capable of supporting authentic crawling performance. The steering link optimization achieves the largest steering angle in Mini-Z history.
● Full bearing specification with a total of 18 ball bearings. Metal gears, known for their durability, are used in parts that bear heavy loads.
● The "KT-531P" transmitter uses the FHSS 2.4GHz system and features a sponge on the steering wheel to enhance operability.
● Comes as a fully assembled, ready-to-run model, requiring only the insertion of batteries to begin operation.
● An optional light set (MZW429R) can be installed on the top of the circuit board. The lights respond to throttle operation, and the headlight's lighting interval can be adjusted freely-from steady lighting to blinking-via the transmitter's trim.
● Supports the separately sold gyro unit, and like the RWD/AWD series, manual adjustments can be made via the volume control.
● Equipped with popular BS Goodrich tires.
The 4WD Toyota 4Runner SUV debuted in 1983 and was first released in the U.S., where demand was higher than in Japan. This model featured an FRP canopy on the bed of a compact pickup, increasing its seating capacity. With a powerful engine and rugged suspension, it handled rough terrain with ease.
The same ladder frame and multi-link rigid-axle suspension commonly used in popular 1:10-scale off-road models, is condensed into Mini-Z size for the most articulation and performance available in any mini RC truck.
The Mini-Z 4x4 incorporates a ladder frame design with steel vertical plates, in combination with various molded parts, to deliver the ultimate balance of of rigidity and flex for superior performance and durability.
Solid front and rear axles feature links with steel rods and captured rod ends. Ring and pinion gears, in addition to other gears and components, feature metal construction to withstand the heavy loads under the toughest driving conditions.
The front axle features ideal Ackermann geometry. Combined with the advanced design of the axle housing and the other steering components, This model features the tightest turning radius in Mini-Z history. It means the Mini-Z 4x4 has exceptional handling capability for anything ranging from casual driving to hard-core crawling.
Tires and wheels that are specific to each model are a major focus of the Mini-Z 4x4.
Metal gears are used in areas subject to high loads to ensure durability.
The Mini-Z 4x4 features a specially-designed high-torque motor that is unique in the Mini-Z World. It's optimized for maximum torque, and it develops more power at lower speeds.
The best drive efficiency is accomplished with the included set of 18 ball bearings, factory installed to ensure the smoothest most efficient operation possible, right out of the box.
Key Info:
- Brand: Kyosho
- Part No: K.32540GM
- Barcode: 4548565491384
- Scale: 1:28
- Build Level: Assembled (RTR)
- Power Source: Electric - Brushed
- Vehicle Type: Monster Truck
- Surface Type: On Road
