Description

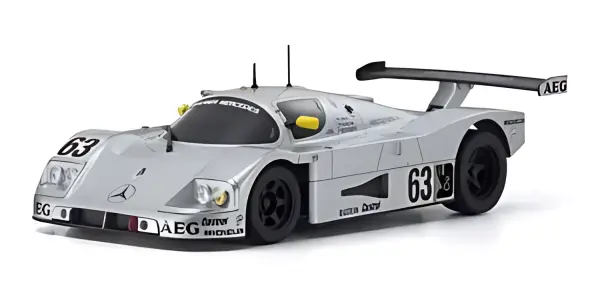

Experience the latest Kyosho Mini-Z performance in a convenient Readyset. The Kyosho Mini-Z MR-04 RWD Sauber Mercedes C9 No.63 LM 1989 (K.32362S) pairs the fourth‑generation MR‑04 chassis with a display‑finish body and the KT‑531P pistol radio, delivering sharp control, smooth drive, and easy indoor fun once you insert AAA batteries.
Key Features
- Readyset package with fully assembled MR‑04 RWD chassis and finished body
- Multi‑function Syncro KT‑531P transmitter with trims, dual rate and training mode (default)
- High‑quality painted body with decals applied
- Geared differential for smooth cornering
- Full ball bearing specification
- New MR‑04 chassis design evolved from MR‑03 for lower centre of gravity and improved handling
- Suggested compatibility with optional gyro unit (MZW711); chassis includes on‑board gyro sensitivity adjustment
- Suggested compatibility with a wide range of MINI‑Z Racer optional parts for tuning and performance
Performance And Chassis Updates
- New front knuckles with integrated kingpins reduce scrub by 1.5 mm per side versus MR‑03 for more linear steering
- 3 mm inner‑diameter front bearings reduce rotational resistance
- Front suspension dynamically adjusts camber via upper arm movement; revised caster for improved response
- Lower battery position reduces overall centre of gravity for greater stability and straight‑line tracking
- Rear coil‑spring damper cushions surface shocks; suggested compatibility with an optional oil‑filled damper
- T‑bar rear suspension with suggested compatibility for FRP and carbon options
- Low‑resistance ball bearings on all axles; same bearing size front and rear for spare parts efficiency
- Parts set included to adjust front tread when changing from the standard body; rear tread adjustable via wheel offset
Specifications
- Length: 181.0 mm
- Width: 78.0 mm
- Height: 40.0 mm
- Chassis: MR‑04W‑LM
- Wheelbase: 102.0 mm (LL)
- Tread: Front 68.5 mm / Rear 66.0 mm
- Front Wheel Offset: Narrow +2.7 mm
- Rear Wheel Offset: Wide +0.8 mm
- Weight: 130 g
- R/C System: Syncro KT‑531P
What's In The Box
- Factory assembled chassis
- Pre‑painted body, complete with markings
- 2.4GHz Perfex KT‑531P 2.4GHz transmitter
- Front tread adjustment parts set
- Pinion gears: 6T, 7T, 8T, 9T
- Spare nuts
- Wheel wrench
- Pinion gear tool
- Tires, wheels
Required To Complete
- AAA‑size alkaline batteries x 4 for chassis
- AAA‑size alkaline x 4 or Ni‑MH batteries x 4 for transmitter
Secured by Stripe
Kyosho Mini-Z MR04 RWD Sauber Mercedes C9 No.63 LM 1989 (W-LM/KT531P) Manuals & Guides
Interactive Views
Tap any part on the diagram to see it and buy it.
Manuals & Guides
- K.32355YBK Kyosho Mini-Z RWD Mercedes AMG GT3 24h Nurburgring No4 2018 (W-MM/KT531P) Manual
- K.32379RA Kyosho Mini-Z MR04 RWD Porsche 962 C Coupe KH No.1 (W-LM/KT531P) Manual
- K.32379RA Kyosho Mini-Z MR04 RWD Porsche 962 C Coupe KH No.1 (W-LM/KT531P) Exploded View
- Kyosho Mini-Z RWD Honda NSX White (N-RM/KT531P) Spare
- Kyosho Mini-Z MR04 RWD Skyline 2000GT-R KPGC10 Silver (N-MM2/KT531P) Spare
- K.32358S Kyosho Mini-Z MR04 RWD Porsche 911 GT3 RS Silver (N-RM/KT531P) Manual
Specifications
- Authentic EP (electric) small scale R/C car that can be driven indoors.
- Readyset package includes fully assembled chassis, body and transmitter.
- Includes ultra reliable multi-function Syncro KT-531P transmitter.
- Features the MR-04 chassis, a major evolution from the previous MR-03 model.
- Includes high-quality painted body with decals applied, finished to display model standard.
- Geared differential (gear diff) delivers smooth cornering.
- Full ball bearing specifications
- Can be fitted with an optional gyro unit (MZW711) for even easier control. Gyro sensitivity can be adjusted using the volume on the chassis.
- Compatible with wide range of MINI-Z Racer optional parts so you can enjoy tuning and enhancing your model.
Specifications:
- Length 181.0mm
- Width 78.0mm
- Height 40.0mm
- Chassis MR-04W-LM
- Wheelbase 102.0mm (LL)
- Tread F:68.5mm R:66.0mm
- Front Wheel Offset Narrow +2.7mm
- Rear Wheel Offset Wide +0.8mm
- Weight 130g
- R/C System Syncro KT-531P
- Factory assembled chassis
- Pre-painted body, complete with markings
- 2.4GHz Perfex KT-531P 2.4GHz transmitter
- Front tread adjustment parts set
- Pinion gears 6T, 7T, 8T, 9T
- Spare nuts
- Wheel wrench
- Pinion gear tool
- Tires, wheels
- AAA-size alkaline batteries x 4 for chassis.
- AAA-size alkaline batteries x 4 or Ni-MH batteries x 4 for transmitter
Key Info:
- Brand: Kyosho
- Part No: K.32362S
- Barcode: 5060350155176
- Scale: 1:28
- Build Level: Assembled (RTR)
- Power Source: Electric - Brushed
- Surface Type: On Road
- Vehicle Type: Touring / Rally Car
