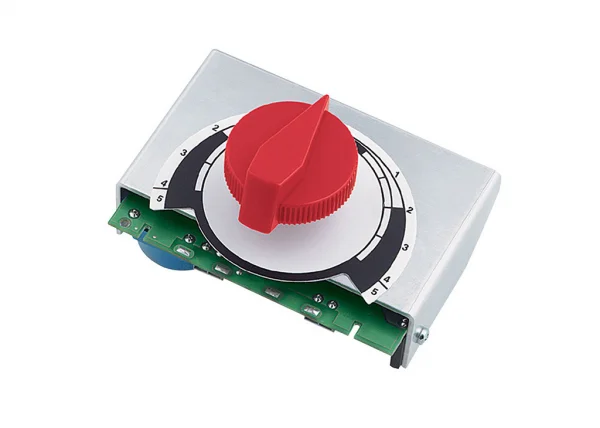

LGB Analog Throttle 5 AMP Panel Mount
Brand: LGB
Part No: HC-L52121
£150.96
RRP £160.60
Shadow Stock: Usually ships next day
The LGB Analog Throttle 5 Amp Panel Mount (HC-L52121) is designed for special applications, such as installation in track diagram control boards. It offers increased track current while generating less heat than its predecessor, making it well suited to both indoor and outdoor layouts.
SIC (Special Integrated Circuit) technology provides a fine, precise control feel with a smoothed direct-voltage waveform. A built-in rectifier means it is designed for use with any LGB power supply, whether AC or DC.
Key Features
- Maximum 5 amps locomotive power
- Built-in rectifier; designed for use with any LGB power supply (AC or DC)
- SIC technology for fine control and a smoothed direct voltage waveform
- Indoor and outdoor use
- Connections for wires up to 1.5 square millimetres (approximately 15 gauge)
- Minimal heat generation
- Short circuit protection
Output and Dimensions
- Output: 0–24 volts DC
- Track current power: 5 amps maximum
- Dimensions: 100 x 80 x 90 mm
Secure Payments
Secured by Stripe
This controller is designed for special uses, such as installation in track diagram control boards. It has increased track current power while generating less heat than its predecessor. Features include: Maximum 5 amps locomotive power / Built-in rectifier, designed for use with any LGB power supply (AC or DC) / SIC (Special Integrated Circuit) technology offers a fine touch for control and a smoothed direct voltage waveform / Indoor and outdoor use / Connections for wires up to 1.5 square millimeters / approximately 15 gauge / Minimal heat generation / Short circuit protection / Output: 0-24 volts DC / Track current power: 5 amps maximum /
100 x 80 x 90 mm / 3-15/16€œ x 3-1/8€œ x 7/8€œ.
Key Info:
100 x 80 x 90 mm / 3-15/16€œ x 3-1/8€œ x 7/8€œ.
Key Info:
- Brand: LGB
- Part No: HC-L52121
- Barcode: 4011525521211
