LGB Electronic Loco Controller 5 Amp
Brand: LGB
Part No: HC-L51079
Shadow Stock: Usually ships next day
Finance options available at checkout.
Description

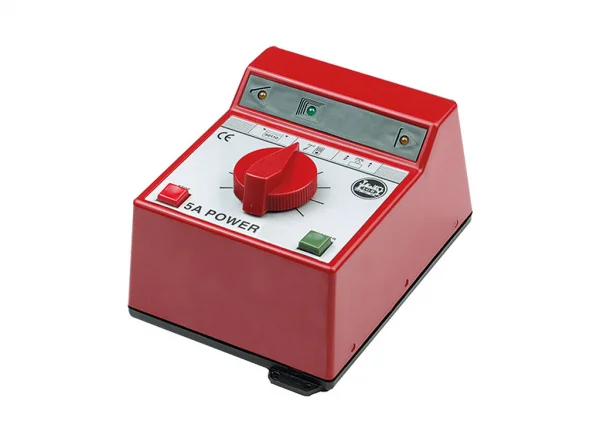

The LGB Electronic Loco Controller 5 Amp (HC-L51079) brings modern control and high current capability to analogue-operated LGB layouts. Delivering smoothed DC and very fine throttle response, it features a centre-off control range of +/- 135°, a dedicated Stop/Halt button, and a booster button with programmable acceleration for smooth, repeatable starts. It replaces the previous LGB item 51070.
Key Features
- Maximum 5 A operating current for robust analogue operation
- Smoothed DC output for precise, low-speed control
- Adjustable control range: +/- 135° with zero in the centre
- Booster button with programmable acceleration
- Stop/Halt button for rapid intervention
- LED indicators for Stop, overload, ready for operation, and direction of travel
- Short-circuit protection
Technical Specifications
- Output voltage: 0–24 V DC
- Operating current: up to 5 A
- Wiring connections: up to 1.5 mm² (approx. 15/16 gauge)
- Dimensions: 160 × 120 × 95 mm (6-5/16 × 4-3/4 × 3-3/4)
Suggested Compatibility
- LGB 51095 100-watt switched mode power pack
Secured by Stripe
LGB Electronic Loco Controller 5 AMP Manuals & Guides
Manuals & Guides
Specifications
This electronic locomotive controller for analog operation offers the latest technology with high operating current and modern features for your analog operated LGB layout: maximum of 5 amps operating current, for use with the 51095 100-watt switched mode power pack. Very fine control and smoothed DC voltage. Adjustable control range: +/- 135° with a zero position in the center / booster button with programmable acceleration, Stop/Halt button. LED indicators for Stop, overload, ready for operation, and direction of travel. Connections for wire up to 1.5 square millimeters in cross section / approximately 15/16 gauge, protected against short circuits. Output: 0-24 volts DC. Operating current: maximum 5 amps. Dimensions 160 x 120 x 95 mm / 6-5/16 x 4-3/4 x 3-3/4.This item replaces item number 51070.<br><br>For use with 51095.
Key Info:
- Brand: LGB
- Part No: HC-L51079
- Barcode: 4011525510796
Delivery & Returns
Free Shipping
This item is over £100, so qualifies for free standard UK shipping!
Express Shipping
Upgrade to next day from £3
Worldwide Shipping
Available at checkout
Customer Reviews
No specific product reviews yet, why not write one?Questions & Answers
This is an analogue controller - if a customer has a digital loco, (depending on the decoder fitted in the loco) it will only work on analogue and therefore have limited functionality.
If the customer wants to upgrade to a controller that will operate analogue trains (DC) and digital (DCC or MFX) he will need the Marklin Central station
For more in depth queries, please contact us.
