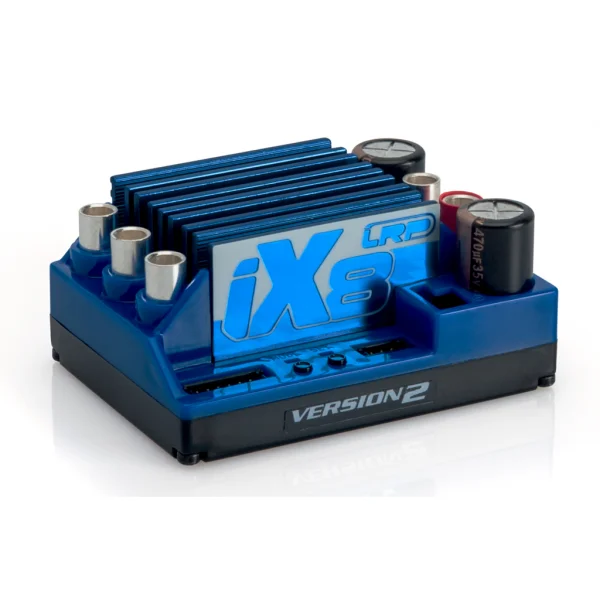

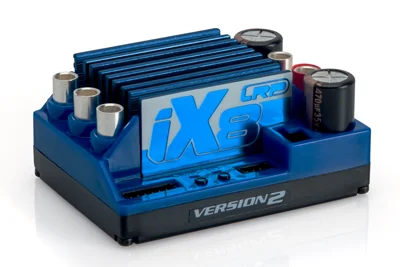

LRP iX8 V2 Brushless Speed Control

The LRP iX8 V2 Brushless Speed Control brings a new hardware platform and the latest v2.6 team firmware to a proven competition ESC. Designed for consistent, high-level performance, it runs noticeably cooler and delivers precise throttle and braking feel. Aggressive Initial Drive settings and a newly developed 1/8 BR2 brake provide sharp response and consistent stopping power, while the Intelligent Brake/Reverse v1.0 algorithm makes reversing intuitive away from the track.

With wide 2S–6S LiPo operation and a powerful 6V/6A switching BEC, the iX8 V2 suits demanding setups, and its optimised sensored design enhances smooth control. USB software updateability lets you benefit from ongoing improvements. A compact, robust case with integrated heatsink and fan, plus pluggable connections, rounds out a dependable package. Part number SCH-LRP80881.

Features

• New hardware for cooler running and consistent racing performance
• Latest v2.6 team firmware with new modes and optimised values
• 2S–6S LiPo operation (7.2–22.2V) with powerful 6A switching BEC
• Intelligent Brake/Reverse v1.0 for intuitive switch between brake and reverse
• USB software updateability
• Optimised sensored design
• Initial drive mode
• New brake developed especially for 1/8 use
• Internal-Temp-Check System 3
• Accessories included
• Pluggable connections
• Compact and robust design

Technical Data

• Integrated heatsink + fan: Yes
• Adjustable modes: 4
• BEC: 6V/6A
• Power wires: 3.3mm²
• Weight (without wires): 62g
• Dimensions: 55 x 40 x 24mm
• Forward/Brake/Reverse: Yes
• Forward/Brake: Yes
• Rated current: 600A/phase
• Voltage input: 7.2–22.2V
• Sensored brushless system: Yes
• Motor limit: none
• Multi Protection System 3: Yes
