Maverick Msc-30Bl-Wp Brushless Speed Controller (T-Plug)
Brand: Maverick
Part No: MV30003
£81.12
RRP £85.39
Shadow Stock: Usually ships within 4-5 days

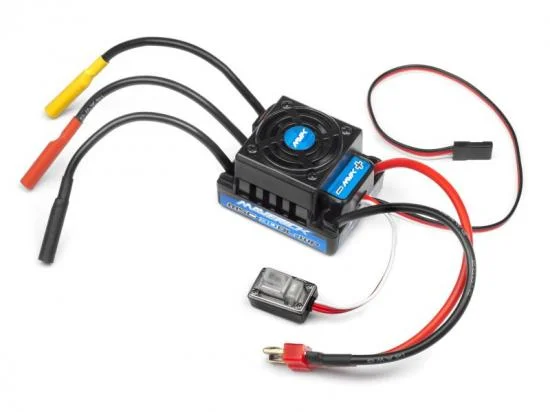

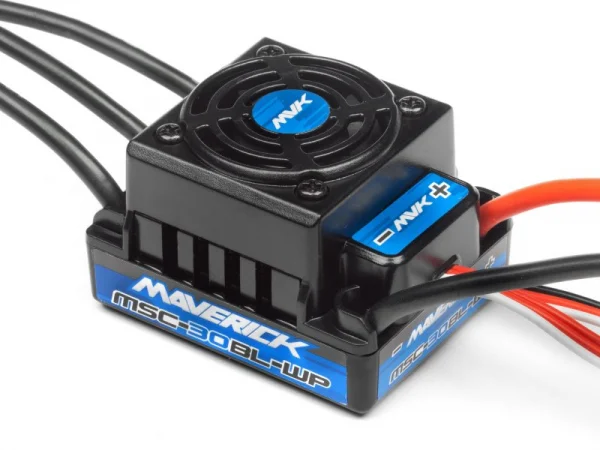

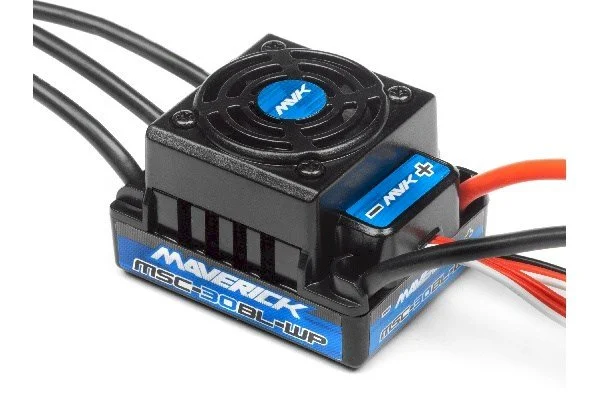

The Maverick MSC-30BL-WP Brushless Speed Controller (MV30003) is a water-resistant and dust-proof 45A ESC designed for 1/10 scale on-road and off-road RC cars. Supplied with a T‑Plug connector, it supports 2–3S LiPo or 4–9 cell NiMH setups and pairs with sensorless brushless motors. Easy one-button programming and comprehensive protection functions make it a solid choice for performance and reliability.
Key Features
- Water-resistant* and dust-proof construction
- 2–3S capable (for 3S, change the standard 5V cooling fan to 12V or power the 5V fan from the receiver at 5–6V)
- Works with sensorless brushless motors
- Two running modes: Forward with brake; Forward/Backward with brake
- Proportional ABS brake with 4 steps of max brake force; 8 steps of drag-brake adjustment
- Four punch modes from Soft to Very Aggressive
- Multiple protections: Low-voltage cut-off (LiPo/NiMH), over-heat, throttle signal loss, motor blocked
- Simple setup using the SET button
Specifications
- Continuous Current: 45A
- Burst Current: 220A
- Resistance: 0.0012 ohm
- Application: 1/10 scale on-road and off-road
- Motor Limits:
- 2S LiPo or 6-cell NiMH: On-road ≥9T; Off-road ≥12T (3650 size)
- 3S LiPo or 9-cell NiMH: On-road ≥12T; Off-road ≥18T (3650 size)
- Battery: 4–9 cells NiMH or 2–3S LiPo
- Built-in BEC: 6V/2A
- Program Port: Multiplexed with cooling fan port
- Motor Type: Sensorless brushless
- Dimensions: 48.5 x 38 x 32 mm
- Weight (with wires): 90 g
- Connector: T‑Plug
Important Notes
- Remove the cooling fan when running in very wet conditions.
- After use in wet conditions, clean and dry the unit to help prevent oxidation of copper connectors.
- For 4–6 cells NiMH or 2S LiPo: the 5V cooling fan does not need to be changed.
- For 7–9 cells NiMH or 3S LiPo: change the 5V fan to a 12V fan, or power the 5V fan from the receiver (5–6V).
Suggested Compatibility
- Maverick Strada Red series (replacement ESC)
- Standard Maverick Strada models when upgrading with brushless motor #MV22602 (MM-22BL 3215KV)
Secure Payments
Secured by Stripe
#MV30003 - MSC-30BL-WP BRUSHLESS SPEED CONTROLLER (T-PLUG)
Key Info:
Replacement Brushless ESC for the Strada Red series of cars Can also be used to upgrade the standard Strada when used in conjunction with a Brushless Motor: #MV22602 - MM - 22BL 3215KV Brushless Motor MSC-30BL-WP BRUSHLESS SPEED CONTROLLER Features
- Water-resistant* and dust-proof. The ESC has been designed to work in wet conditions.
- 2-3S Capable (for 3S you must change the standard 5V cooling fan to a 12V cooling fan, or supply the 5V cooling fan from the receiver 5-6V);
- Compatible with sensorless brushless motor.
- 2 running modes (“Forward with brake” mode, “Forward/Backward with brake” mode).
- Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment.
- 4 Punch modes from “Soft” to “Very aggressive” to be suitable for different chassis, tires and tracks.
- Multiple protection features: Low voltage cut-off protection for Lipo or NiMH battery / Over-heat protection /Throttle signal loss protection / Motor blocked protection.
- Easily programmed with the “SET” button
- Continuous Current: 45A
- Burst Current: 220A
- Resistance: 0.0012 ohm
- Application: 1/10 scale on-road and off-road
- Motor Limit:
- 2S LiPo or 6 cells NiMH - On-road: ≥9T, Off-road: ≥12T, 3650 size motor
- 3S LiPo or 9 cells NiMH - On-road: ≥12T, Off-road: ≥18T, 3650 size motor
- Battery: 4-9 Cells NiMH or 2-3S Lipo**
- Built-in BEC: 6V/2A
- Program Port: Multiplexed with cooling fan port
- Motor Type: Sensorless Brushless
- Dimension: 48.5 x 38 x 32mm
- Weight (with wires): 90g
Key Info:
- Brand: Maverick
- Part No: MV30003
- Barcode: 5050864021760
