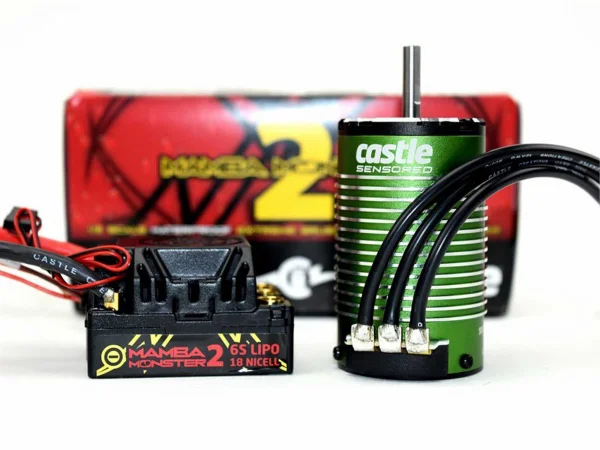

Castle Creations Monster 2 1:8 25V ESC Waterproof W/ 2650Kv V2 Motor Sensor

The Castle Creations Mamba Monster 2 waterproof ESC paired with the 2650Kv V2 sensored motor delivers the brute power and stamina demanded by serious 1:8 buggies, truggies and on-road cars, as well as heavyweight 1:10 monster trucks. Supplied as part number P-CC010-0108-06, this combo brings proven Monster performance with smooth, sensored control and robust durability.

The Mamba Monster 2 ESC is capable of running 2S up to 6S LiPo and features a waterproof design so you can keep driving through wet grass, damp tracks and winter conditions. LED status patterns help diagnose common conditions such as over-temperature or loss of receiver signal. Cooling is handled by a factory-fitted, removable 30 mm fan.

Programming and Tuning

Enjoy the full Castle programmable feature set via Castle Link on Windows (coupon for a free Castle Link USB adapter is included), or use the Castle Link iOS App with the B-LINK Bluetooth Adapter. A subset of settings can also be adjusted using transmitter-stick programming.

Features

• Adjustable internal BEC: 5.5V, 6.0V, 7.5V or 8.0V (8A peak), default 5.5V
• Factory-equipped, fully removable 30 mm cooling fan
• Waterproof design for nearly any environment
• LED error codes for common fault conditions
• Convenient transmitter programming for nine common adjustable settings
• Fully compatible with the Castle Link Programming Suite for settings and firmware updates
• Designed, assembled and supported in Olathe, KS, USA
• Input voltage range: 2S–4S LiPo
• Redesigned rotor and stator assemblies
• Reduced magnetic cogging for less residual drag brake
• Increased efficiency for lower temperatures and longer run times
• Smoother start-up to reduce cogging or stutter from a stop
• Rebuildable design: replace front end bell/bearing or rotor/shaft assemblies
• High-strength Kevlar wrap and 180C-grade neodymium sintered magnets
• Oversized NMB bearings and high-temperature, high-purity copper windings
• Castle 10 AWG high-strand-count silicone wire with 6.5 mm bullet connectors
• High-performance 0.2 mm steel lamination stacked stator
• Oversized, low-resistance, gold-plated solder tabs
• Sensor board with temperature-stabilised, high-quality sensors
• T6 aluminium CNC-machined front/rear end bell

In The Box

• Mamba Monster 2 Waterproof Electronic Speed Control
• 2650Kv V2 Sensored Motor

Suggested Compatibility

• 1:8 scale off-road and on-road vehicles
• 1:10 scale 4WD short course trucks up to 9 lb
