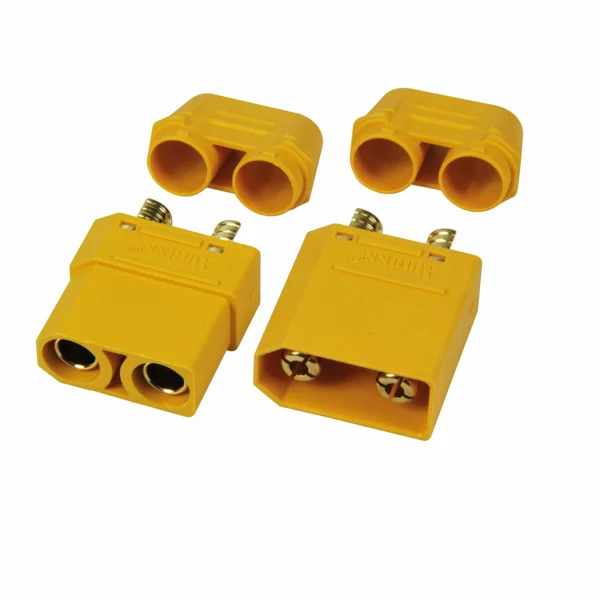

Multiplex MPX-XT90 3 pairs

Multiplex MPX-XT90 3 pairs

Brand: Multiplex

Part No: MPX1-02297

£14.31 RRP £14.60
Pre-Order
Request Price Match Ask a Question Write a Review

The Multiplex MPX-XT90 3 pairs set (part number MPX1-02297) provides three matched XT90 plug and socket sets for reliable, high-current power connections. The asymmetrical XT90 design helps prevent reverse polarity, while a temperature-resistant polyamide housing rated to UL94 V0 offers robust performance. High-quality, gold-coated brass contacts ensure low resistance and dependable conductivity. Solder connections are designed for cables up to approx. 5mm (AWG 10). Suitable for medium to large drives.

Key Features

  • 2 pin
  • Contact diameter: 4.5mm
  • Dimension: Jack 29.7mm x 20.8mm x 9.9mm / Plug 30.7mm x 20.8mm x 9.9mm
  • Weight: Female 8 grams / Male 7.5 grams
  • Maximum voltage: 500V DC
  • Current carrying capacity: 45A, short-term 90A

Tech Specs

  • Age Recommendation: 14+
  • Colour: Yellow
  • Material: Plastic
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

#1-02297 MPX connector XT90 The MPX XT-90 plugs are designed asymmetrically, which guarantees a high level of reverse polarity protection. They are suitable for medium to large drives. The housing made of temperature-resistant polyamide is classified according to fire class UL94 V0. High-quality, gold-coated brass contacts transmit high currents with low resistance and reliable contact. The soldering connections of the XT90 contacts are designed for cables with a cross-section of up to approx. 5mm (AWG 10).

Multiplex MPX-XT90 3 pairs Key Features:

  • 2 pin
  • Contact diameter: 4.5mm
  • Dimension: Jack 29.7mm x 20.8mm x 9.9mm / Plug 30.7mm x 20.8mm x 9.9mm
  • Weight: Female 8 grams / Male 7.5 grams
  • Maximum voltage: 500V DC
  • Current carrying capacity: 45A short-term 90A

Multiplex MPX-XT90 3 pairs Tech Specs:

    • Age Recommendation: 14+
    • Colour: Yellow
    • Material: Plastic


      Key Info:
      • Brand: Multiplex
      • Part No: MPX1-02297
      • Barcode: 4059818022977
