Multiplex ROXXY BL Outrunner C28-14-1250kV
Brand: Multiplex
Part No: MPX1-01673
Out Of Stock

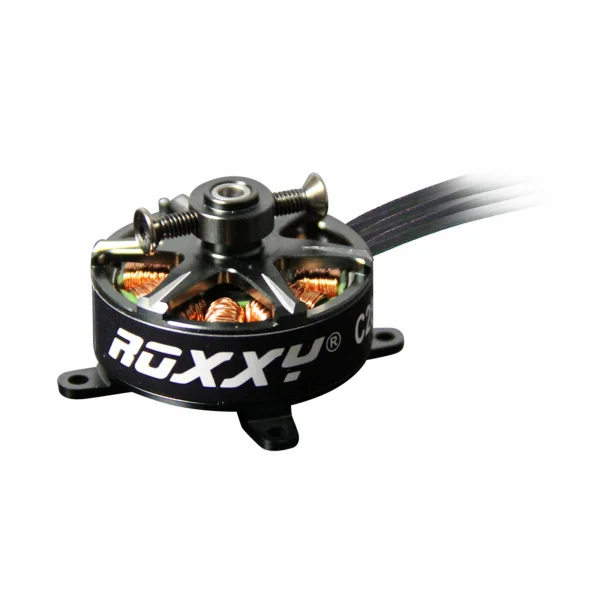

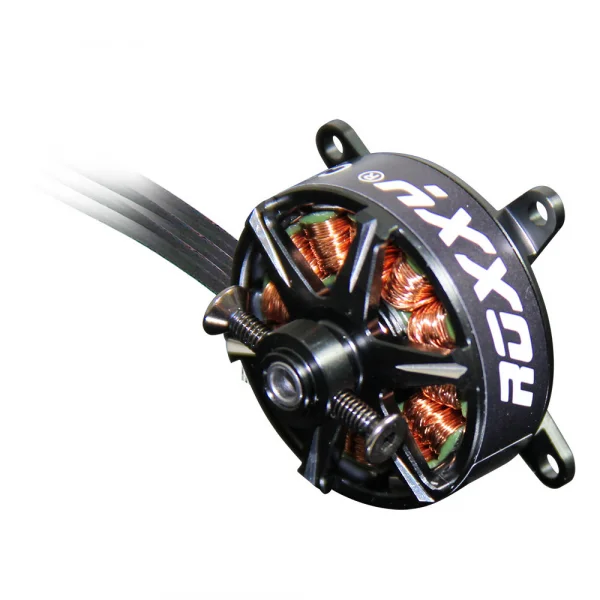

Request Stock NotificationThe Multiplex ROXXY BL Outrunner C28-14-1250kV (MPX1-01673) is a 14‑pole brushless outrunner engineered for efficient, high‑torque direct drive. Neodymium magnets and a high copper fill deliver excellent power density in a compact 28 mm form factor, ideal for driving larger propellers without a reduction gearbox.
Large precision ball bearings ensure smooth running, while the flexible design allows mounting at either end to suit different airframe layouts.
Key Features
- 14‑pole brushless outrunner with neodymium magnets
- High efficiency from maximum copper fill
- Large precision ball bearings for smooth running
- Can be mounted at either end
- 1250kV
- 150W
- 28mm motor diameter
- 4mm shaft diameter
- Voltage range: 7–12V
Technical Specs
- Weight: 40g
- Connector: Bullet
- Colour: Silver
- Material: Steel
- Shipping weight: 0.04kg
Suggested Compatibility
- E‑sailplanes up to 500g
- Scale and sport models up to 400g
- Aerobatics and 3D models up to 250g
Secured by Stripe
14-pole brushless outrunner motors
Brushless motors with neodymium magnets represent the very latest form of electric power plant. Outrunners in particular require no reduction gearbox, and constitute efficient, high-torque motors covering a broad range of power levels.
The special construction of outrunner motors often enables them to drive large propellers without the need for a gearbox, so they are ideal for direct-drive applications.
- Maximum copper fill ratio and superior neodymium magnets for high efficiency
- Large, precision ballraces ensure smooth running
- Can be mounted at either end
Suitable For
E-sailplanes up to 500g
Scale and sport up to 400g
Aerobatics and 3D up to 250g
Multiplex ROXXY BL Outrunner C28-14-1250kV Key Features:
- High efficiency due to maximum copper filling and use of high-quality neodymium magnets.
- Smooth running thanks to large precision ball bearings
- 1250kV
- 150W
- 28mm motor diameter.
- 4mm shaft diameter.
- Voltage range: 7 - 12V
Multiplex ROXXY BL Outrunner C28-14-1250kV Tech Specs:
- Weight: 40g / 1.41oz
- Shipping Weight: 0.04kg / 0.09lbs
- Product Diameter: 28mm / 1.10in
- Connector: Bullet
- Age Recommendation: 14+
- Colour: Silver
- Material: Steel
Key Info:
- Brand: Multiplex
- Part No: MPX1-01673
- Barcode: 4059818016730
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
Questions & Answers
You will need a 30a esc something like this OL-2724 and will run 2s or 3s lipo.
