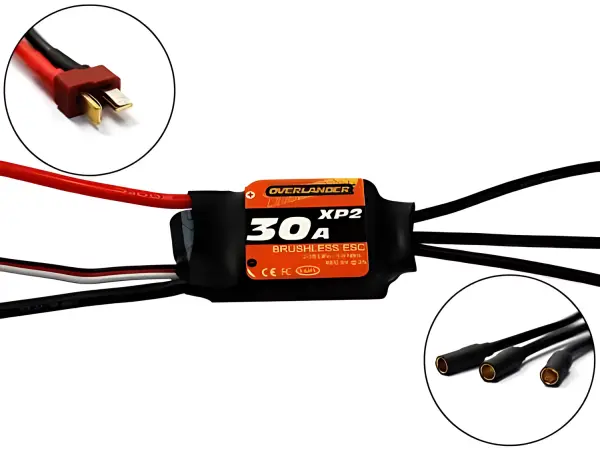

Overlander XP2 30A Brushless ESC - RTF Speed Controller

The Overlander XP2 30A Brushless ESC (OL-2724) is a compact, ready-to-fly speed controller fitted with a Deans battery connector and 3.2 mm gold motor bullets. It delivers smooth, linear throttle control with quick response, plus a comprehensive protection suite to help safeguard your model. Setup is straightforward and can be configured via an optional program card.

Key Features

• Full protection: low voltage, over-heat, throttle signal loss, startup protection and self-check.
• Suggested compatibility: most sensorless brushless motors.
• Excellent start-up performance, linear throttle and fast response.
• Supports motor speeds up to 210,000 RPM (2-pole), 70,000 RPM (6-pole) and 35,000 RPM (12-pole).
• Programmable via program card with automatic throttle neutral detection.
• Three timing modes and three start-force settings.
• Governor mode for heli applications.
• Reversible motor direction.
• Fitted with Deans battery plug and 3.2 mm gold motor connectors.

Specifications

• Continuous Current: 30 A (Burst 40 A for 10 s)
• Input Voltage: 2–3S Li-Po or 5–9 cell NiMH
• BEC Output: 2 A / 5 V
• Dimensions: 42 x 25 x 8 mm
• Weight: 23 g
• Low-resistance PCB
• Wiring: Blue motor wire 14 AWG; red/black battery wires 12 AWG

Suggested Compatibility

• Most sensorless brushless motors
• 2–3S Li-Po or 5–9 cell NiMH power systems

Usage Notes

• As a guide, limit servo count to roughly 1 servo per 1 A of BEC output.
• Consider a separate RX pack or an uprated UBEC when using four servos or more.
