Narrow Stamped Steel Wheel Pin Mount 6-Lug RC4WD

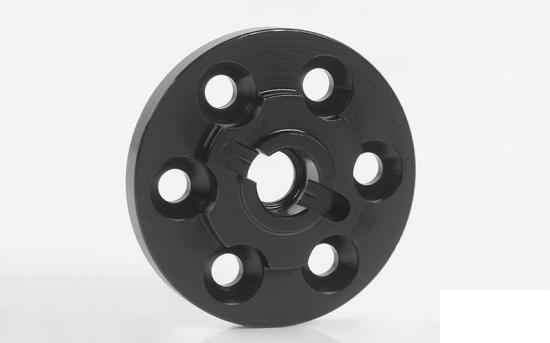

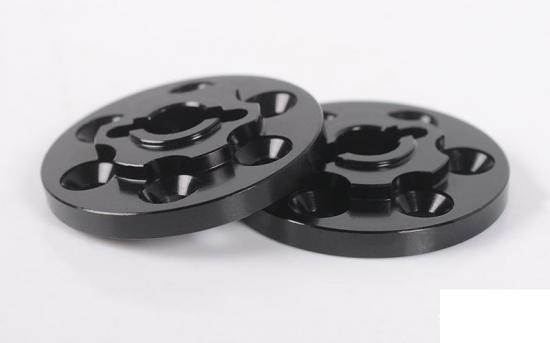

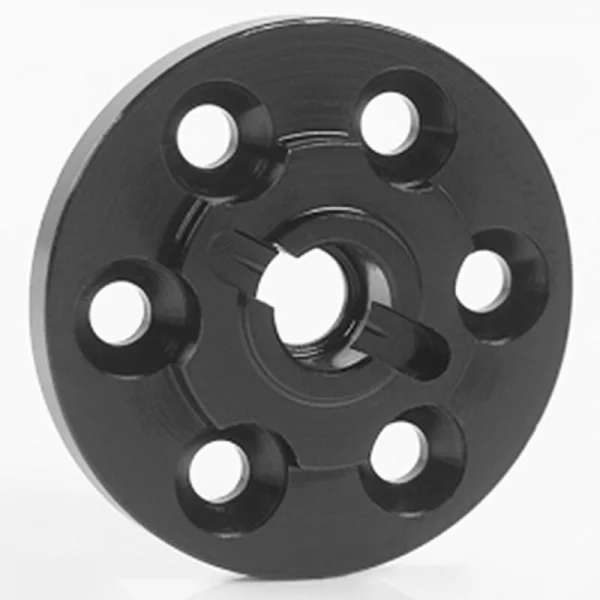

The RC4WD Z-S1913 Narrow Stamped Steel Wheel Pin Mount (6‑lug) is a compact hub set designed to tighten track width on RC4WD steel wheels. Precision CNC machined from billet aluminium with a durable black anodised finish, each hub delivers a clean scale look with dependable fit and finish.

Key Specifications

• CNC machined
• Billet aluminium
• Black anodised finish
• OD: 0.91in / 23.0mm
• Center hole OD: 0.16in / 4.2mm
• Width: 0.18in / 4.5mm
• Each weight: 0.10oz / 2.9g

What’s Included

• 4x Wheel Hex Hub Brake Discs
• 24x M2.5 x 10mm Steel Flat Head Socket Cap Screws
• 24x Regular M2.5 Black Nuts

Replacement Hardware

• M2.5 x 10mm Steel Flat Head Socket Cap Screws
• Regular M2.5 Black Nuts (Z-S0303)

Optional Parts

• Yota II Ultimate Scale Cast Axle (Center Rear) (Z-A0010)
• Yota 1.9 Straight Axle (Bruiseruptor Edition) (Z-A0036)
• Yota Ultimate Scale Cast Axle (Front) (Z-A0058)
• Yota Ultimate Scale Cast Straight Axle (Rear) (Z-A0061)
• Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
• Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
• Yota II Ultimate Scale Cast Axle (Center Front) (Z-A0086)

Notes & Suggested Compatibility

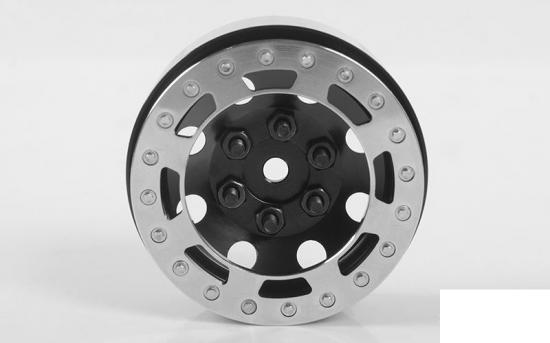

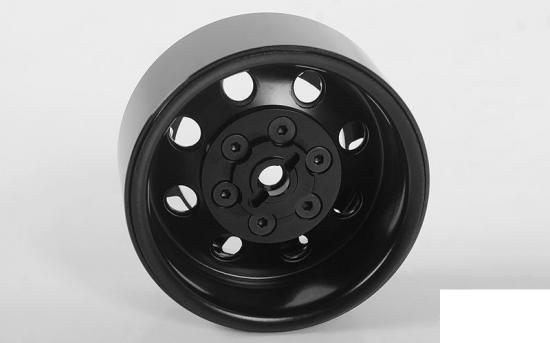

• Shown installed with TRO 1.7" Stamped Steel Beadlock Wheels (Black/Chrome) (Z-W0227) for example (not included).
• Suggested compatibility includes the following 1.7" wheels: Z-W0124, Z-W0227, Z-W0225.
• Suggested compatibility includes the following 1.9" wheels: Z-W0001, Z-W0002, Z-W0073, Z-W0074, Z-W0128, Z-W0130.
• Suggested compatibility includes the following 2.2" wheels: Z-W0141, Z-W0146, Z-W0190.
• Designed to narrow the offset of RC4WD steel wheels.
• RC4WD notes these hubs are not suggested for Axial SCX10 and SCX10 II axles due to thread fitment.
• May require a washer or spacer when mounting on other Axial axles due to thread depth.
