RC4WD Gelande II Truck Kit With Cruiser Body Set 2025

RC4WD GELANDE II TRUCK KIT WITH CRUISER BODY SET 2025

Kick off your adventure with the Gelande II Scale Builders Kit!

Built for off-road performance, the Gelande II features an aluminium ladder frame chassis, updated R3 Single-Speed Transmission, and Yota II V2 axles with our new XVD technology!

The front axle now comes with improved screw engagement that maximizes steering precision and improves sturdiness. 4-link rear and 3-link pan-hard bar suspensions provide smooth handling and D-80 shocks with our new X-Ring tech and Titanium Nitride Coated Shafts provide a new level of durable impact control.

Customise it to suit your style, whether as a rock crawler or expedition vehicle, without compromising performance. With cast metal axles, stamped steel beadlocks, Scrambler tyres, and a chassis-mounted steering servo,sheet. Build your ultimate off-road rig today!

Drivetrain

The R3 Single Speed Transmission comes with a tough cast metal case and wider gears for durability and a Delrin Spur with Slipper Clutch for performance. It also features a sturdy billet aluminium motor mount for added toughness.

The Gelande II includes the new Hammer Transfer Case. Packed with scale detail, the Hammer features a cast metal exterior and heavy-duty .8 Mod widened gears for durability.

Drawing on the success of the RC4WD MOA Gear Sets, the Gelande II drivetrain has the most durable gears RC4WD has to offer, capable of staying on the trail day after day.

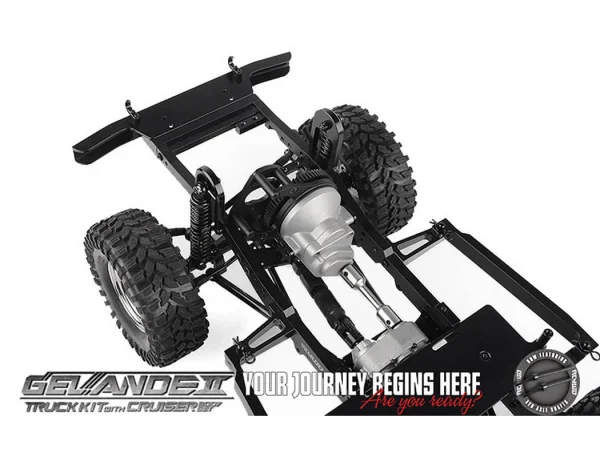

The most scale-accurate axles on the market, the RC4WD Yota II Ultimate Scale Cast Axles (XVD) feature innovative 8-degree round knuckles, unique removable diff covers, lower mounting points, and a compact offset pumpkin in the front.

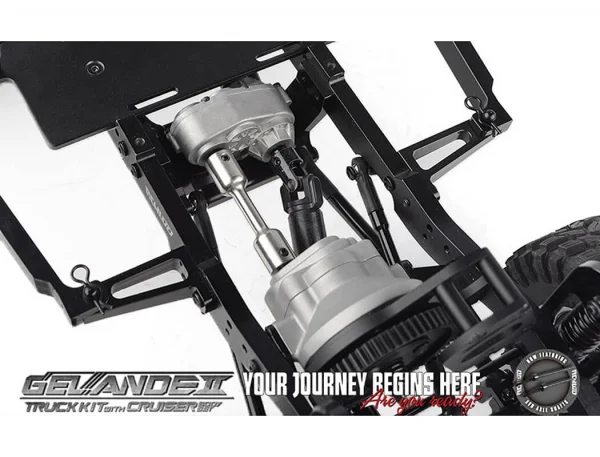

The driveshafts on the Gelande II Chassis feature heavy-duty uni-joint metal shafts for great driveline angles and durability on the trail.

Suspension

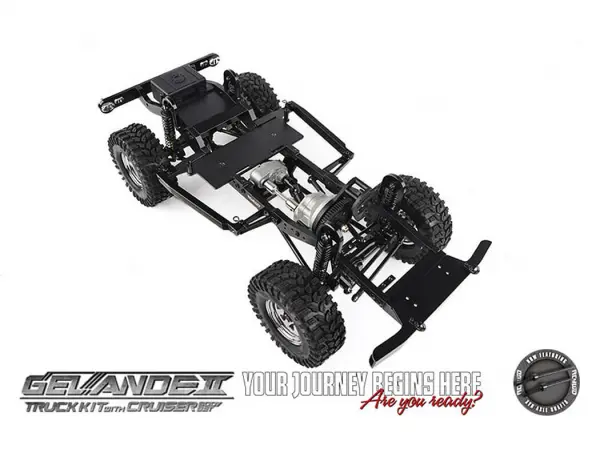

The Gelande II Chassis features a molded fuel cell that doubles as an electronics storage box plus an aluminium, frame-mounted under-cab electronics tray for multiple electronics mounting options. Also includes a sturdy battery tray with strap mounts.

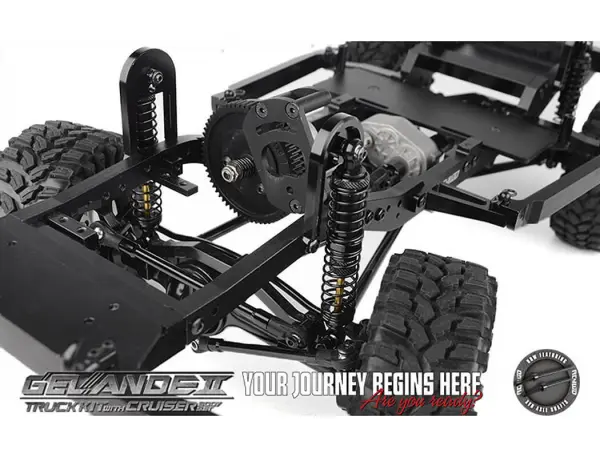

The Gelande II comes with a new set of RC4WD Dual Spring Shocks. This fresh design offers a shock that looks true to life and performs at the highest level. These shocks are made from solid aluminium, feature dual springs, and can be taken apart and put back together. They include our latest X-Ring technology and shafts coated with Titanium Nitride, delivering long-lasting impact control that's a step above the rest.

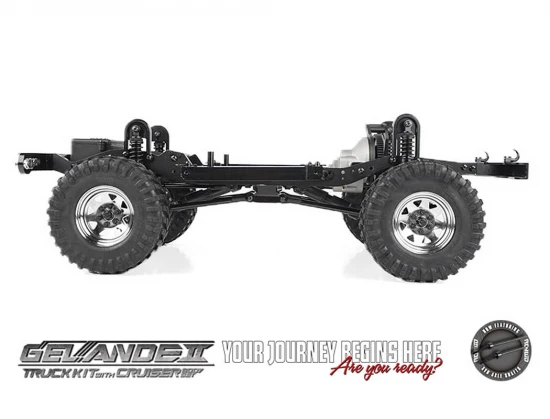

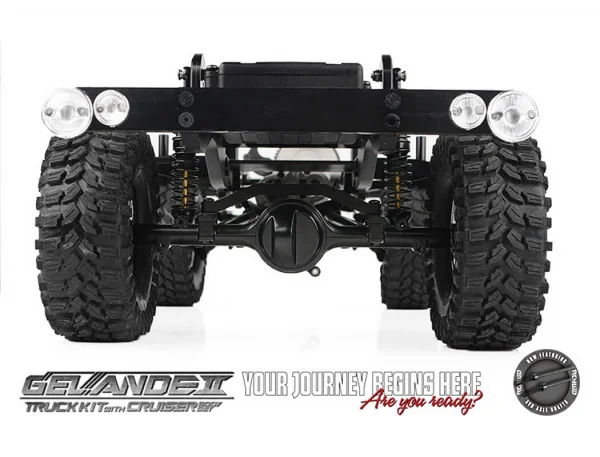

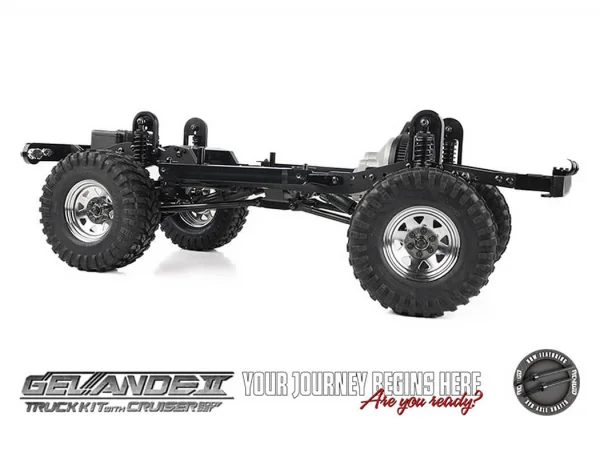

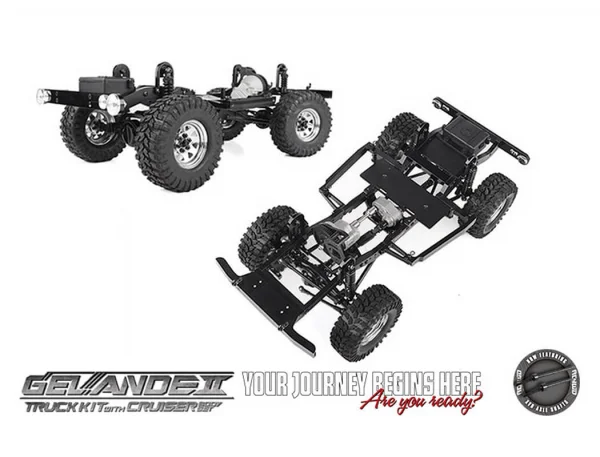

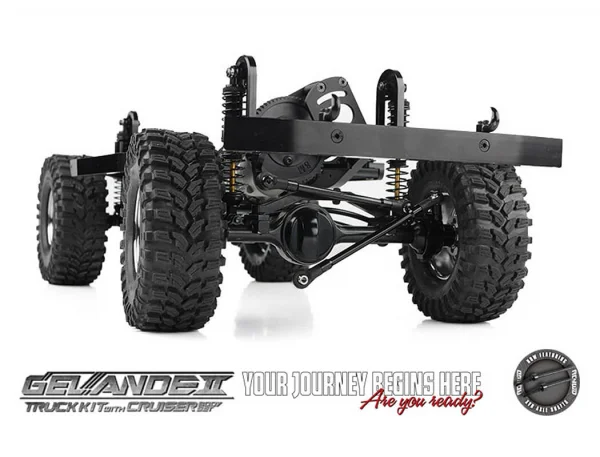

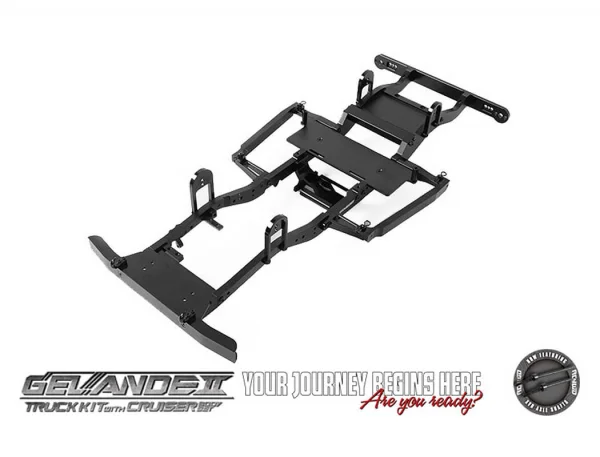

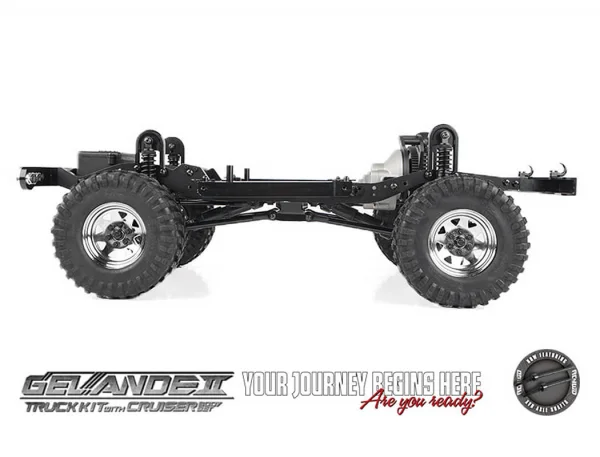

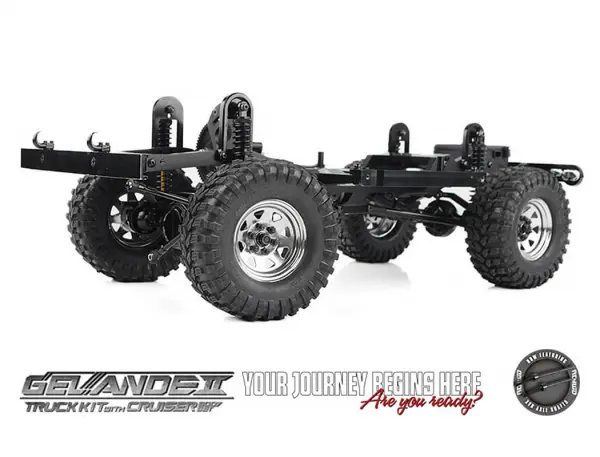

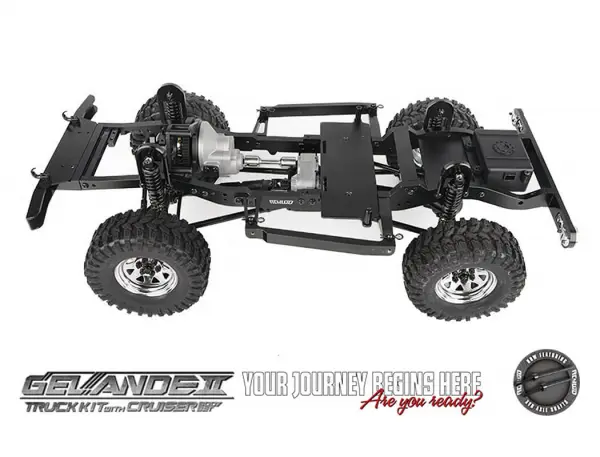

The all-new Gelande II Chassis is a machined billet aluminium ladder frame with an all-link suspension design, scale shock hoops, chassis servo mounts, and hard body mounting points for the ultimate in strength.

Included are a set of 6 Lug Wagon 1.9" Steel Stamped Beadlock Wheels (Chrome) with scale wheel hubs! The wheels are made from stamped steel and have a smooth silver finish for added detail.

This Gelande II kit comes with a set of Scrambler Offroad 1.9" Scale Tyres that deliver the perfect amount of traction with its advanced X2SS soft and sticky compound. The scale details complete the look in just the right size.

Details

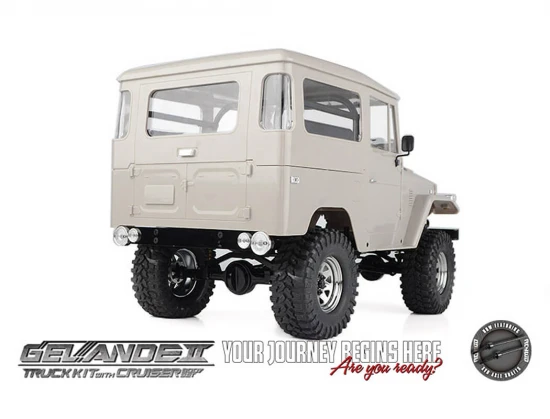

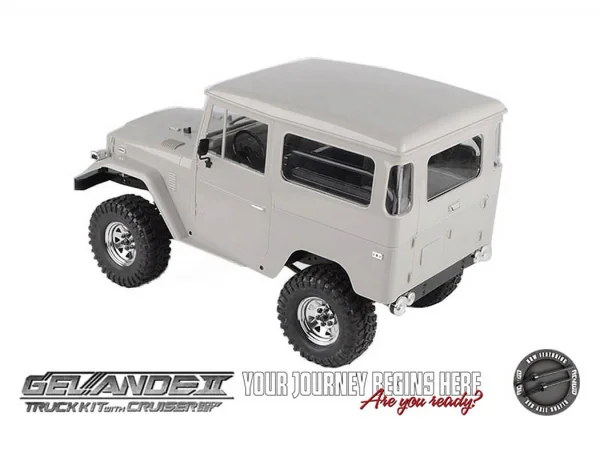

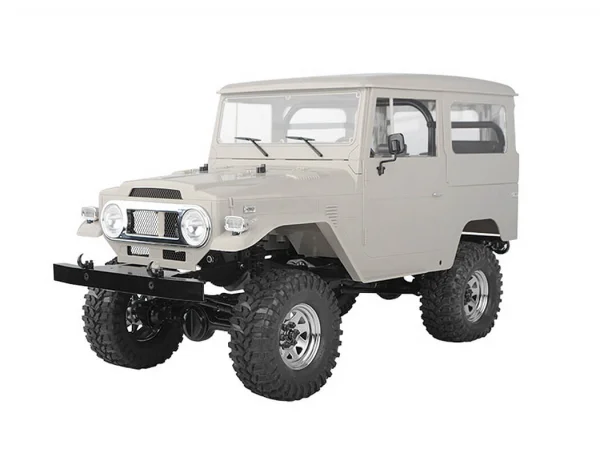

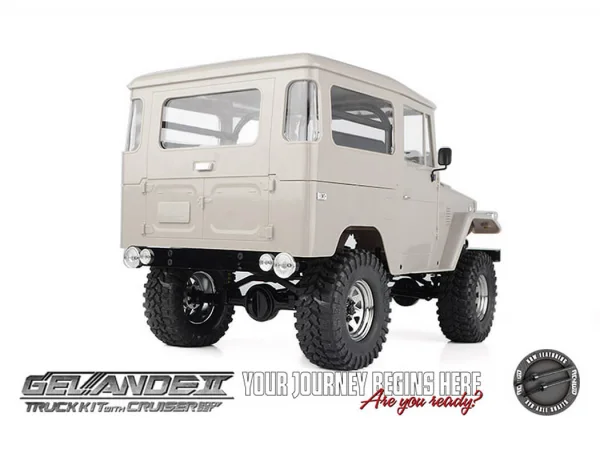

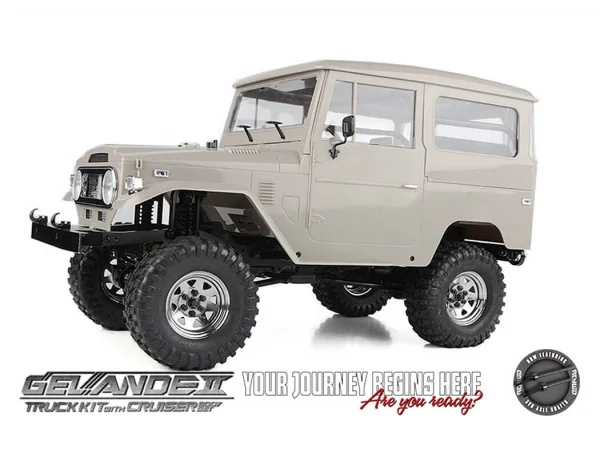

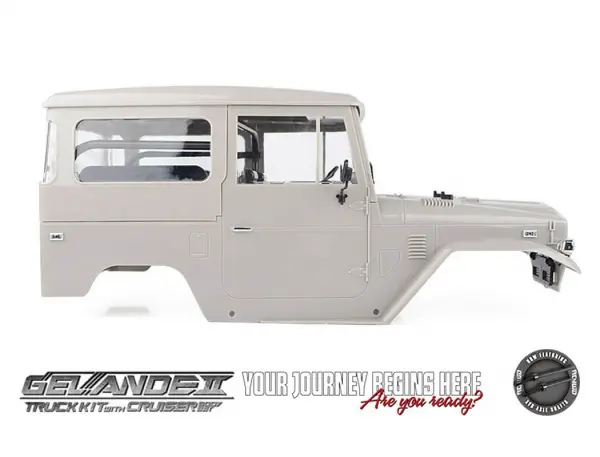

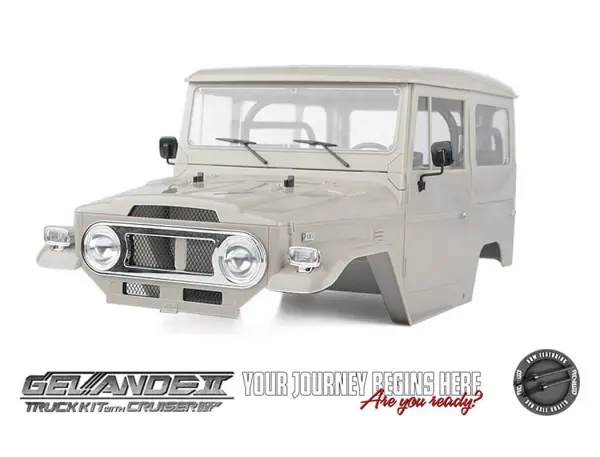

The Gelande II features the Cruiser Scale Body Set. The Cruiser body has an awesome appointment of scale details, including mirrors, door handles, vents, and a grill to match the 1:1 vehicle.

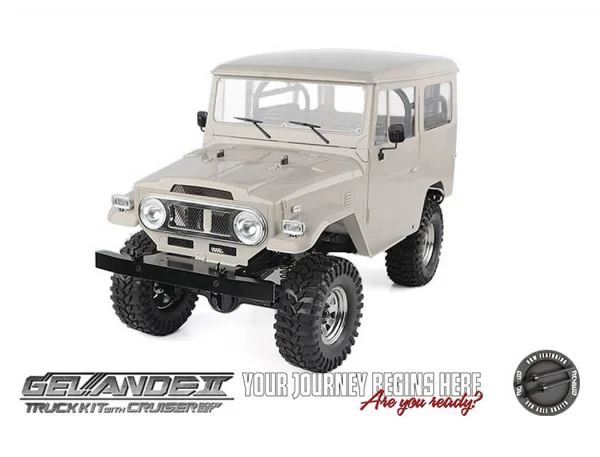

The unmistakable lines of a classic. The Cruiser Body Set is a replica of the full-scale vehicle, right down to the removable top! No other scale body comes this close to realism.

The Cruiser Body Set comes in durable hard plastic molded in a paintable gray finish, perfect for custom paint. All the trim parts are separate pieces to get a great look with minimal fuss.

Comprised of over 70 parts, the Cruiser Body Set features a fully detailed interior, seats, gear shifter, handbrake, and detailed dashboard. It's all here to bring your build to the next level.

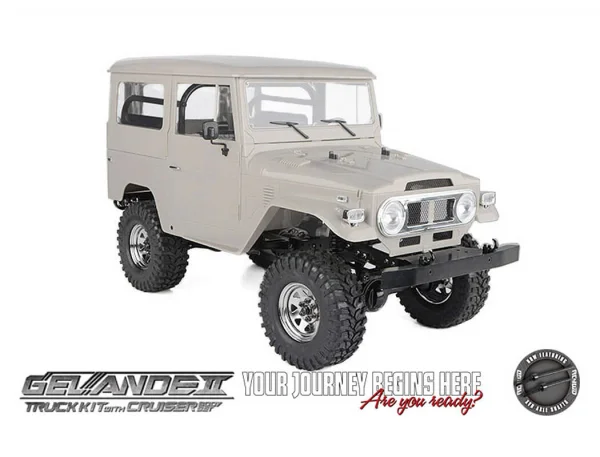

The crisp lines and subtle details are captured. A metal grill insert is included, as well as detail lenses for all signal lights. All lamps can be illuminated with modification.

Features

• Realistic Billet Aluminium Ladder Frame Chassis.
• Plastic Punisher Shaft V2.
• R3 Scale Single Speed Transmission.
• Center Mounted Realistic 4x4 Transfer Case.
• Yota II Ultimate Scale Cast Axle V2 (XVD).
• 6 Lug Wagon 1.9" Steel Stamped Beadlock Wheels.
• Scrambler Offroad 1.9" Scale Tyres.
• Dual Spring 80mm Scale Black Shocks (VER 3).
• Cruiser Body Conversion Kit For G2 Builder Kit.
• Chassis Mounted Steering Servo.
• Plastic Fuel Cell Receiver Box.

Specifications

Hammer Transfer Case

Ratio: 1.47:1
Gears: Wide .8 Mod Hardened Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Scale Single Speed Transmission

Ratios: Pinion/Spur 14/64 = 1:4.57
Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

Yota II Ultimate Scale Cast Axles

Ratio: 15/40 = 2.67:1
Width at Hex: 178.2mm

Gelande II Suspension

Double Triangulated 4 Link Rear Suspension. 3 Link Front Suspension with Panhard Bar

Shock Absorbers

Dual Spring 80mm Shocks - Can be oil filled

Wheels

Type: 6 Lug Wagon 1.9" Steel Stamped Beadlock Wheels (Chrome)
Hub: Pin Type Width: 25mm (0.98")
Outer Diameter: 48.26mm (2.09")

Tyres

Type: Scrambler Offroad 1.9" Scale Tyres
Outer Diameter: 104mm (4.09")
Width: 43mm (1.69")
Inner Diameter: 46mm (1.81")

Gelande II Truck Dimensions

Length: 18.31in / 465mm
Width: 8.66in / 220mm
Height: 10.24in / 260mm
Ground Clearance: 1.97in / 50mm
Final Drive Ratio: 31.9:1

What's Included

• 1 x RC4WD Gelande II Truck Kit w/Cruiser Body Set

Please Note: This is a kit that requires building time (appro. 2-3 hours) and electronics.

Required To Complete

Truck Kit

• Hex Drivers (1.5mm, 2mm, 2.5mm)
• Long Nose Pliers
• Associated Thread Locking Adhesive
• Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)

Body Kit

• Modeling / Craft Knife
• Long Nose Pliers
• Side Cutters
• Instant Glue / Plastic Solvent / ShoeGoo / E6000 / 2-part Epoxy
• Hex Drivers (1.5mm, 2mm)
• Cross Phillips Screwdriver (Small)

Electronics

• Motor (35t, 45t, or 55t)
• Radio and Receiver (2 Channels or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
• 1 x Twister High Torque Metal Gear Digital Servo (Z-E0035)
• Battery (Consult your "ESC" manual) Z-E0090 or 2 cell Lipo battery
• Charger (Consult your battery guide) Chargers

Notes

• While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Steps marked with an asterisk (*) require thread lock.
• Use thread lock sparingly.
• Do not over tighten screws otherwise you may strip the thread.

• Brand: RC4WD
• Part No: Z-K0072
• Barcode: 639302617526
• Scale: 1:10
• Power Source: Electric - No Motor
• Surface Type: Off Road
• Vehicle Type: Rock Crawler
• Build Level: Unassembled (Kit)
