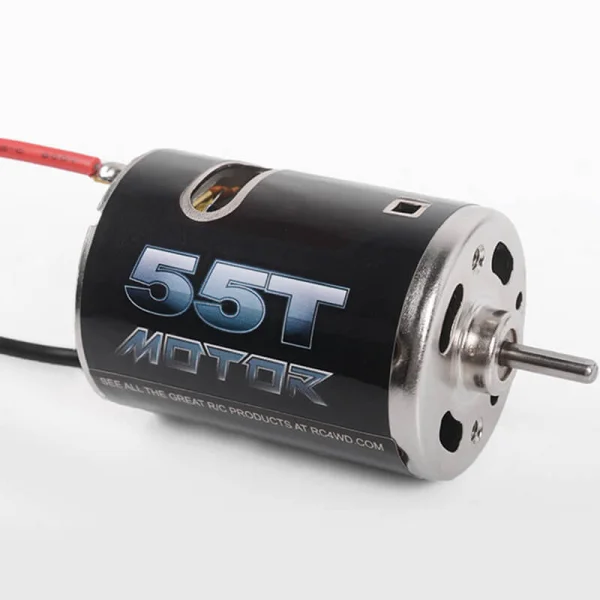

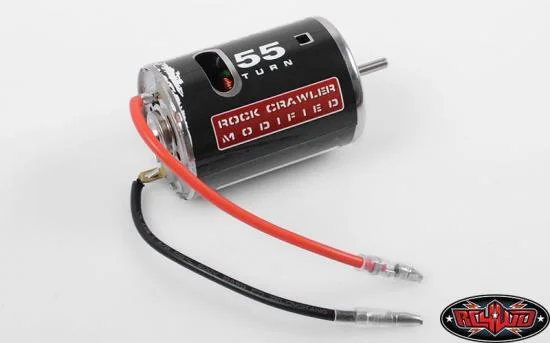

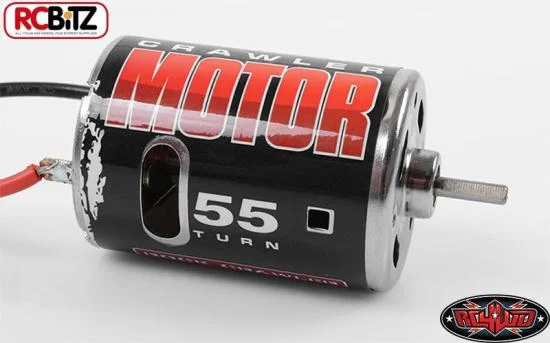

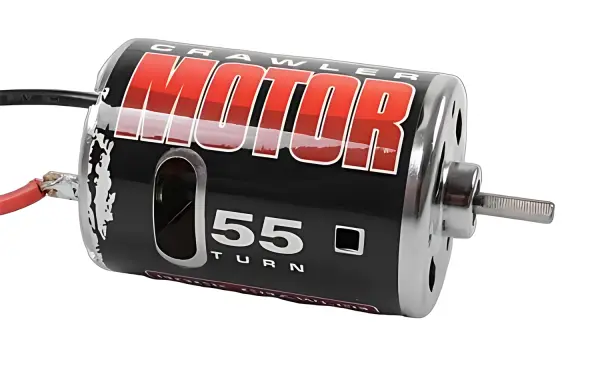

RC4WD 540 Crawler Brushed Motor 55T

Custom made to fit all popular truck such as Bully, AX10, Trail Finder, SCX10 Honcho and Dingo and Wraith and Ridgecrest. You can choose one of 5 different numbers of turns from 35t - 80t. The higher the turn cound the slower the motor but the higher the torque.

• Custom made 540 steel case
• Chrome plated case
• Build in capacitor for minimizing glith
• High torque magnet and rotor
• Pre wired with 3mm bullet connectors for easy installation, (Axial ESC are 4mm but can be crimped up.)
• Will fit all 3mm pinions, See HERE
• Small footprint (50mm long)
• Tuned for rock climbing and scale driving
• Polished Bushings (non replaceable)

Performance Specs for all sizes:

• Designed oprating temperature range: -30°C to +80°C
• Motor end play : .50mm max
• Noise level: < 60db

Performance Specs 35t:

• (At no load) RPM @ 7.2V : 12500 (±10%25), 1.25Amp Current
• (Max Efficiency) RPM @ 7.2V : 10400 (±10%25), 4.62Amp Current

Performance Specs 45t:

• (At no load) RPM @ 7.2V : 9500 (10%25), .95Amp Current
• (Max Efficiency) RPM @ 7.2V : 8100 (10%25), 4.29Amp Current

Performance Specs 55t:

• (At no load) RPM @ 7.2V : 8000 (±10%25), .75Amp Current
• (Max Efficiency) RPM @ 7.2V : 6800 (±10%25), 3.35Amp Current

Performance Specs 65t:

• (At no load) RPM @ 7.2V : 7000 (±10%25), .65Amp Current
• (Max Efficiency) RPM @ 7.2V : 5900 (±10%25), 2.79Amp Current

Performance Specs 80t:

• (At no load) RPM @ 7.2V : 5500 (±10%25), .45Amp Current
• (Max Efficiency) RPM @ 7.2V : 4450 (±10%25), 1.38Amp Current

Size comparison:

What's included:

• 1x RC4WD 540 Crawler Brushed Motor (size and turn depends on your selection above)

You may want to consider some Motor Spray to help keep your motor in good condition when you return from the trails and rocks.

• Brand: RC4WD
• Part No: Z-E0003
• Barcode: 639302605332
