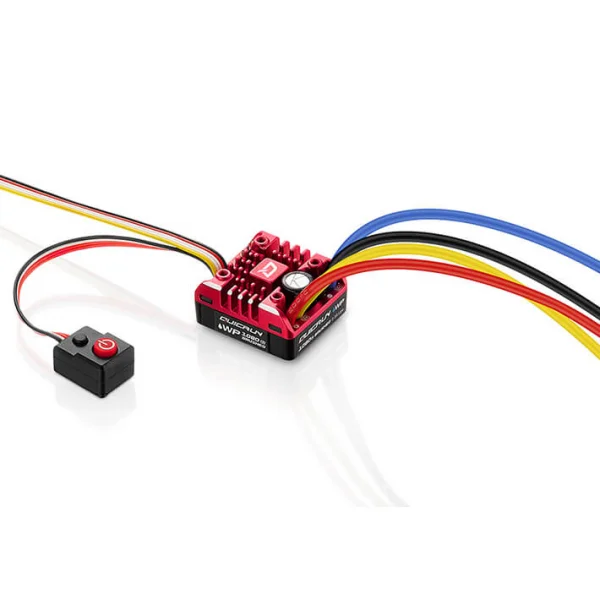

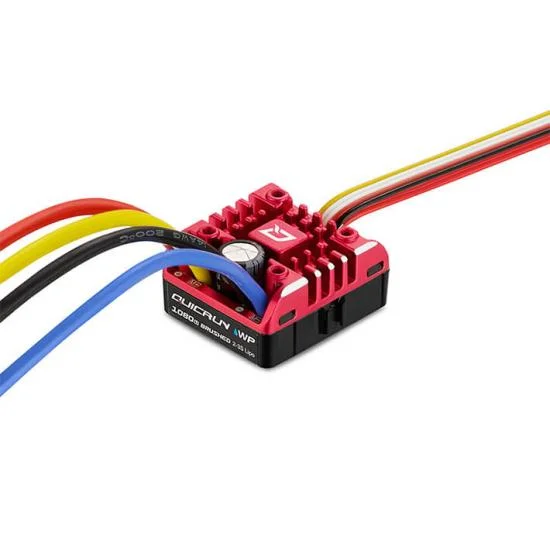

Hobbywing Quicrun WP 1080 G2 80 AMP Brushed Crawler ESC
Brand: Hobbywing
Part No: HW30120202
In Stock: Usually ships same day
The Hobbywing Quicrun WP 1080 G2 is an IP67-rated, 80A brushed crawler ESC engineered for smooth low-speed control and a realistic driving feel. Real Car mode enables switchable motor direction via a spare transmitter channel, while an AUX-adjustable drag brake lets you fine-tune holding power on the trail. A robust 4A switch-mode BEC with selectable 6V/7.4V/8.4V outputs supports high-torque servos, and multiple protections safeguard your system. Hobbywing part number HW30120202.
Key Features
- Four Real Car running modes with switchable motor direction via a spare channel.
- IP67 waterproof construction; clean and dry after use to prevent corrosion.
- Durable electronic on/off switch resists dirt, water and dust.
- Tunable drag brake strength and rate; AUX channel allows real-time drag brake adjustment.
- Adjustable PWM frequency and freewheeling (DEO) for smooth, linear throttle response.
- Safety protections: low-voltage cutoff, thermal protection and throttle signal loss protection.
- Separate programming port, single-button setup and factory reset.
- Programmable with the Hobbywing LED program card.
Specifications
- Application: 1/10th rock crawler
- Motor type: Brushed (540 / 555 size)
- Continuous/peak current: 80A / 400A
- Input voltage: 2–3S LiPo or 5–9S NiMH
- BEC output: 6V / 7.4V / 8.4V @ 4A (switch-mode)
- Wires: 14AWG 200mm (red/black)
- Programming device: Hobbywing LED program card
- Size: 37.2 x 31.9 x 18.4 mm
- Weight (with wires): 70.2 g
Suggested Compatibility
Suggested compatibility includes:
- 1/10 scale rock crawler models
- Brushed 540 and 555 size motors
- 2–3S LiPo or 5–9S NiMH power systems
Secured by Stripe
HOBBYWING QUICRUN WP 1080 G2 BRUSHED SPEED CONTROL
The first "Real Car Mode" ESC from Hobbywing is an exciting release and features four running modes and a real time drag break adjustment.
In the Real Car mode the direction of the motor is switchable in real time by using a spare channel on the transmitter, you get the normal operation of pulling the trigger for "forward" and pushing the trigger for "brake" and then with the reverse enabled pulling the trigger will give you "reverse".
This new feature will give you a unique RC experience unlike any other! (Requires a spare channel on the receiver).
In addition to the switchable Real Car mode the drag brake force is also adjustable in real time using an AUX channel on the handset.

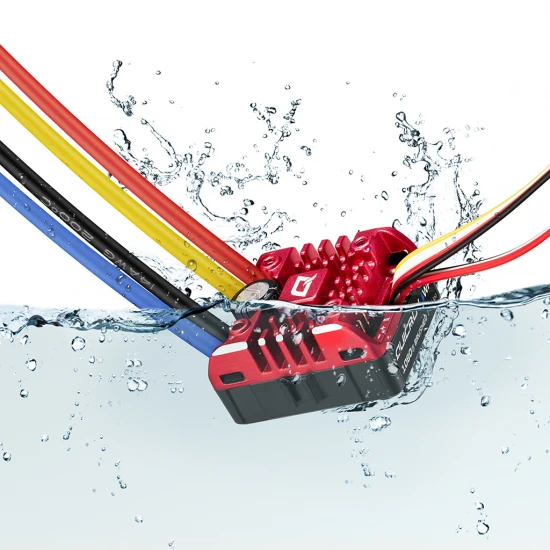

The Quicrun WP 1080G2 is fully waterproof to IP67 standards, this a great step forward for all weather RC Rock Crawler applications.
Features
- 4 Innovative real car running modes - an RC first!
- Fully IP67 waterproof design for all conditions. (Note: please clean and dry it after use for avoiding rusty connectors)
- Highly reliable electronic switch design prevents mechanical switch failure due to dirt, water, dust and etc.
- Tuneable drag brake and drag brake rate for different vehicles, tracks and control feel.
- Adjustable PWM frequency combined with advanced freewheeling (/DEO) technology guarantees great throttle linearity and driving feel.
- Real time adjustable drag brake force using an AUX channel of a transmitter and the ability to switch the drag brake force anytime and anywhere on demand.
- Multiple protections: low-voltage cut-off protection, thermal protection and throttle signal loss protection.
- Separate programming port to easily connect the LED program card to the ESC.
- Single-button ESC programming and factory reset.
- ESC programming via Hobbywing LED program card.
Specifications
Application: 1/10th Rock Crawler
Motor Type: Brushed Motor (540 / 555 size motors)
Cont./Peak Current: 80A/400A
Input Voltage: 2-3S LiPo/5-9S Cell NiMH
BEC Output: 6V / 7.4V / 8.4V @ 4A (Switch-mode)
Wires & Connectors: Black-14AWG-200mm / Red-14AWG-200mm
Programming device: LED program box
Size: 37.2 x 31.9 x 18.4mm
Weight (w/ wires): 70.2g
Key Info:
- Brand: Hobbywing
- Part No: HW30120202
- Barcode: 6938994413152
- Motor Type: Brushed
- LiPo Compatible: Yes
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
Questions & Answers
This comes with an XT60 connector.
You need to use this one HW30501003 it will only work with that.
They do not list it but I would not go any lower than a 15t 540.
Yes this one HW30501003
no this does not come with a program card.
