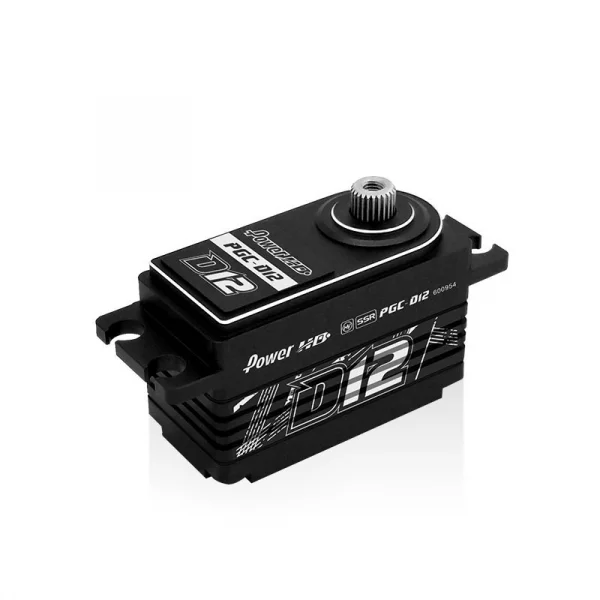

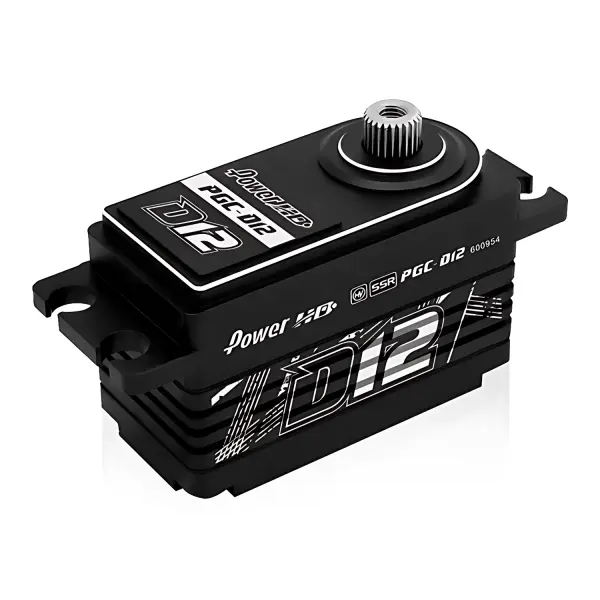

Power HD D12 Low Profile Alloy Case Servo - 12.5kg - 0.059s

The Power HD D12 is a low-profile, HV digital servo engineered for fast response and dependable torque in a compact footprint. Its aluminium alloy case enhances rigidity and heat dissipation, while a coreless motor, titanium & steel gear train, and dual ball bearings provide smooth, precise control with excellent durability. Delivering up to 12.5 kg-cm torque and a rapid 0.059 s transit time at 7.4V, the D12 balances speed and strength for demanding applications.

Key Features

• HV, coreless, digital architecture
• Aluminium alloy case
• Titanium & steel gear train
• Dual ball bearings
• Low-profile design: 41.0 x 20.0 x 26.3 mm

Specifications

• Torque (6.0V): 9.5 kg-cm (131.9 oz/in)
• Torque (7.4V): 12.5 kg-cm (173.6 oz/in)
• Speed: 0.068 sec (6.0V) | 0.059 sec (7.4V)
• Operating voltage: 6.0–7.4 V DC
• Weight: 55.0 g (1.94 oz)
• Bearing type: Ball Bearing x 2
• Motor type: Coreless motor
• Gear type: Titanium & Steel
• Operating temperature: -20°C to 60°C
• Control signal / working frequency: 1520 μs / 333 Hz
• Size: 41.0 x 20.0 x 26.3 mm (1.61 x 0.79 x 1.04 in)
• Part number: HD-D12
