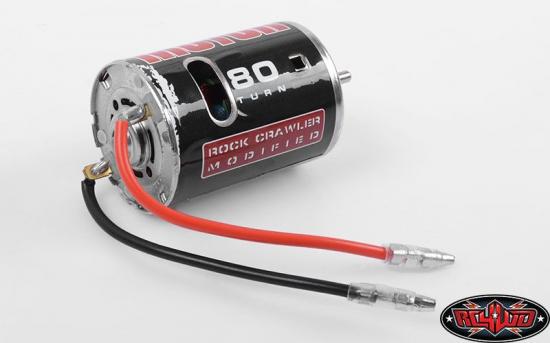

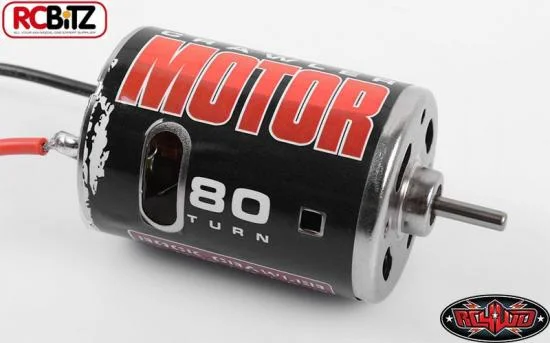

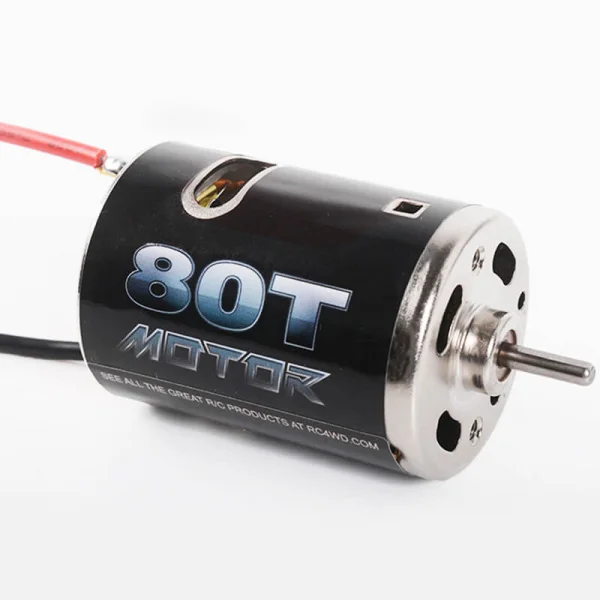

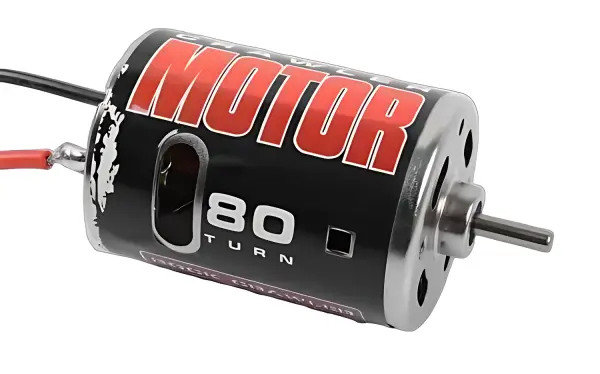

RC4WD 540 Crawler Brushed Motor 80T
Brand: RC4WD
Part No: Z-E0001
In Stock: Usually ships same day
The RC4WD 540 Crawler Brushed Motor 80T (Z-E0001) delivers ultra-smooth, slow-speed control with strong torque for rock crawling and scale driving. Built around a custom 540 steel can with a chrome-plated finish, this 50mm-long motor is tuned specifically for precise throttle response on technical terrain.
Features
- Custom-made 540 steel case with chrome-plated finish
- Built-in capacitor to minimise glitching
- High-torque magnet and rotor
- Pre-wired with 3mm bullet connectors (Axial ESCs are typically 4mm but can be crimped up)
- Fits 3mm pinions

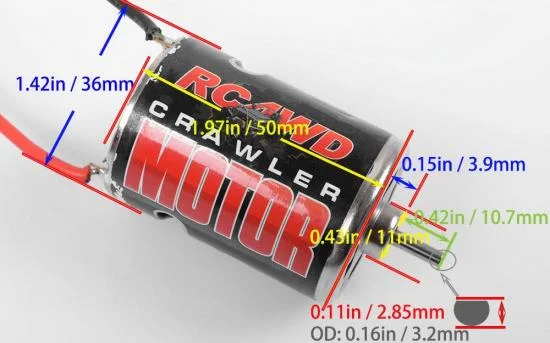

- Small footprint (50mm length)
- Tuned for rock climbing and scale driving
- Polished, non-replaceable bushings
Performance Specs (All Sizes)
- Designed operating temperature: -30°C to +80°C
- Motor end play: 0.50mm max
- Noise level: < 60 dB
Performance Specs — 80T @ 7.2V
- No-load: 5,500 RPM (±10%), 0.45 A
- Max efficiency: 4,450 RPM (±10%), 1.38 A
Suggested Compatibility
- Bully
- AX10
- Trail Finder
- SCX10 Honcho
- SCX10 Dingo
- Wraith
- Ridgecrest
What’s Included
- 1x RC4WD 540 Crawler Brushed Motor 80T
Note: RC4WD recommends using motor spray after trail runs to help keep the motor in good condition.
Secured by Stripe
Custom made to fit all popular truck such as Bully, AX10, Trail Finder, SCX10 Honcho and Dingo and Wraith and Ridgecrest. You can choose one of 5 different numbers of turns from 35t - 80t. The higher the turn cound the slower the motor but the higher the torque.
- Custom made 540 steel case
- Chrome plated case
- Build in capacitor for minimizing glith
- High torque magnet and rotor
- Pre wired with 3mm bullet connectors for easy installation, (Axial ESC are 4mm but can be crimped up.)
- Will fit all 3mm pinions, See HERE
- Small footprint (50mm long)
- Tuned for rock climbing and scale driving
- Polished Bushings (non replaceable)
Performance Specs for all sizes:
- Designed oprating temperature range: -30°C to +80°C
- Motor end play : .50mm max
- Noise level: < 60db
Performance Specs 35t:
- (At no load) RPM @ 7.2V : 12500 (±10%25), 1.25Amp Current
- (Max Efficiency) RPM @ 7.2V : 10400 (±10%25), 4.62Amp Current
Performance Specs 45t:
- (At no load) RPM @ 7.2V : 9500 (10%25), .95Amp Current
- (Max Efficiency) RPM @ 7.2V : 8100 (10%25), 4.29Amp Current
Performance Specs 55t:
- (At no load) RPM @ 7.2V : 8000 (±10%25), .75Amp Current
- (Max Efficiency) RPM @ 7.2V : 6800 (±10%25), 3.35Amp Current
Performance Specs 65t:
- (At no load) RPM @ 7.2V : 7000 (±10%25), .65Amp Current
- (Max Efficiency) RPM @ 7.2V : 5900 (±10%25), 2.79Amp Current
Performance Specs 80t:
- (At no load) RPM @ 7.2V : 5500 (±10%25), .45Amp Current
- (Max Efficiency) RPM @ 7.2V : 4450 (±10%25), 1.38Amp Current
What's included:
- 1x RC4WD 540 Crawler Brushed Motor (size and turn depends on your selection above)
You may want to consider some Motor Spray to help keep your motor in good condition when you return from the trails and rocks.
Key Info:
- Brand: RC4WD
- Part No: Z-E0001
- Barcode: 639302605448
