O.S. Engines MAX-46AX II 2-Stroke Glow Engine OSE15490
Brand: OS Engines
Part No: OSE15490
Usually ships next day
Customers Also Buy
Popular with customers who buy products like the O.S. Engines MAX-46AX II (7.4cc) 2-Stroke Glow Engine
Description

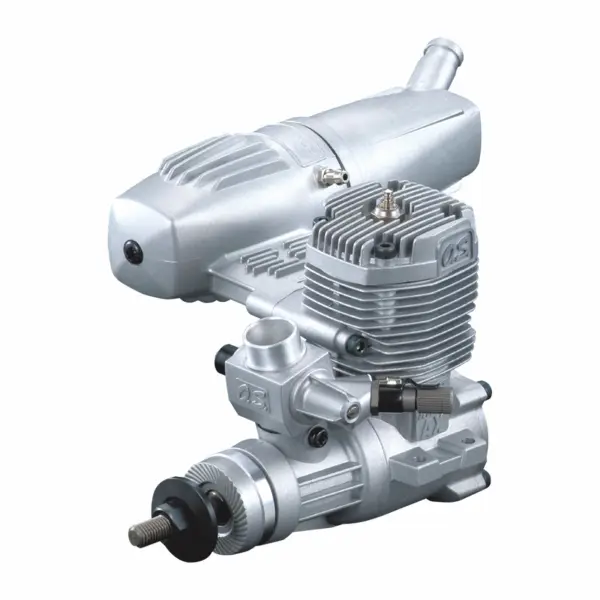

The O.S. Engines MAX-46AX II (7.4cc) 2-Stroke Glow Engine (OSE15490) is a two-stroke glow engine for model aircraft. It has a 7.45cc displacement and is designed for smooth running, easy starting and controlled throttle response. The engine is supplied with a silencer, making it a practical choice for an aircraft installation requiring a conventional glow power system.
Features
The engine uses a twin-needle carburettor with a rear-facing mixture adjustment and a twin-bearing-supported crankshaft. Its brass liner has an Advanced Bi-metallic Liner (ABL) coating, while the Schnuerle-ported cylinder and liner work with a hemispherical combustion chamber. A single-billet crankshaft and webbed crankshaft housing provide the main internal structure. The practical operating range is 2,000 to 17,000 rpm, with a stated weight of 486g including the silencer.
For operation, O.S. Engines recommends glow fuel containing 10% nitro and 18% oil. Suitable propeller sizes are listed as 10x7 through 12x7 inches, allowing the setup to be matched to the aircraft and operating requirements.
What's Included
- MAX-46AX II engine with 40K carburettor
- E-3071 silencer
- No. 6 glow plug
- Needle extension wire
- O.S. decal sheet
Required to Complete
- 10x7 to 12x7 inch propeller
- 5-litre bottle of glow fuel containing 18% oil
Secured by Stripe
Specifications
In these days of electric flight dominance, it's good to know that the hobby's premier two- and four-stroke engine manufacturer is alive and well, still producing beautiful, powerful engines and still championing the highest of standards in design and manufacture. For over 90 years O.S. engines have been favoured by pilots due to their easy starting, endearing handling, smooth running and clean throttling.
Boasting a beautifully-cast matt-finished crankcase, brass liner with ABL coating, a sturdy, single billet crankshaft with twin bearings and a twin needle carb with rear-facing mixture adjustment, this is an engine that looks good and runs beautifully.
Fit a smooth-running O.S two-stroke to your latest build and you'll not only be adding variety to your R/C life, you'll be adding guaranteed satisfaction and a hint of nostalgia.
Specification:
| Recommended Fuel (5ltr): | 10% Nitro / 18% Oil |
| Recommended Propeller (ins): | 10x7-12x7 |
| Practical RPM: | 2000-17000 |
| Weight (g): | 486 (inc. silencer) |
| Displacement (cc): | 7.45 |
| Displacement (cu.in.): | 0.455 |
O.S. Engines MAX-46AX II (7.4cc) 2-Stroke Glow Engine Features:
- Safety-conscious rear-facing needle design.
- Twin needle carburettor.
- Twin bearing supported crankshaft.
- Advanced Bi-metallic Liner (ABL) coating.
- Schnuerle ported cylinder and liner.
- Efficient hemispherical combustion chamber.
- Tough & rigid single billet crankshaft.
- Ultra-tough webbed crankshaft housing.
- Easy starting and smooth running.
- Full spares availability.
- 1x MAX-46AX II with 40K carburettor).
- 1x E-3071 silencer.
- 1x No.6 glow plug.
- 1x Needle extension wire
- 1x O.S. decal sheet.
- 1x 10x7 to 12x7" propeller.
- 1x 5lt bottle of glow fuel (18% oil).
Key Info:
- Brand: OS Engines
- Part No: OSE15490
- Barcode: 4531028022744
- Format: Nitro 2 Stroke
