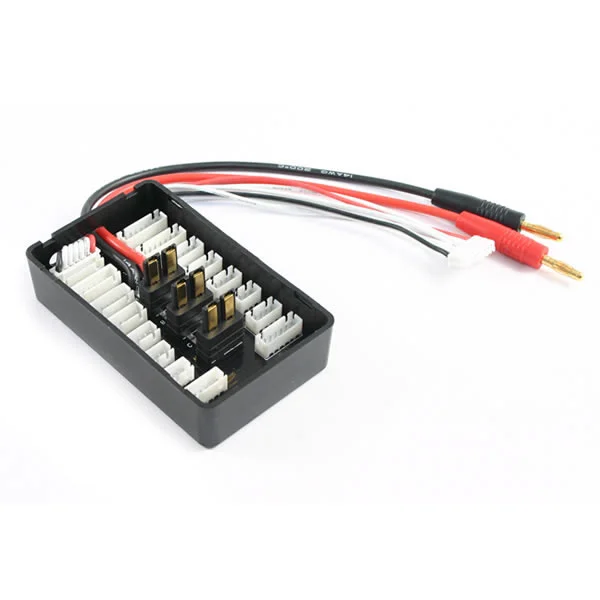

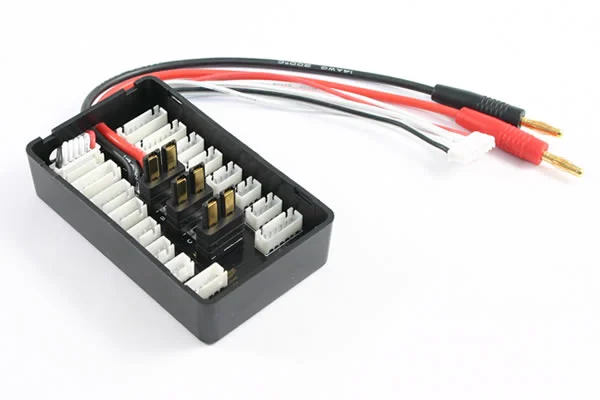

Parallel Charging Board (Paraboard) - Traxxas / XH
Brand: eTronix
Part No: ET0292
Out Of Stock
Request Stock NotificationThe eTronix ET0292 Parallel Charging Board (Paraboard) enables simultaneous parallel charging of multiple lithium batteries with a suitable balance charger. Designed to save time at the bench, it supports from 1 to 3 packs and accommodates 2S to 6S configurations.
Key Features
- Charge 1–3 lithium battery packs in parallel to reduce overall charge time
- Supports 2S–6S via three sets of balance ports (2S–6S) and three main charge plugs
- Ports are wired in parallel, allowing the main plug and balance port to be matched as needed
- Traxxas-style main connectors and XH balance ports (Traxxas / XH); suggested compatibility with packs using these connectors
- Up to a 30A charge rate (20A continuous)
Construction & Performance
- High-quality components with a 2 oz copper PCB
- Heavily tinned main power circuit to handle high current
- Tested to 20 A continuous current; safe for short-term loads up to 30 A (approximately 10–30 minutes)
Important Notes
- For use with a balance charger
- Ensure all connected batteries are the same cell count before charging in parallel
- Each board can charge up to three batteries from 2S to 6S
Secured by Stripe
The ParaBoard is to be used with a balance charger to simultaneously charge multiple lithium batteries in parallel. By using this method you can significantly save time on the battery charge process. It can be used to connect between 1 to 3 packs of batteries in parallel charge.
Each board has three set balance ports, from 2S-6, and three plugs. Since these ports and connectors are arranged in parallel, a plug and a balance port can be randomly matched for battery charge. The ParaBoard can be used for charging up to three batteries at the same time.
ParaBoard is made of selected high quality components. The PCB is made of two ounce copper and the main power circuit is heavily tinned to allow the use of high current. ParaBoard products have been fully tested under 20 A continuous current, and is safe to be load at 30A for a short time (10 - 30 minutes).
The board is already wired in parallel, all you need to do is plug your batteries’ charge and balance connectors to the board - ensuring that all the batteries are the same cell count. Each board can charge up to three batteries, from 2S up to 6S, at up to a 30A charge rate (20 Amp Continuous)
Key Info:
- Brand: eTronix
- Part No: ET0292
- Barcode: 5055323951268
